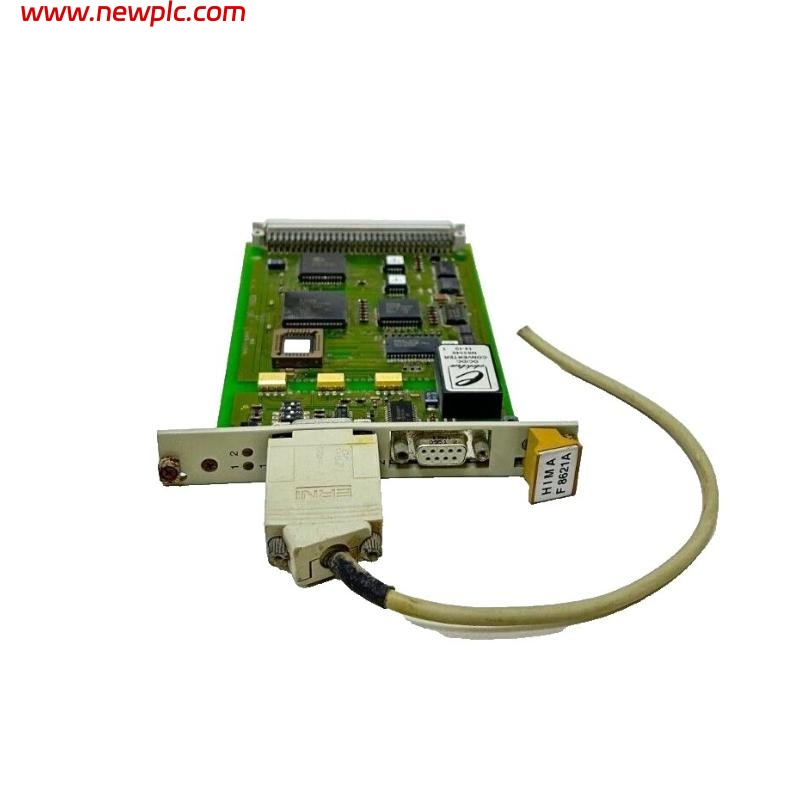

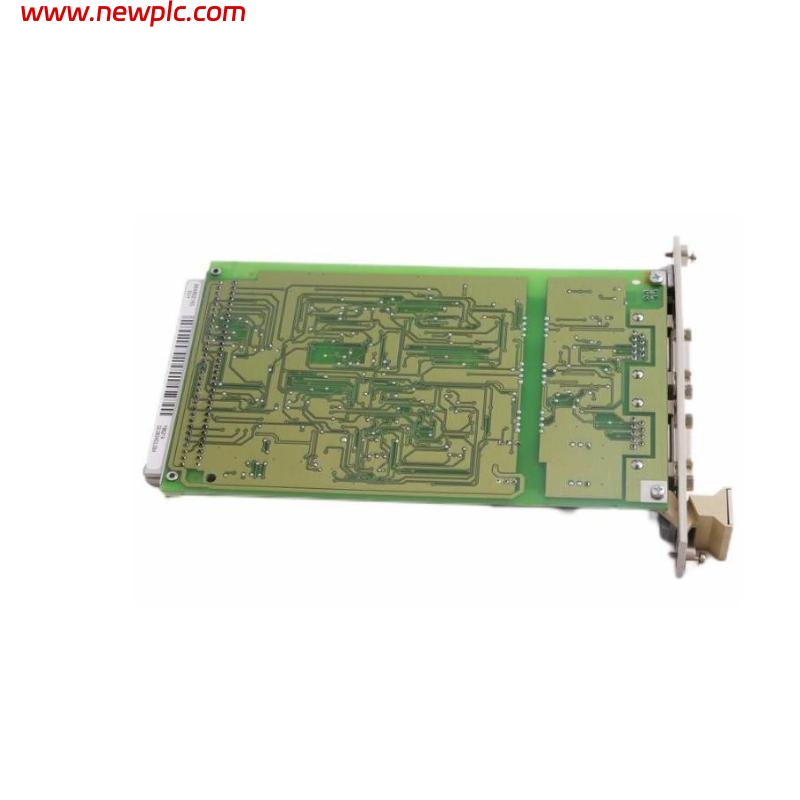

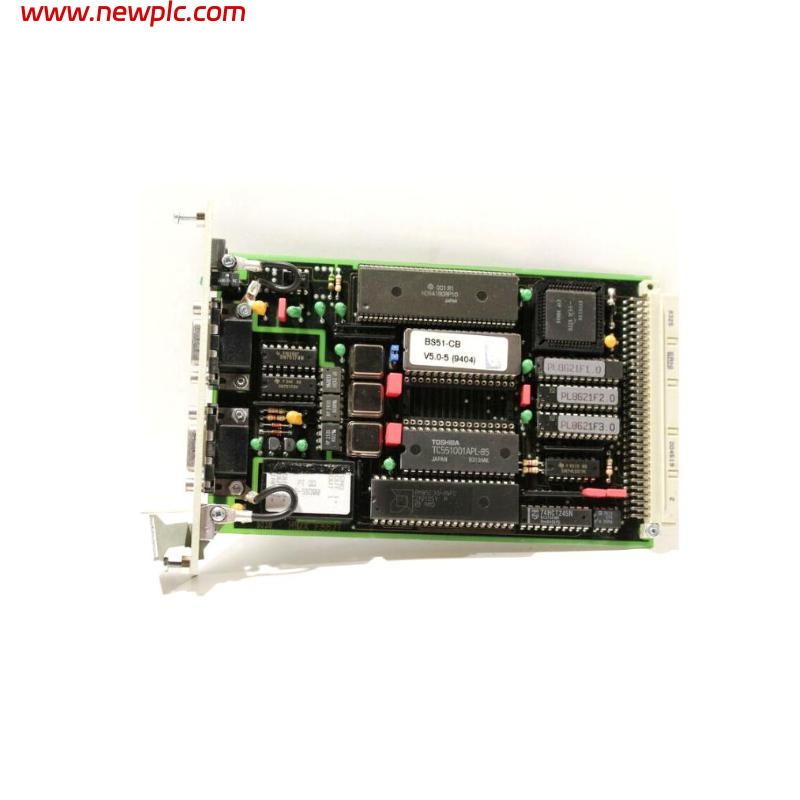

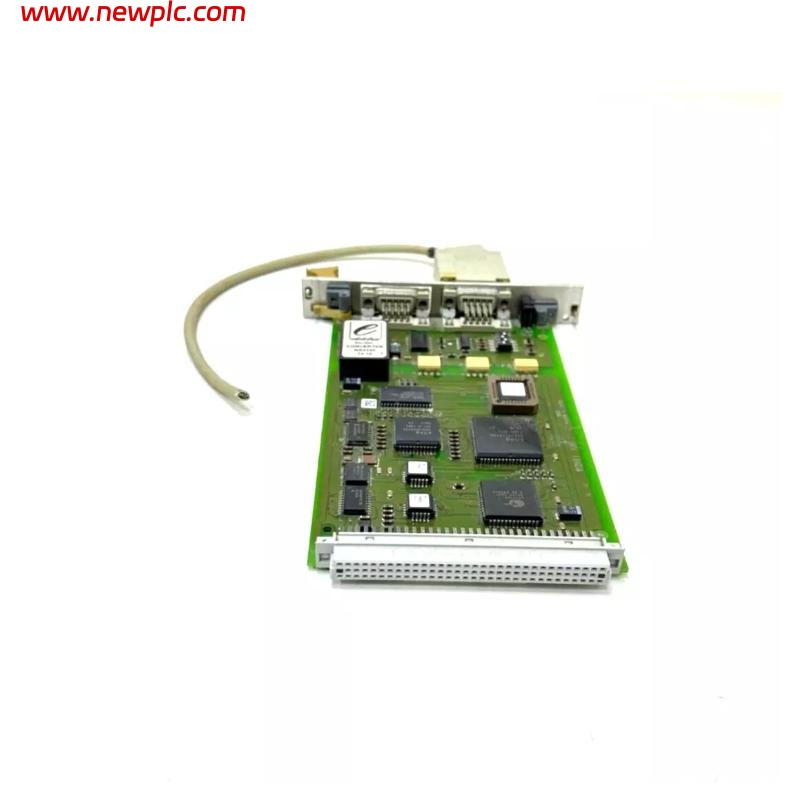

HIMA F8621 Coprocessor Module

FAQ

Q1: What is the main function of the HIMA F8621 module?
A1: It is a coprocessor module with its own processor and memory, designed to accelerate data processing and communication in the PES H51q system.

Q2: What processor does the module use?
A2: The module uses an HD 64180 microprocessor running at 10 MHz.

Q3: What type of communication interfaces are provided?
A3: It provides two half-duplex RS-485 interfaces with galvanic isolation and a dedicated communication processor.

Q4: What baud rates does the RS-485 interface support?
A4: It supports baud rates from 300 up to 57600 bps, and can also adopt the settings from the central unit DIP switches.

Q5: What are the memory features of the module?
A5: The memory includes 384 kB of CMOS-RAM and EPROM, with RAM backed up by battery through the F7131 module to prevent data loss on power failure.

Q6: What is the power requirement of the module?
A6: It operates at 5 V DC and consumes approximately 360 mA.

Q7: What are the physical dimensions of the HIMA F8621?
A7: The module measures 200 × 100 × 50 mm and weighs approximately 1.2 kg.

Q8: How much rack space does the module occupy?
A8: The module occupies a width of 4 TE in the rack.
