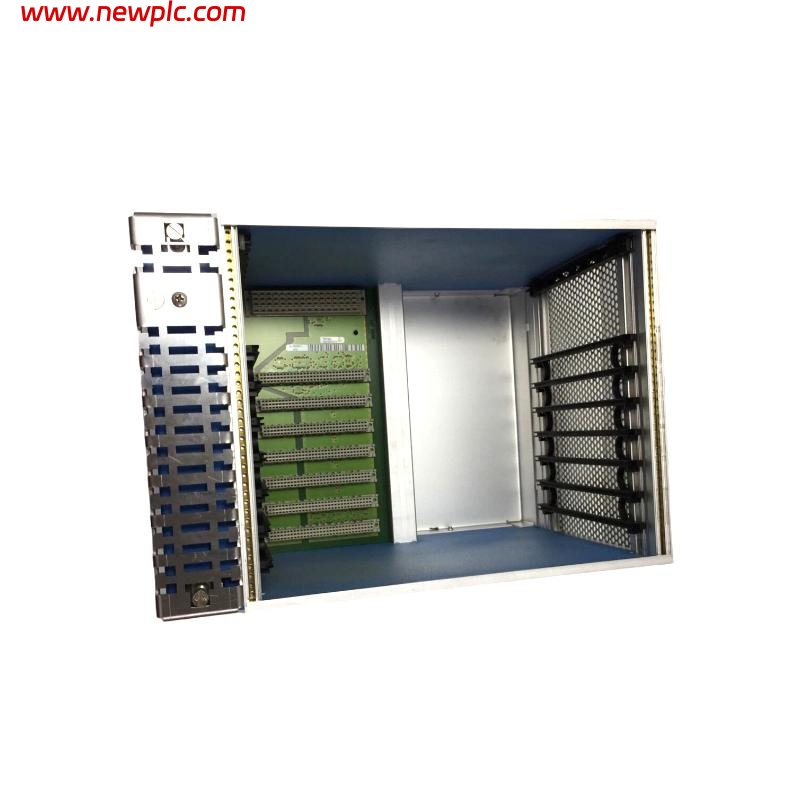

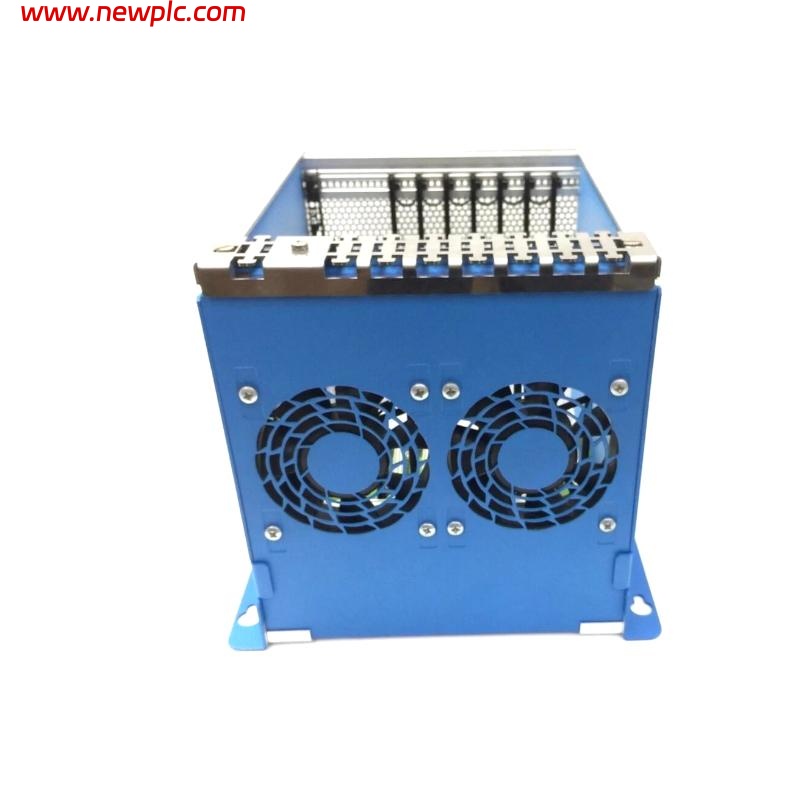

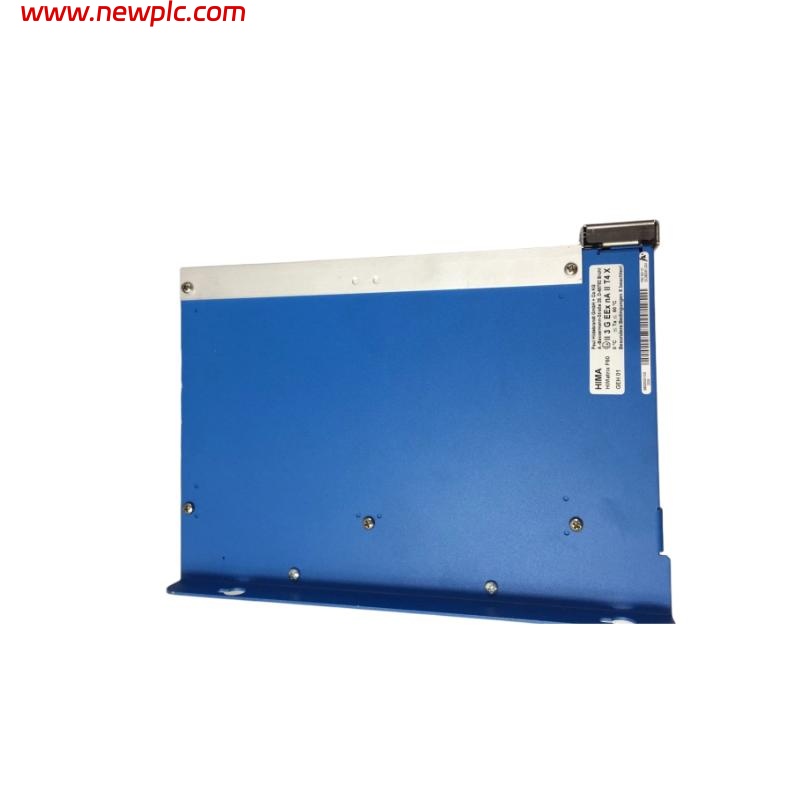

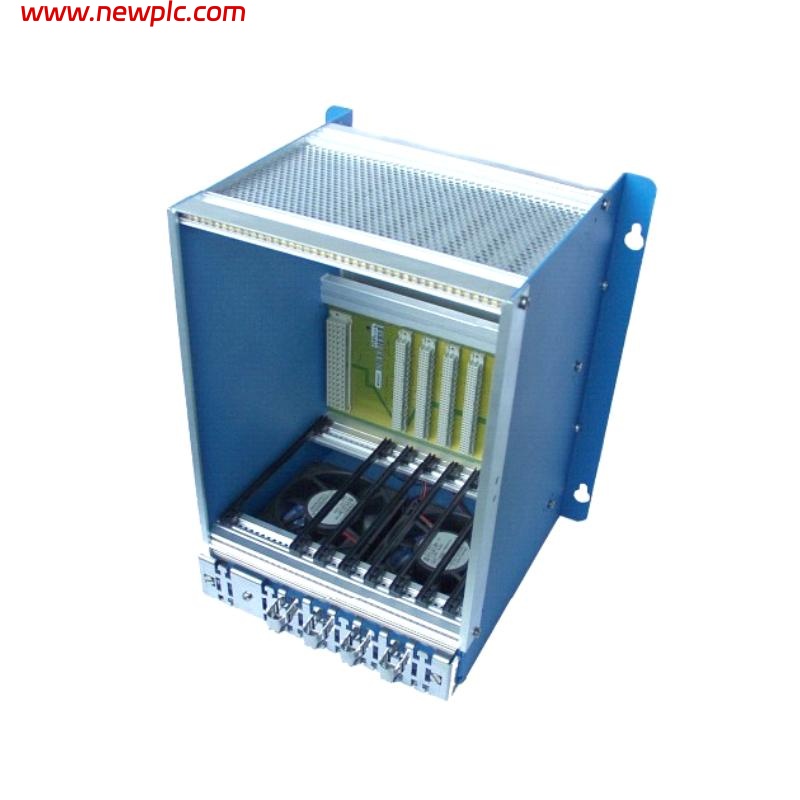

HIMA HIMatrix F60 GEH 01 Safety-Related Controller Subrack

FAQ

Q1: What is the main purpose of the GEH 01 subrack?
A1: The GEH 01 subrack is designed for installing HIMatrix F60 modular safety controller systems and serves as a structural component of the system.

Q2: Does the GEH 01 itself perform any safety function?
A2: No, the GEH 01 itself does not perform any safety function. It is a platform for mounting safety-related modules.

Q3: How many modules can be installed in the GEH 01?
A3: The GEH 01 supports up to 8 modules: 1 for the power supply, 1 for the central processor, and 6 I/O modules.

Q4: In what environmental conditions can the GEH 01 operate?
A4: It operates in temperatures from 0 to +60°C, with humidity less than 95% (non-condensing), and protection class IP20, suitable for industrial control environments.

Q5: What are the power supply requirements for the GEH 01?
A5: The GEH 01 requires a 24 VDC power supply, preferably of SELV or PELV type.

Q6: Is the GEH 01 suitable for installation in hazardous area Zone 2?
A6: Yes, the GEH 01 can be installed in Zone 2, provided that specific installation conditions are met and the enclosure meets at least IP54 protection.

Q7: What is the recommended maintenance interval for the fans?
A7: For temperatures below 40°C, fans should be replaced every 5 years. For higher temperatures, every 3 years is recommended.

Q8: What is the material and weight of the GEH 01?
A8: The subrack is made of anodized aluminum and weighs approximately 1.5 kg.

F60 GEH 01 GEH 01 HIMA Safety-Related Controller Subrack
