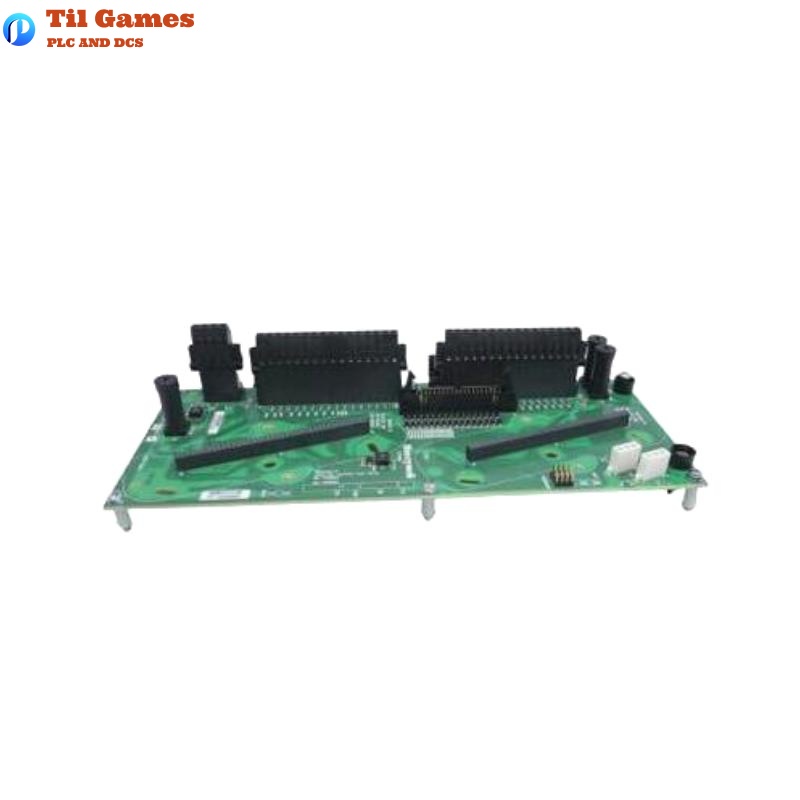

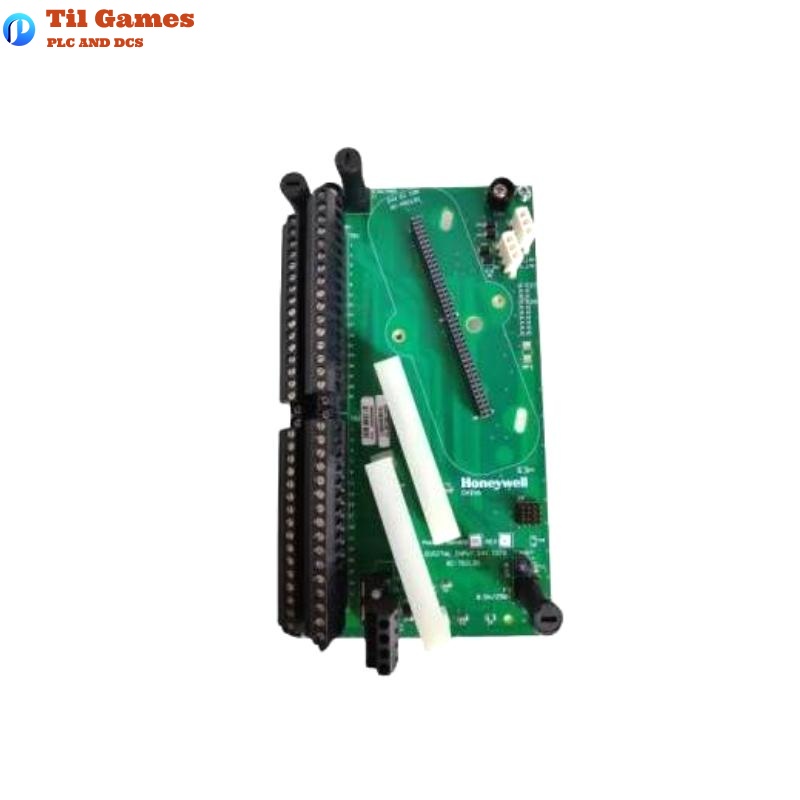

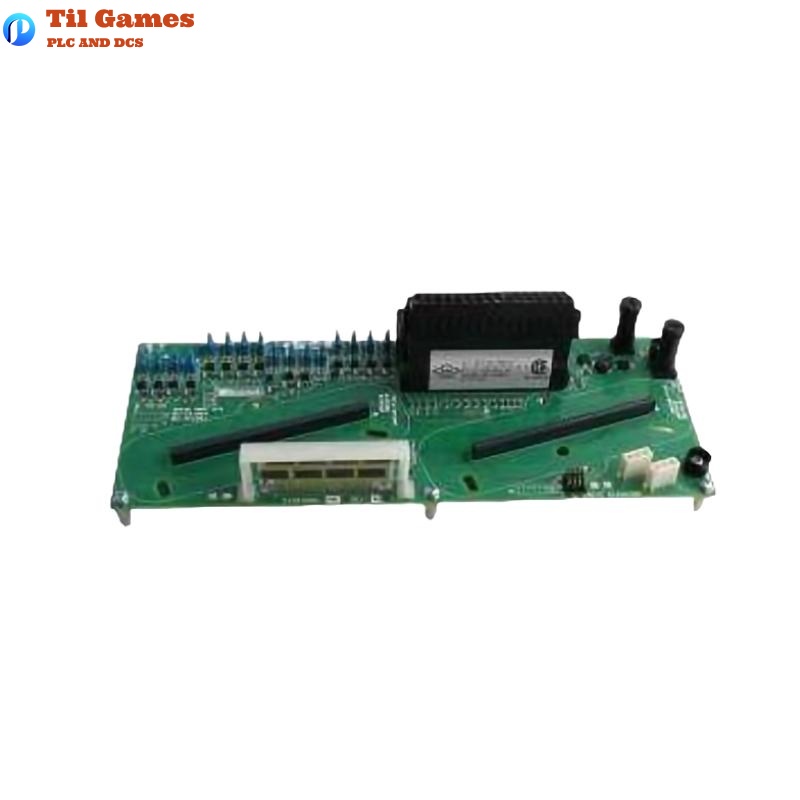

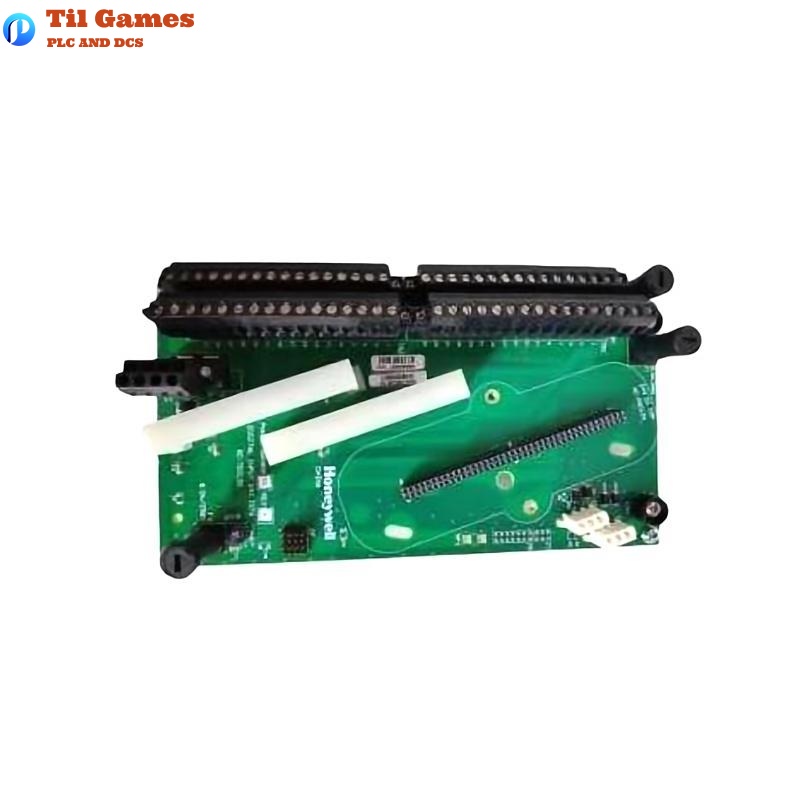

Honeywell 8C-TDOD61 51306973-175 Series 8 C300 Controller Digital Output IOTA

FAQ – Honeywell 8C-TDOD61

Q1: What is the output type of the 8C-TDOD61 module?
A1: It uses a current sinking output type for 24VDC control applications.

Q2: How many digital outputs does the module support?
A2: The module supports 32 output channels.

Q3: What is the maximum load voltage and current per channel?
A3: Each channel supports up to 30 VDC and 0.1 A maximum.

Q4: Does this module support redundancy?
A4: Yes, the 8C-TDOD61 is designed for redundant configurations.

Q5: Is there internal protection for short circuits?
A5: Yes, each group of 8 channels is protected by a fuse, with 4 fuses total for 32 channels.

Q6: What is the typical turn-on and turn-off time?
A6: The module has a maximum switching time of 10 milliseconds.

Q7: Is galvanic isolation provided?
A7: Yes, galvanic isolation is ensured between the system and field when external power is used.

Q8: What are the physical dimensions and weight?
A8: The dimensions are 130 × 30 × 145 mm and it weighs 0.45 kg.

51306973-175 8C-TDOD61 Digital Output IOTA Honeywell Series 8 C300 Controller
