Technical Specifications
| Parameter | Value |
|---|---|

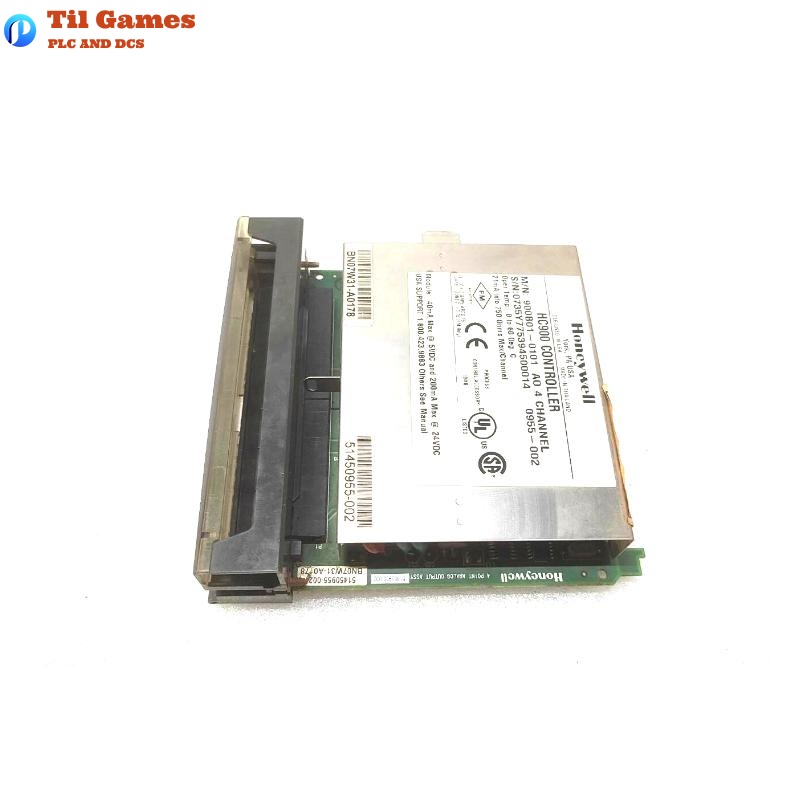

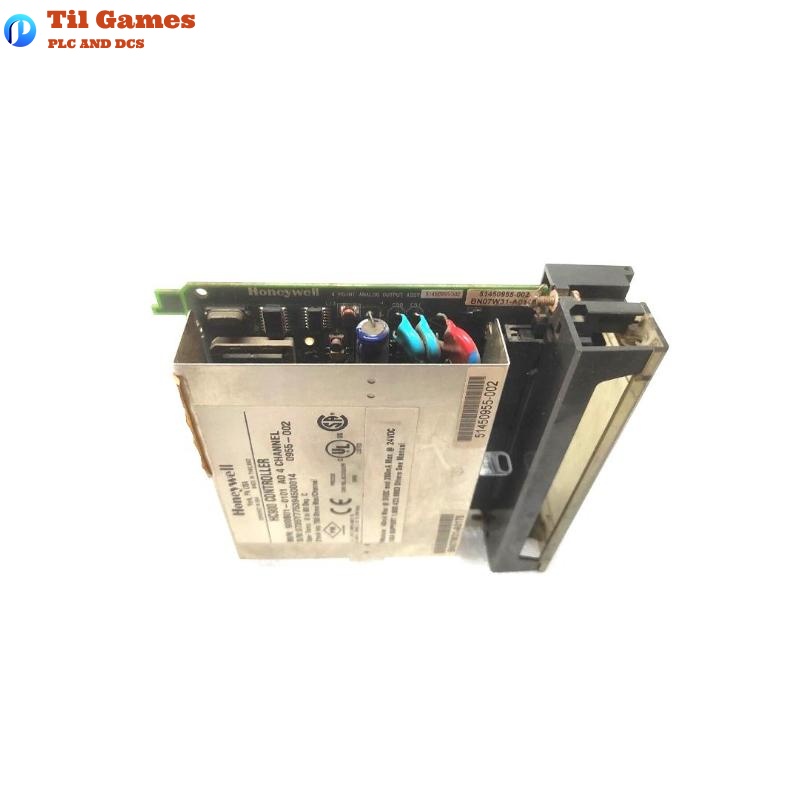

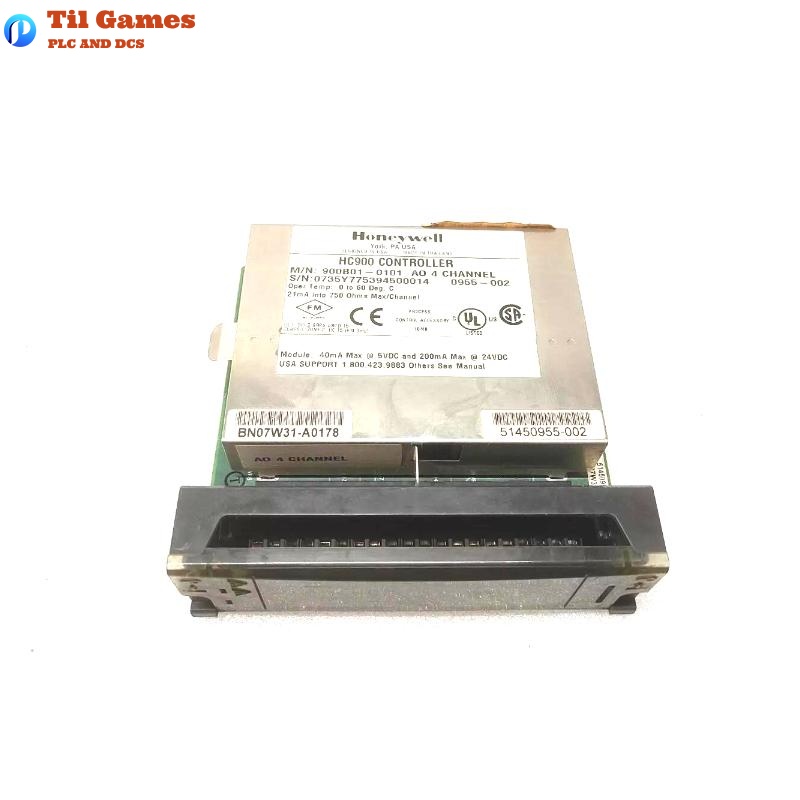

| Module Model | Honeywell 900B01-0101 |
| Output Channels | 4 isolated channels |
| Output Current Range | 0 to 21.8 mA, user configurable |
| Minimum Detectable Current | > 3.5 mA |
| Max Load Resistance | 750 Ω |
| D/A Resolution | 12 bits |
| Accuracy | ±0.1% of full scale at reference conditions |
| Max Modules per Rack | 10 (up to 12 with derating) |
| Isolation (Channel-to-Channel) | 500 VDC |
| Isolation (to Logic) | 600 VDC |
| Diagnostics | Monitoring of calibration, configuration, +24V supply |
| Output Feedback | Yes, current feedback to controller |
| Calibration | Redundant factory + field calibration supported |
| Power Requirement (5V) | Max 40 mA |
| Power Requirement (24V) | Max 200 mA |
| Dimensions | 137 mm x 35.6 mm x 137.16 mm |
| Weight | 0.397 kg |
FAQ
FAQ
Q1: How many outputs does the 900B01-0101 module support?
A1: It supports 4 independent current outputs, each configurable from 0 to 21.8 mA.
Q2: Are the output channels isolated from each other?
A2: Yes, each output channel is isolated at 500 VDC.
Q3: Can the module be inserted or removed under power?
A3: Yes, it supports hot-swap capability. Field power must be disconnected before terminal block removal.
Q4: Does the module offer output current feedback?
A4: Yes, it provides output current verification back to the controller.
Q5: What is the maximum load resistance per output?
A5: Up to 750 ohms is supported.
Q6: What happens if communication with the controller is lost?
A6: A user-specified failsafe value will be output in such cases.
Q7: What industries is this module suitable for?
A7: It is ideal for industries requiring precise analog control such as chemical, power, water treatment, and pharmaceuticals.
Q8: What are the physical dimensions of the module?
A8: It measures 137 mm in height, 35.6 mm in width, and 137.16 mm in depth.
