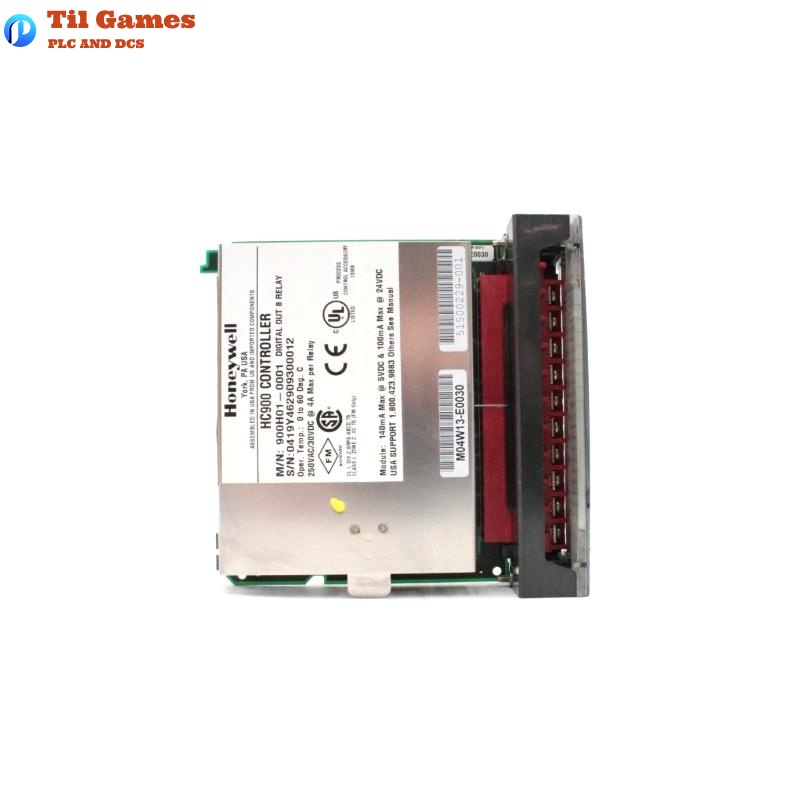

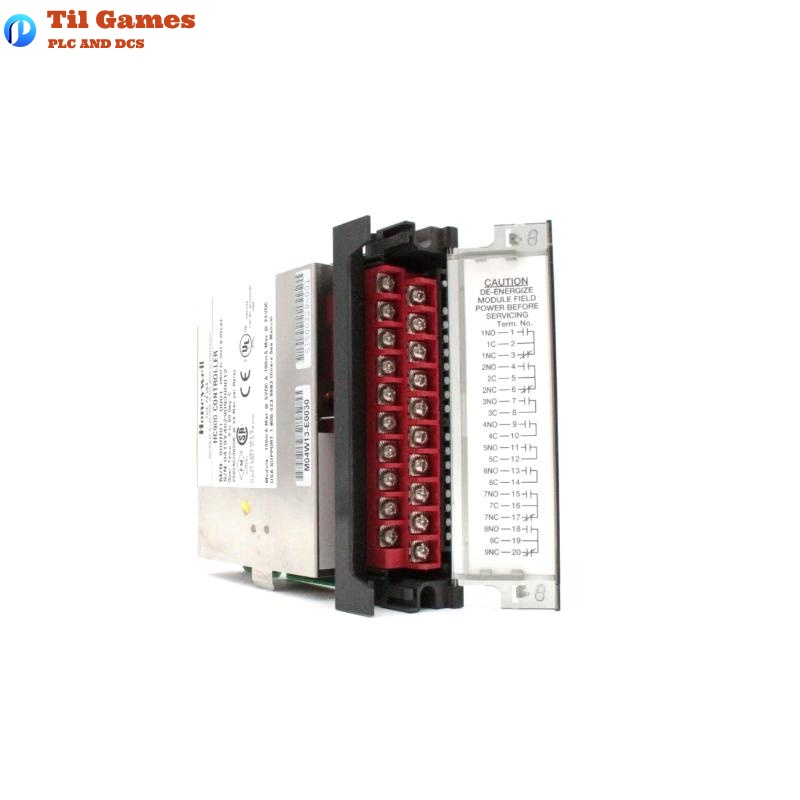

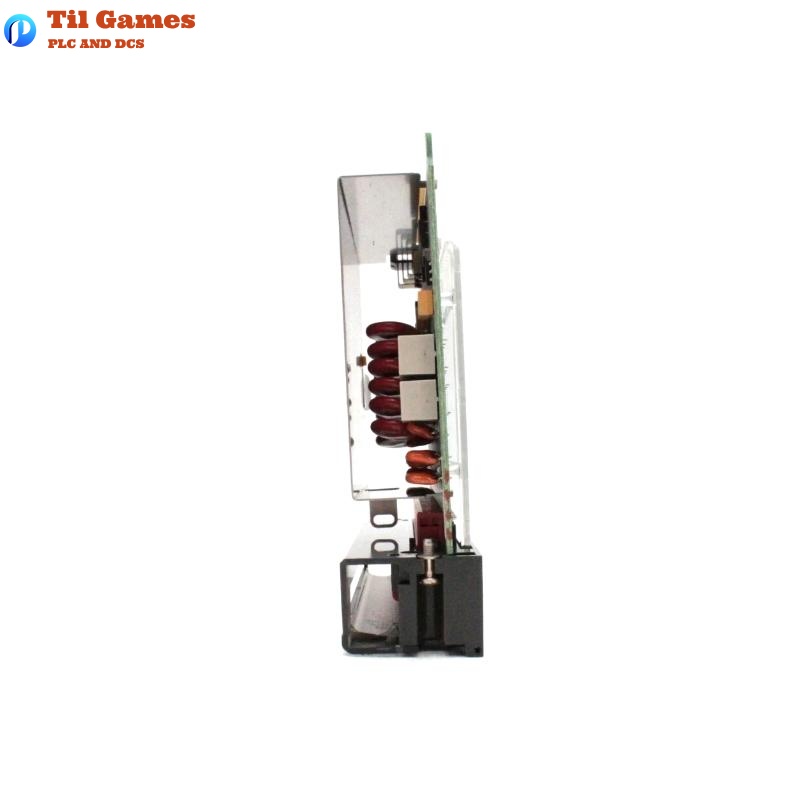

Honeywell 900H01-0001 Relay Output Module

Frequently Asked Questions (FAQ)

Q1: What is the total number of relay outputs in the 900H01-0001 module?
A1: The module includes 8 relay outputs – 4 Form A and 4 Form C types.

Q2: What is the maximum resistive load each relay can handle?
A2: Each relay supports up to 4A at 240VAC or 30VDC resistive load.

Q3: Are the relays in this module galvanically isolated?
A3: Yes, both relay-to-relay and relay-to-logic isolations are provided.

Q4: What is the expected mechanical life of the relays?
A4: The mechanical life expectancy is 50 million operations at 180 cpm.

Q5: Does this module support fuse protection?
A5: The module itself does not include internal fuses. External fuses should be installed for each output.

Q6: What are the typical response times of the relays?
A6: OFF-to-ON is ≤11 ms, and ON-to-OFF is ≤8 ms.

Q7: Is there any limit to the number of these modules per rack?
A7: No specific limit is defined; however, power and thermal considerations must be met.

Q8: What is the module’s size and weight?
A8: The dimensions are 137 x 35.6 x 137.16 mm, and the weight is 0.425 kg.
