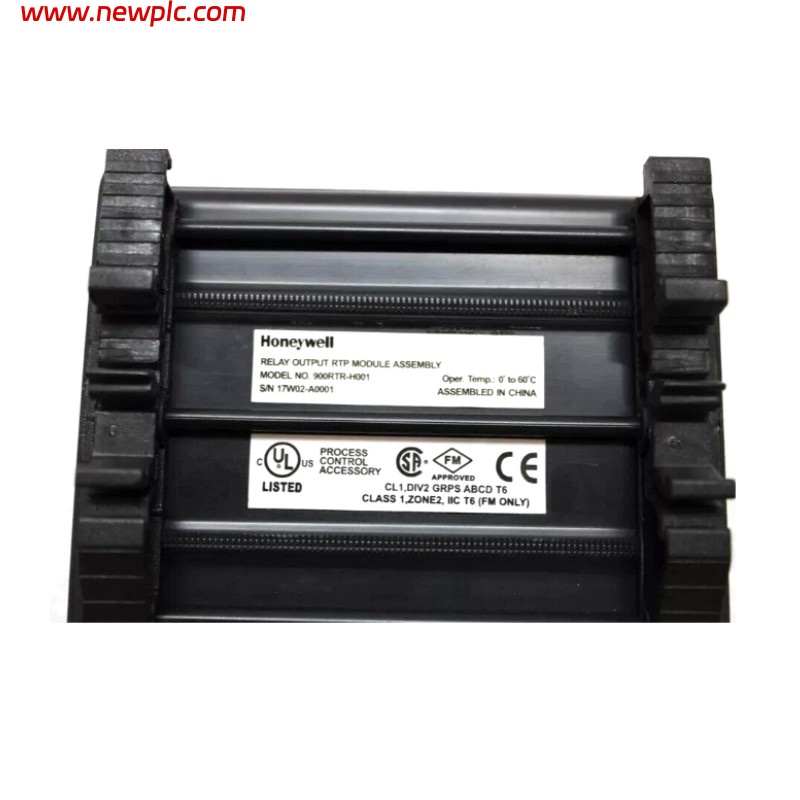

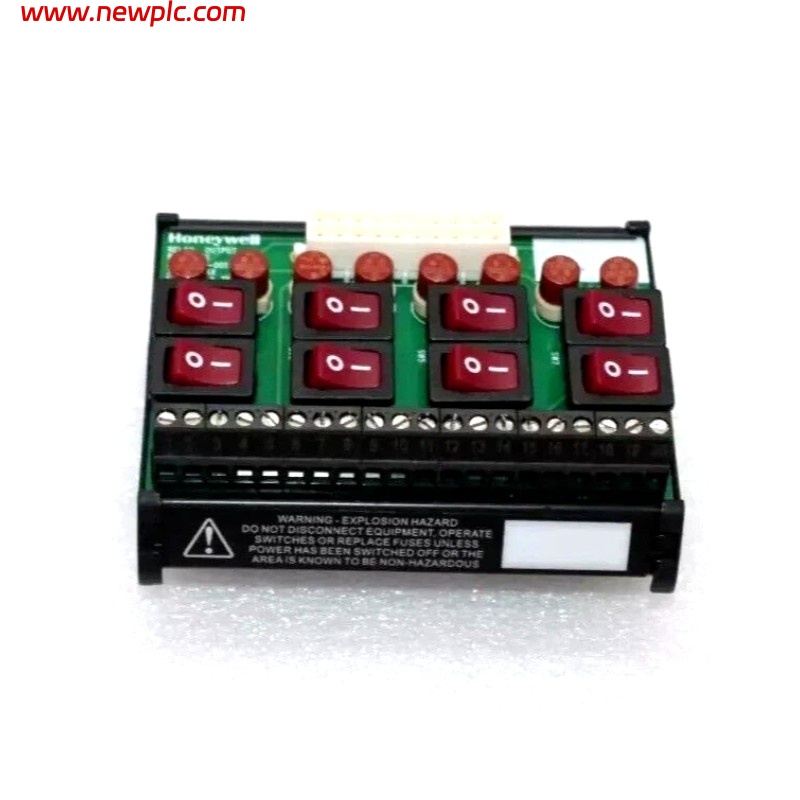

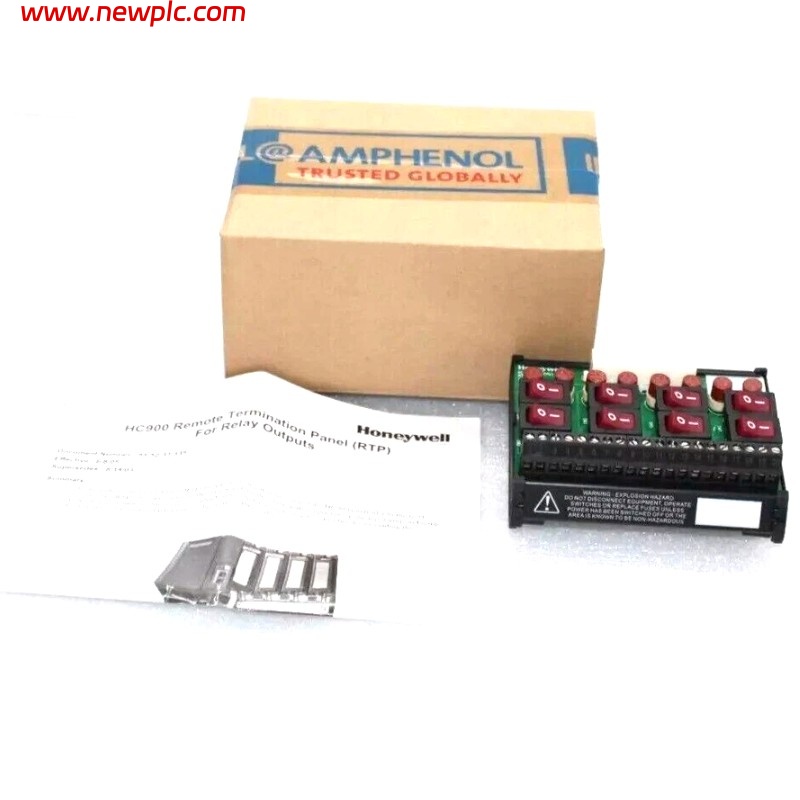

Honeywell 900RTR-H001 Relay Output RTP Module Assembly

FAQ

• Q: Which control systems does this module support?
  A: It is compatible with Honeywell RMP/RTP series control systems and can be directly inserted into the RTP bus.

• Q: What is the maximum load of the relay output?
  A: Maximum load is 2A @ 30 VDC.

• Q: What is the response time of the module?
  A: Typical response time is less than or equal to 10 ms.

• Q: What is the operating temperature range?
  A: Operating temperature range is -20°C to +60°C.

• Q: How is the module installed?
  A: The module uses standard DIN rail mounting and can be directly fixed on the rail without additional brackets.

• Q: What voltage does the module support?
  A: Rated operating voltage is 24 VDC.

• Q: Is the module protected against dust or moisture?
  A: Protection rating is IP20, suitable for indoor dry environments.

• Q: How to troubleshoot if the relay fails?
  A: Check whether the supply voltage is normal, the output load does not exceed rated capacity, and the RTP bus connection is stable.

900RTR-H001 Honeywell Honeywell 900RTR-H001 Relay Output RTP Module Assembly
