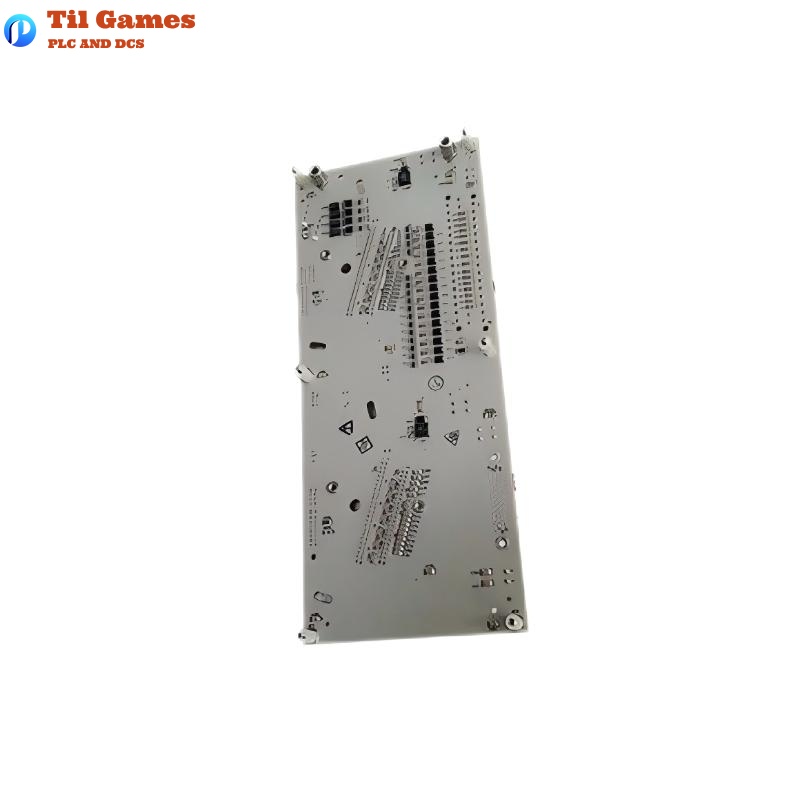

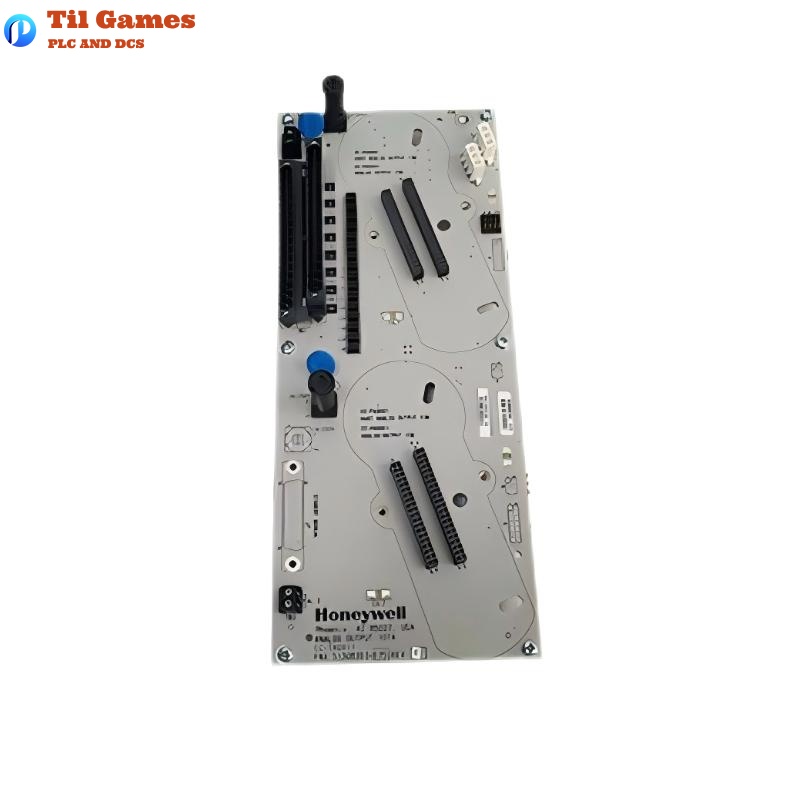

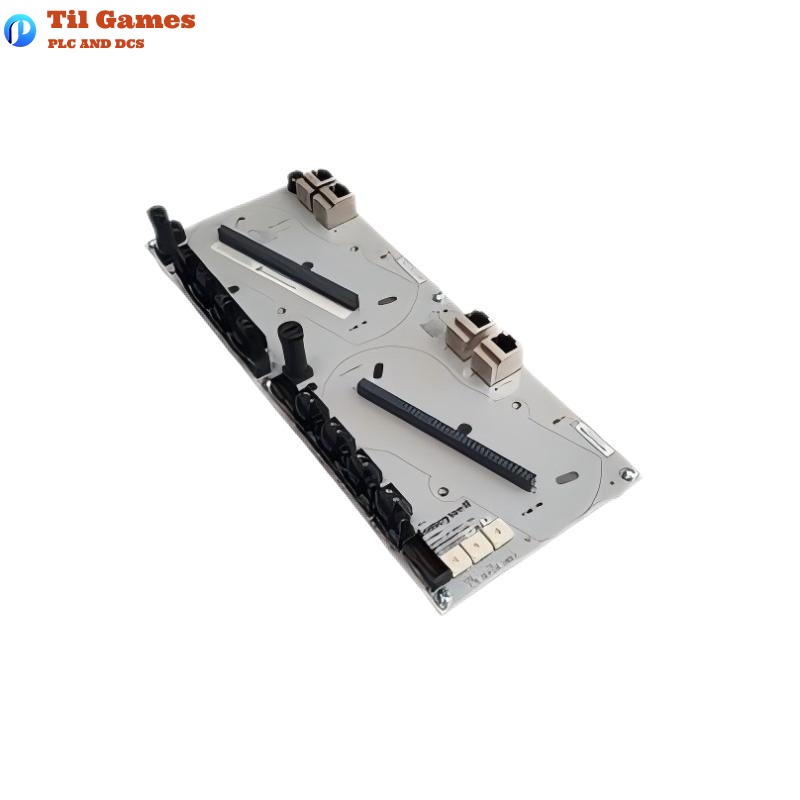

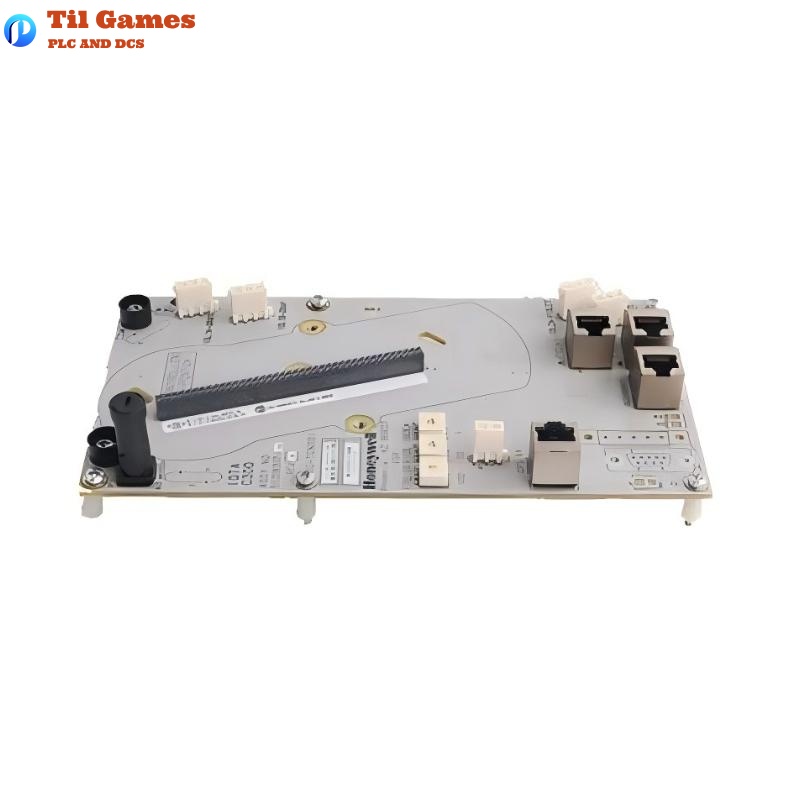

Honeywell CC-GDIL21 51306319-175 Digital Input Module

Frequently Asked Questions (FAQ)

Q1: How many input channels does the CC-GDIL21 module support?
A1: It supports 32 individual digital input channels.

Q2: What is the input voltage range for signals?
A2: The module accepts signals within 18 to 30 VDC.

Q3: Does the module provide input isolation?
A3: Yes, it uses optical isolation rated at 1500 VAC RMS or ±1500 VDC.

Q4: What are the ON/OFF sensing thresholds?
A4: ON: ≥13 VDC or ≥3 mA; OFF: ≤5 VDC or ≤1.2 mA.

Q5: Is redundancy supported?
A5: Yes, it supports non-redundant configurations and can be used in redundant systems (e.g., with CC-TDIL11).

Q6: What is the input impedance?
A6: Each input channel has 4.2 kΩ impedance.

Q7: What is the signal detection delay?
A7: The absolute delay across the input is 5 ms ± 20%.

Q8: What are the physical dimensions and weight?
A8: Dimensions: 125 mm × 40 mm × 130 mm; Weight: 0.5 kg.
