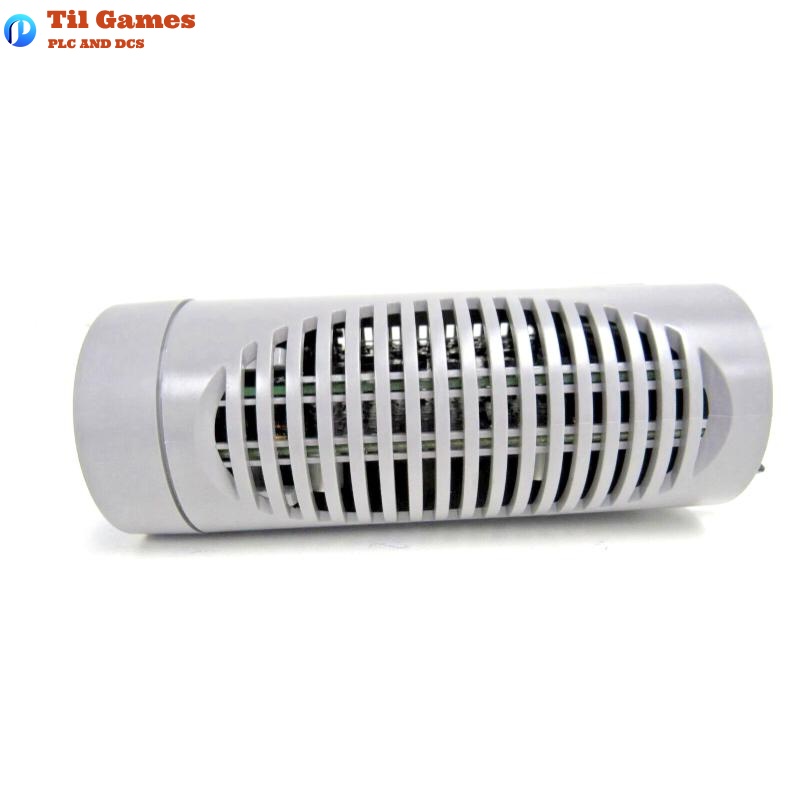

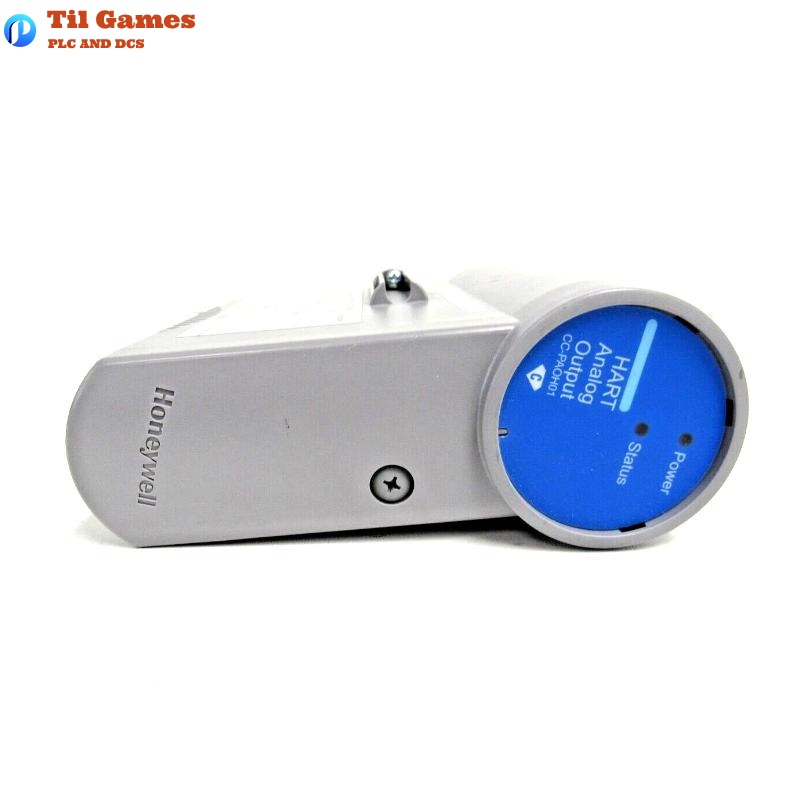

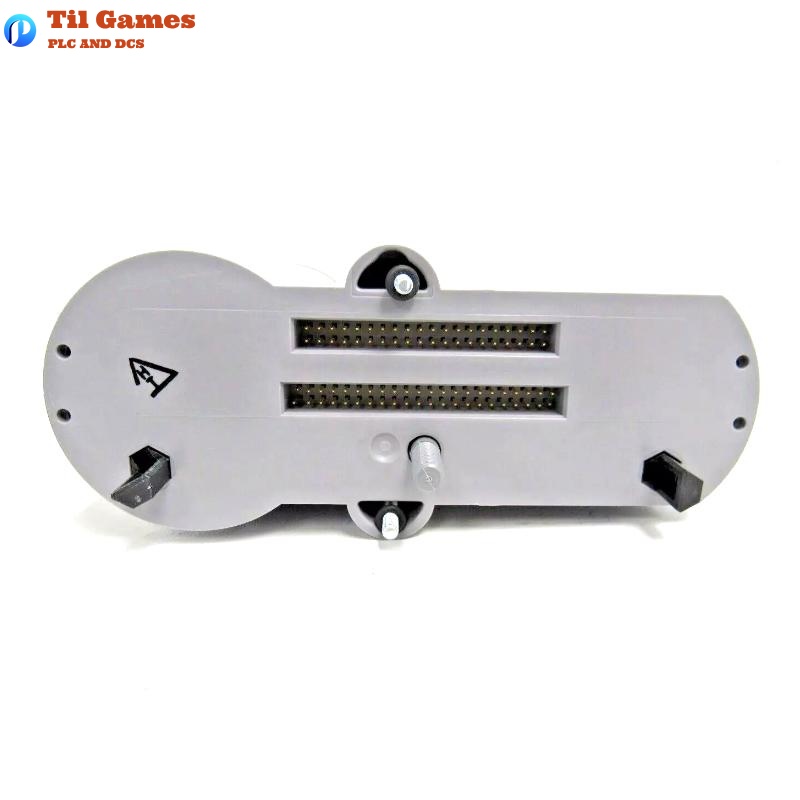

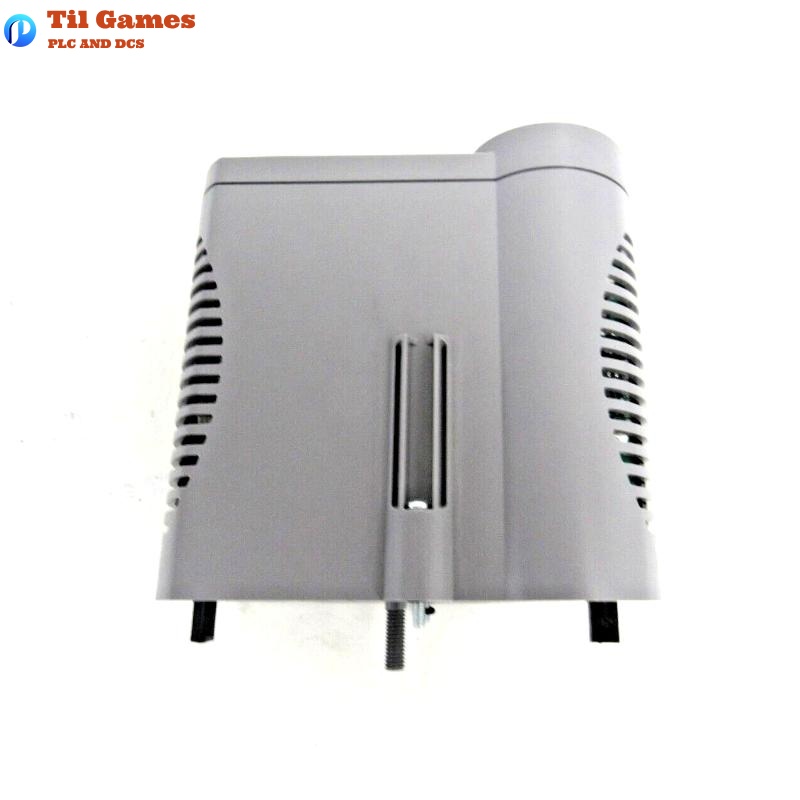

Honeywell CC-PAOH01 51405039-175 Series-C HART Analog Output Module

Frequently Asked Questions (FAQ)

Q1: What is the main function of the CC-PAOH01 module?
A1: It provides 16 channels of 4-20 mA analog current output and supports HART protocol, ideal for actuators and recorders.

Q2: Is redundancy supported?
A2: Yes, it supports redundancy with appropriate IOTA modules like CC-TAOX11.

Q3: Does it support HART communication?
A3: Yes, HART protocol is supported for status, configuration, and multivariable data.

Q4: What happens to output if the module fails?
A4: With FAILOPT, each channel can be configured to either hold last value or go to a safe value (e.g., 0 mA).

Q5: Does the module provide open wire detection?
A5: Yes, each channel has open wire detection with soft failure indication.

Q6: What is the maximum load resistance it can drive?
A6: Up to 800 ohms with a 24 V power supply.

Q7: Is the response time fast enough for control applications?
A7: Yes, the module stabilizes output within 80 ms to within ±1% of the target.

Q8: What are the physical dimensions and weight? Is it cabinet-friendly?
A8: The size is 63.5 x 124.46 x 307.34 mm and weight is 0.458 kg, suitable for standard cabinet installation.

51405039-175 CC-PAOH01 Hart Analog Output Module Honeywell Series-C
