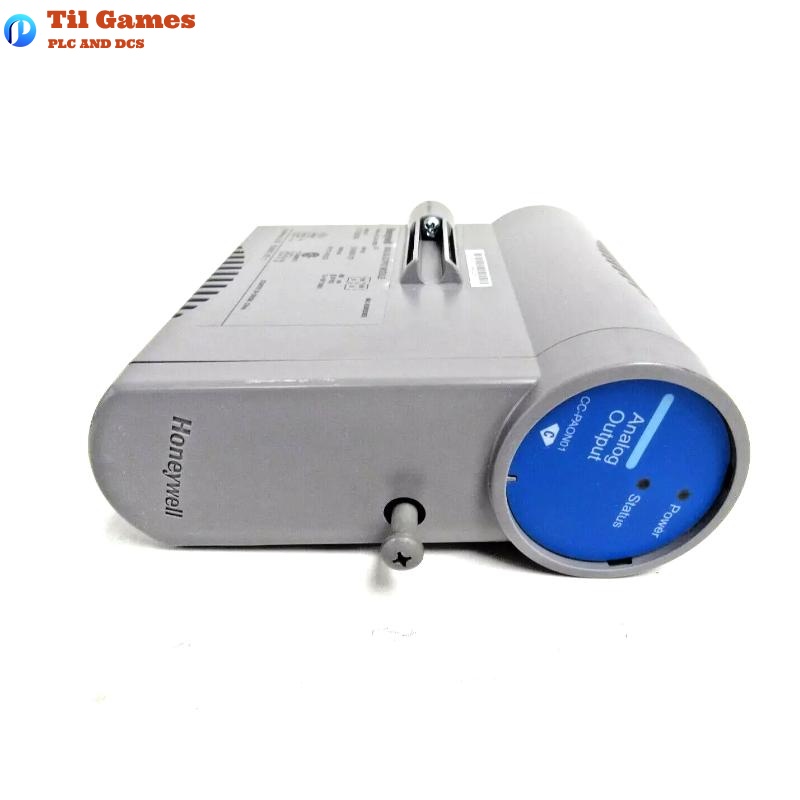

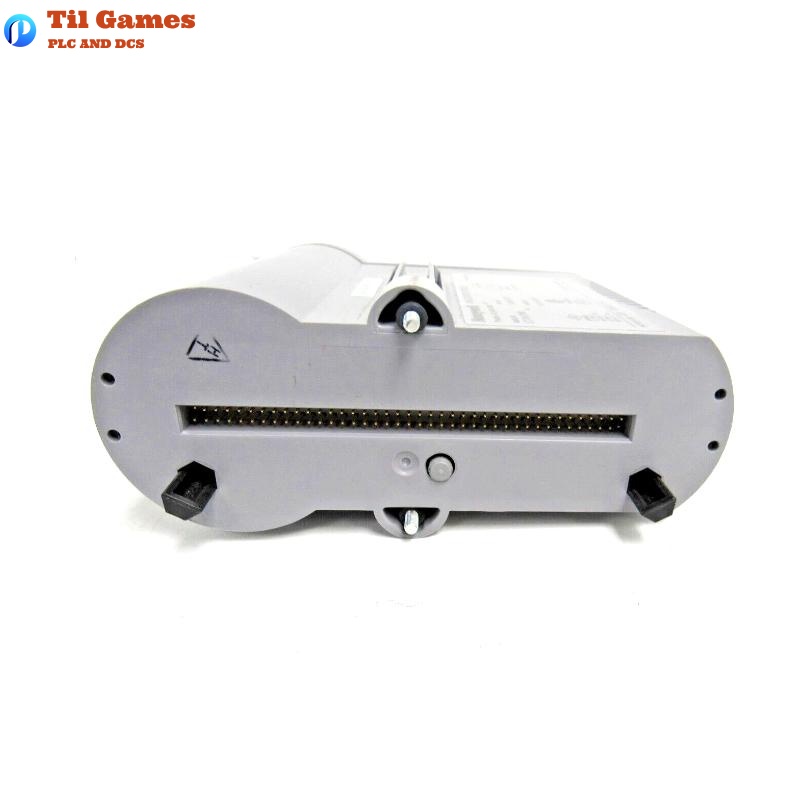

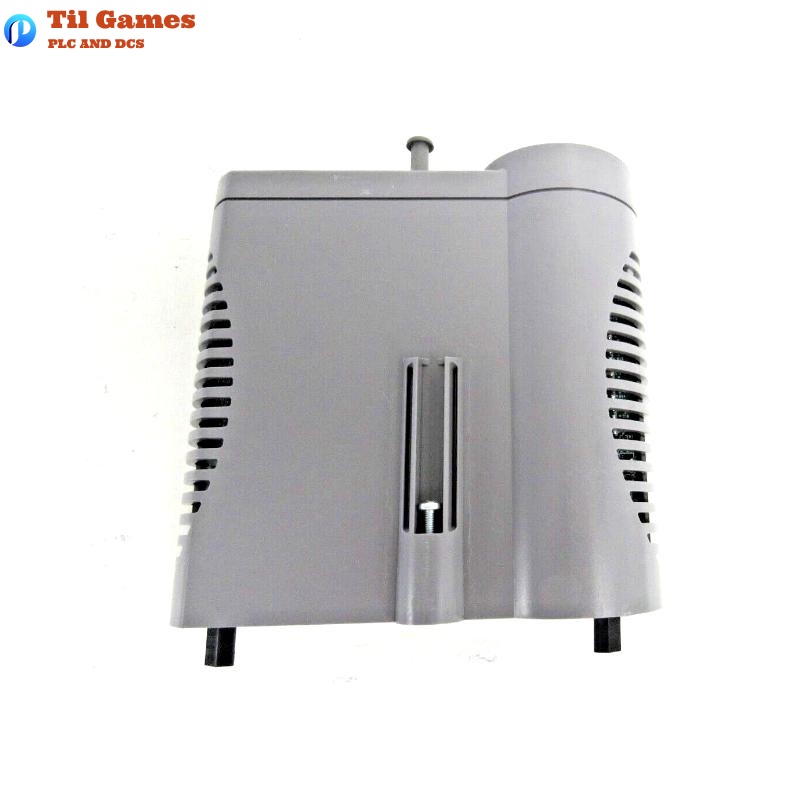

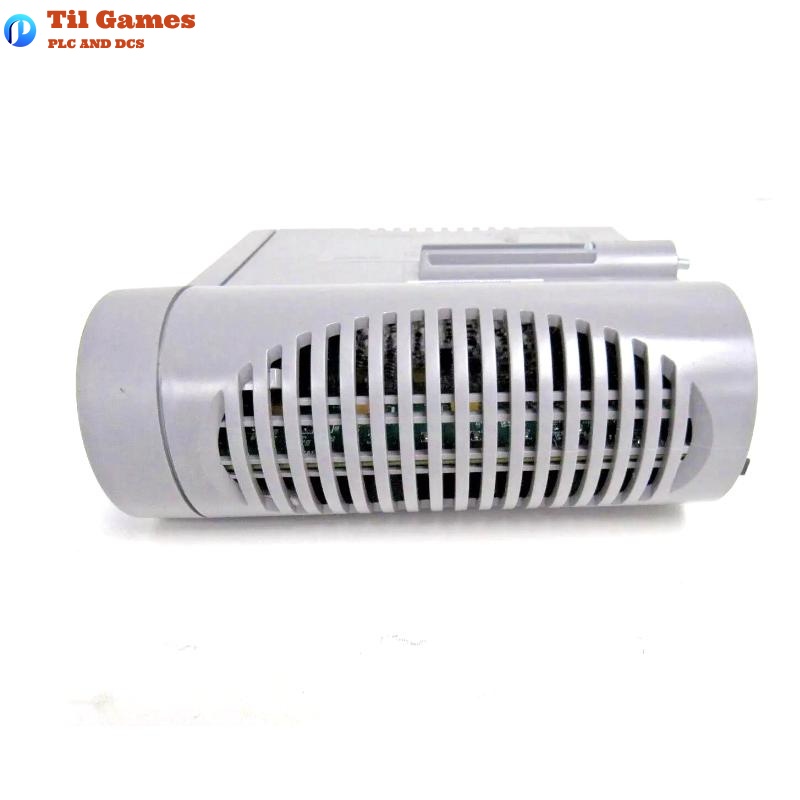

Honeywell CC-PAON01 51410070-176 Series-C High-Level Analog Output Module

Frequently Asked Questions

Q1: What type of output does the CC-PAON01 provide?
A1: It provides 4–20 mA high-level constant current analog output.

Q2: Does the module support per-channel safety mode configuration?
A2: Yes. Each channel can be configured to HOLD LAST VALUE or SHED TO SAFE VALUE.

Q3: Is redundancy supported for this module?
A3: Yes, redundancy is supported using a redundant IOTA and a second IOM.

Q4: How does the module handle open wire detection?
A4: It includes open-wire detection and triggers a channel soft failure alert if an open circuit is detected.

Q5: What is the maximum load resistance supported?
A5: It supports up to 800 ohms with a 24V power supply.

Q6: What is the module’s response time?
A6: The output settles to within 1% of the final value in 80 milliseconds.

Q7: Can output current be monitored and alarmed?
A7: Yes, the module provides output current readback and alarms for discrepancies.

Q8: What kind of environments is this module designed for?
A8: It is suitable for industrial control applications with non-incendive (Class 1, Div 2) requirements.

51410070-176 CC-PAON01 Honeywell Series-C High-Level Analog Output Module
