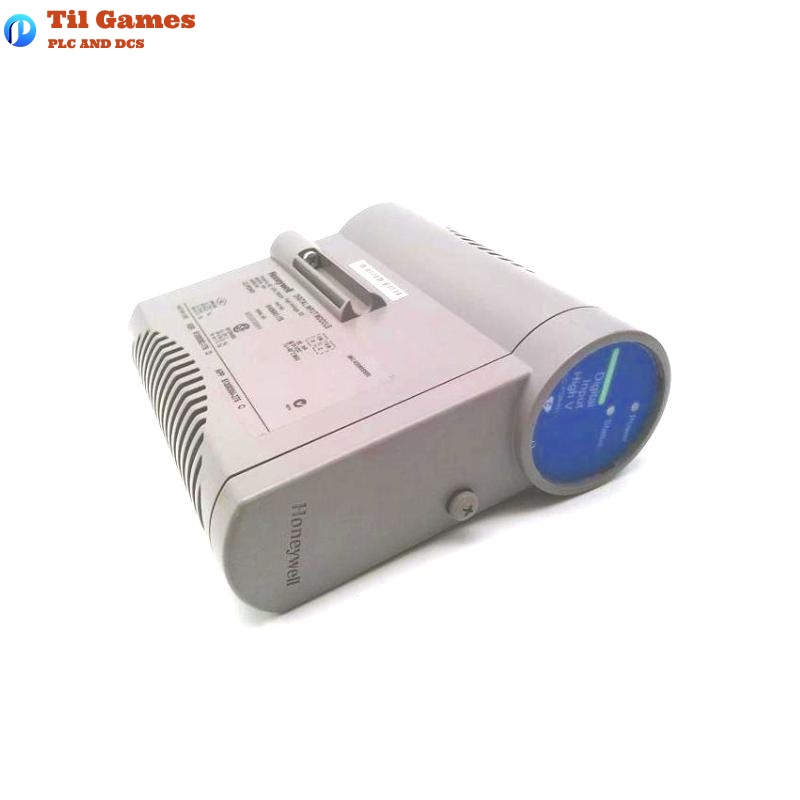

Honeywell CC-PDIH01 51405041-175 Series-C High Voltage Digital Input Module

Frequently Asked Questions (FAQ)

Q1: What voltage levels are supported by the CC-PDIH01 module?
A1: The module supports 120VAC, 125VDC, and 240VAC inputs, depending on the IOTA model used.

Q2: How many input channels does the CC-PDIH01 support?
A2: It supports 32 digital input channels.

Q3: What type of isolation is used in this module?
A3: The module uses optical isolation and provides 1500 VAC RMS or ±1500 VDC galvanic isolation.

Q4: Can the CC-PDIH01 be used in redundant configurations?
A4: Yes, redundancy is supported with CC-TDI120 and CC-TDI230 IOTA models.

Q5: What is the maximum allowable input voltage for AC operation?
A5: The AC models can accept voltages up to 132 VAC or 264 VAC depending on the configuration.

Q6: Is the module suitable for both AC and DC signal types?
A6: Yes, it supports both AC (120/240 VAC) and DC (125 VDC) digital signals.

Q7: What is the delay time from input signal change to logic level detection?
A7: The typical maximum delay is 25 milliseconds.

Q8: Does the module offer protection against input faults?
A8: Yes, the module includes internal diagnostics to detect and isolate input signal faults.

51405041-175 CC-PDIH01 High Voltage Digital Input Module Honeywell Series-C
