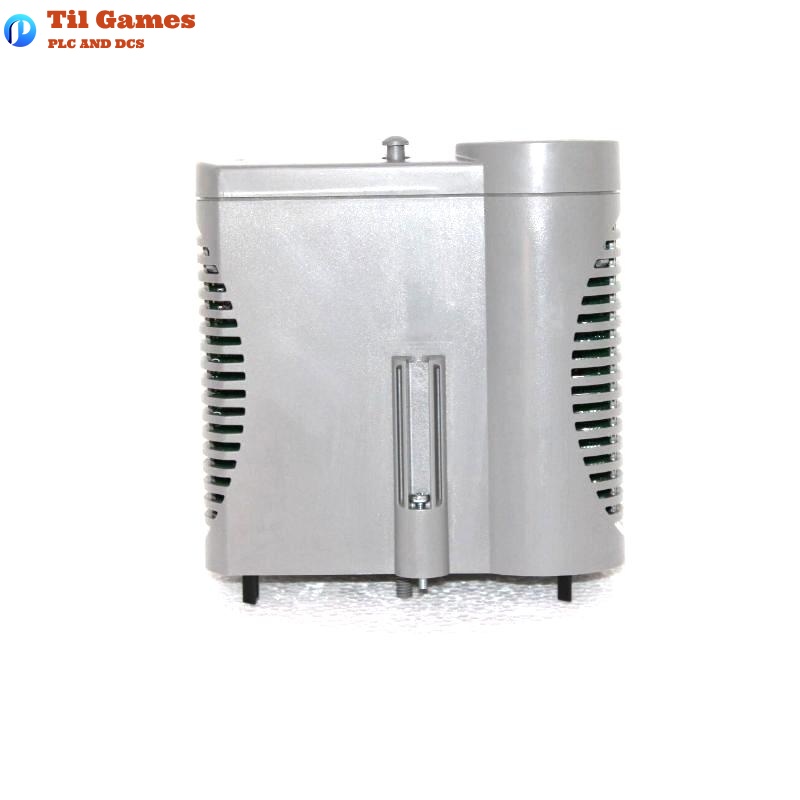

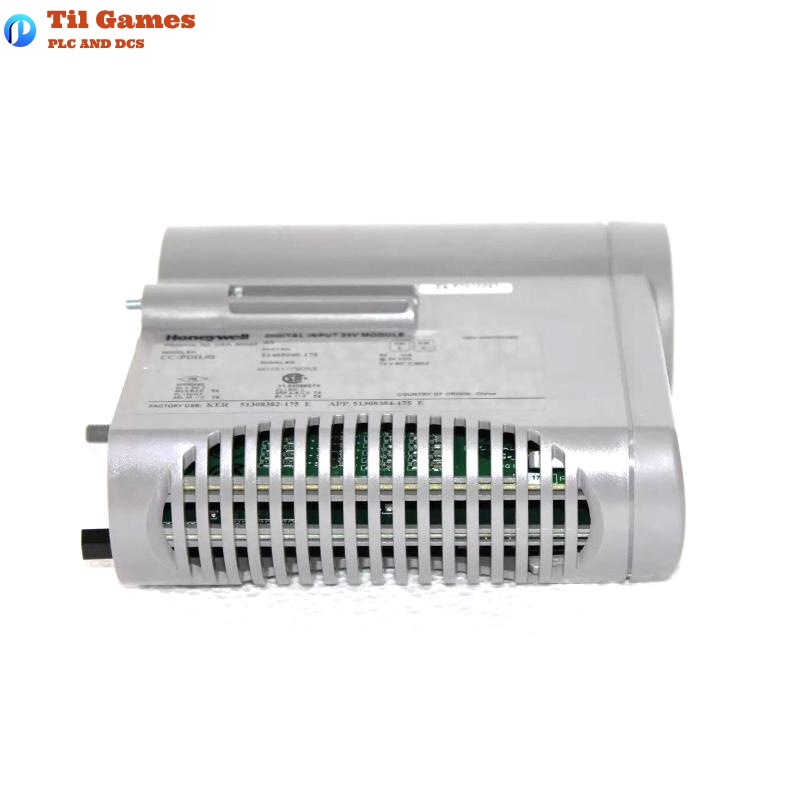

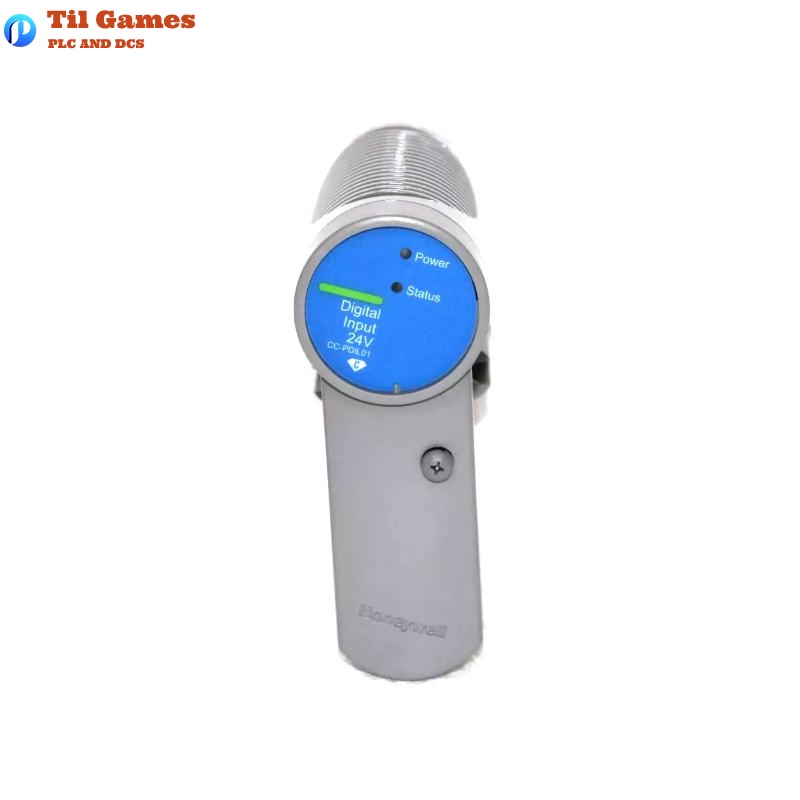

Honeywell CC-PDIL01 51405040-175 Series-C Digital Input 24V Module

Frequently Asked Questions (FAQ)

Q1: How many input channels does the CC-PDIL01 support?
A1: It supports 32 channels of 24VDC digital inputs.

Q2: Does the module support open wire detection?
A2: Yes, the CC-PDIL01 can detect and report open wire conditions.

Q3: What is the acceptable voltage input range?
A3: The input voltage range is from 18 to 30 VDC.

Q4: Is redundancy supported with this module?
A4: Yes, redundancy is supported using TDIL11 or compatible redundant IOTAs.

Q5: What isolation technique is used?
A5: Optical isolation is used, with a rating of 1500 VAC RMS or ±1500 VDC.

Q6: What is the typical input filtering delay?
A6: The input filter delay is 5 milliseconds ±20%.

Q7: Does the module provide onboard excitation power?
A7: Yes, onboard excitation is provided without the need for external marshalling power.

Q8: What are the module’s dimensions and weight?
A8: Dimensions are 63.5 × 124.46 × 307.34 mm, and the weight is approximately 0.4 kg.

51405040-175 CC-PDIL01 Digital Input 24V Module Honeywell Series-C
