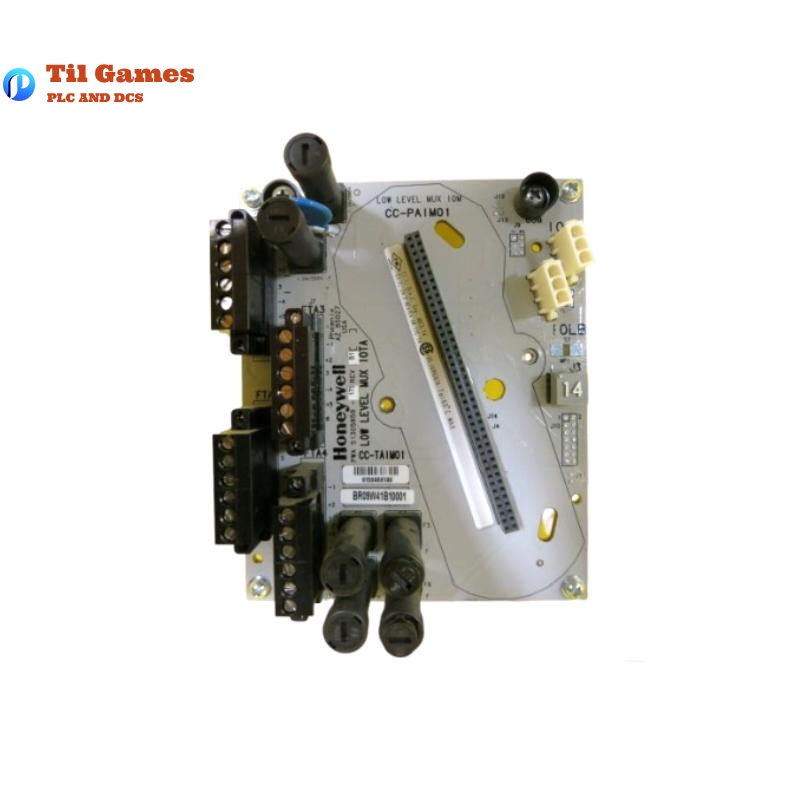

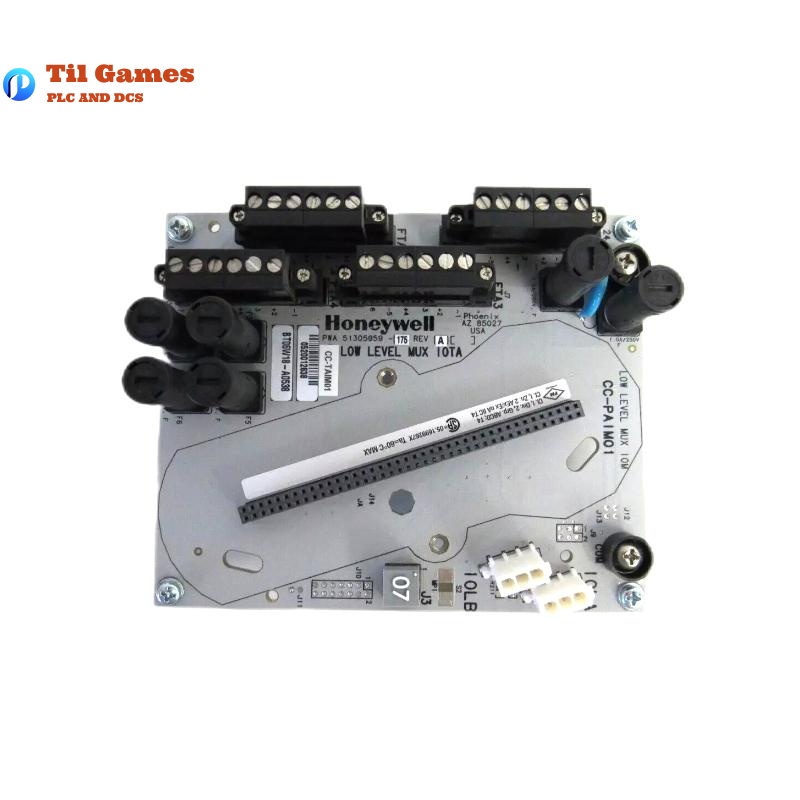

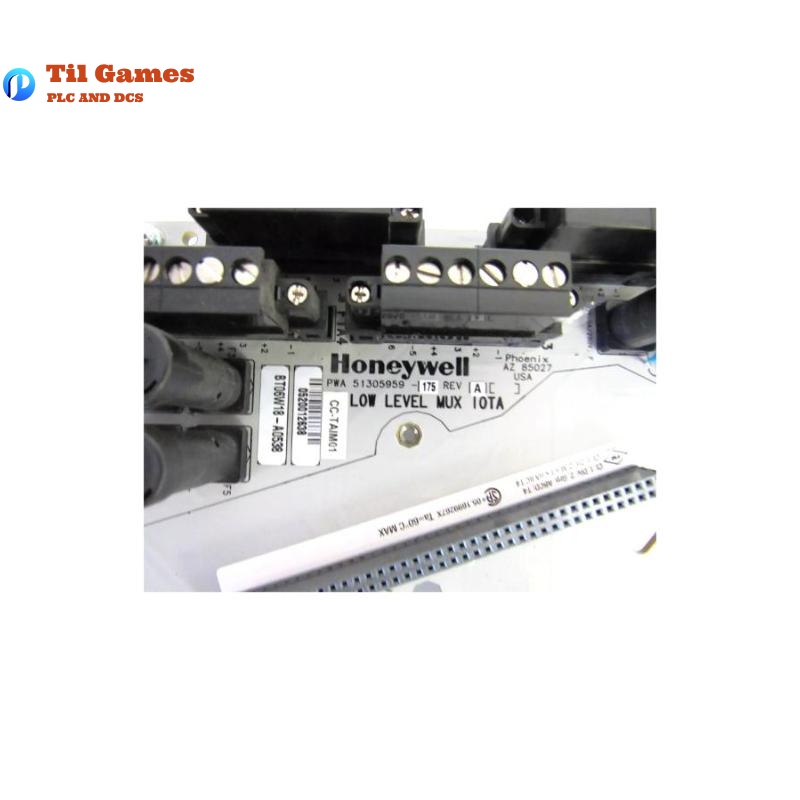

Honeywell CC-TAIM01 51305959-175 Low-level Analog Input Module

Frequently Asked Questions (FAQ)

Q1: What signal types does the CC-TAIM01 support?
A1: It supports thermocouple, RTD, and millivolt signal inputs.

Q2: How many channels can it handle?
A2: It supports up to 64 channels in 16-channel increments using multiple FTAs.

Q3: Is cold junction compensation included?
A3: Yes, integrated cold junction compensation (CJR) ensures temperature accuracy.

Q4: Can the module detect open thermocouple conditions?
A4: Yes, it supports open thermocouple detection to prevent invalid process variables.

Q5: Is channel-to-channel isolation provided?
A5: Yes, full isolation is provided between channels, power supply, and system common, rated at ±250 V.

Q6: What is the fixed scan rate of the module?
A6: The scan rate is fixed at 1 second for all channels.

Q7: Which RTD types are supported?
A7: Supported RTD types include Pt100 (DIN/JIS), Ni120, Cu10, and Cu50.

Q8: Does the module have surge protection?
A8: Yes, it complies with EN 61000-4-5 for surge immunity on both sensor and power/serial link terminals.

51305959-175 CC-TAIM01 Honeywell Low Level Analog Input Module
