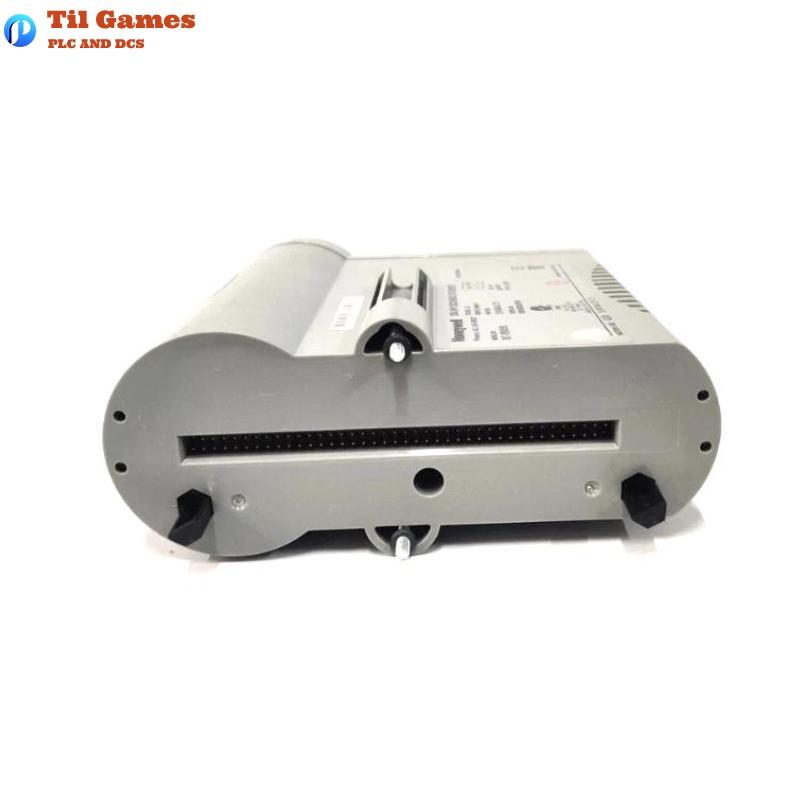

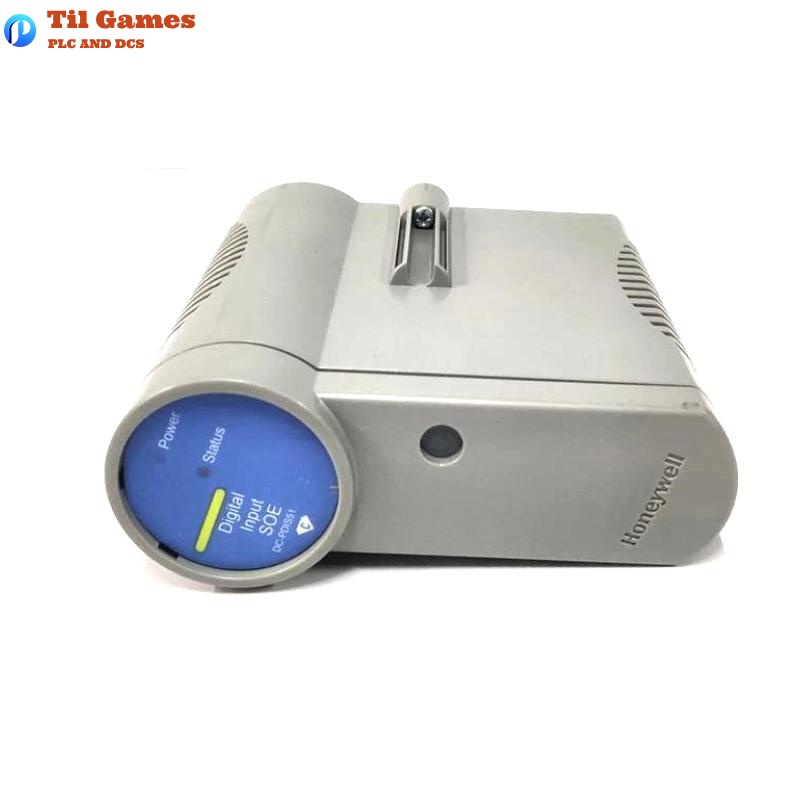

Honeywell DC-PDIS51 51454818-275 Digital Input Module Sequence of Events

Frequently Asked Questions (FAQ)

Q1: What type of input signals does the DC-PDIS51 support?
A1: It accepts 24VDC discrete input signals and provides high-resolution time tagging for Sequence of Events (SOE) applications.

Q2: Does this module support redundant configurations?
A2: Yes. Redundancy can be achieved by installing a second IOM on the same IOTA, such as the DC-TDIL61.

Q3: What is the timestamp resolution for sequence of events?
A3: The module supports event timestamping with a 1 millisecond (1 ms) resolution.

Q4: What type of isolation is used for input channels?
A4: The inputs are optically isolated, rated at 1000 VAC RMS or ±1000 VDC relative to logic common.

Q5: Is external field power supported?
A5: Yes, the module supports both internal and external field power configurations without the need for marshalling power.

Q6: What is the acceptable input voltage range for operation?
A6: The operating voltage range for input signals is between 18 and 30 VDC.

Q7: Is there any input delay due to filtering or isolation?
A7: Yes. The total delay through the input filter and isolation is 5 ms ± 20%.

Q8: What are the typical applications for the DC-PDIS51 module?
A8: It is ideally used in control systems requiring accurate event logging, such as alarm monitoring, time-critical process tracking, and sequence verification.

51454818-275 DC-PDIS51 Digital Input Module Honeywell Sequence of Events
