Technical Specifications
| Parameter | Description |
|---|---|

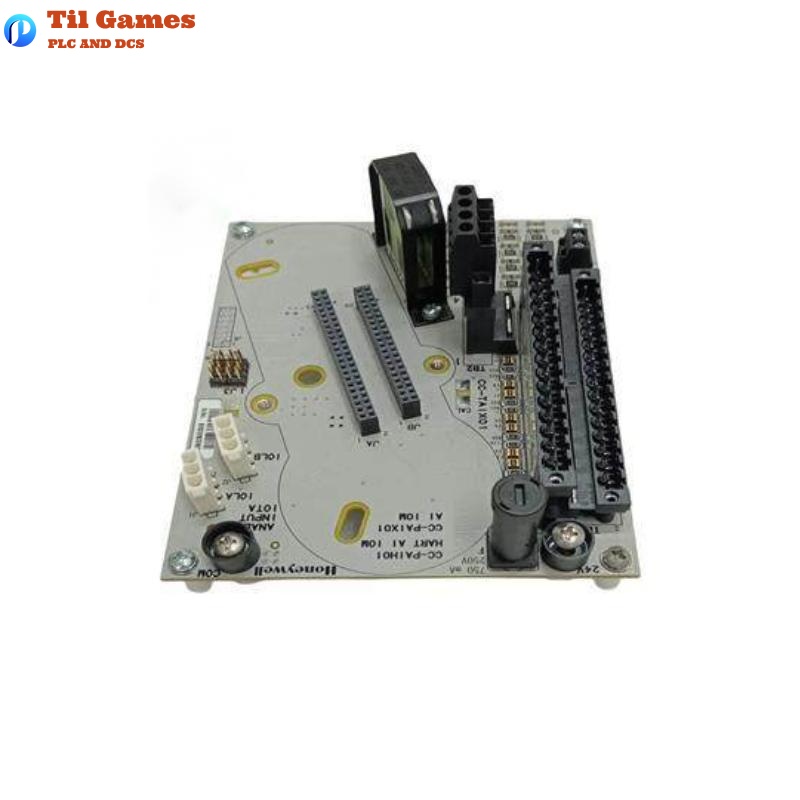

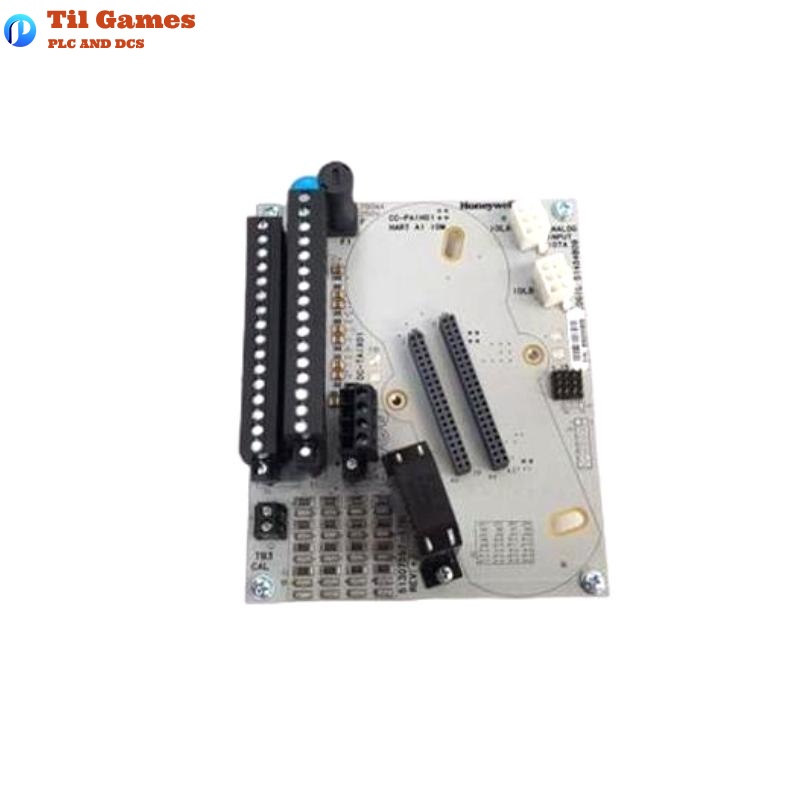

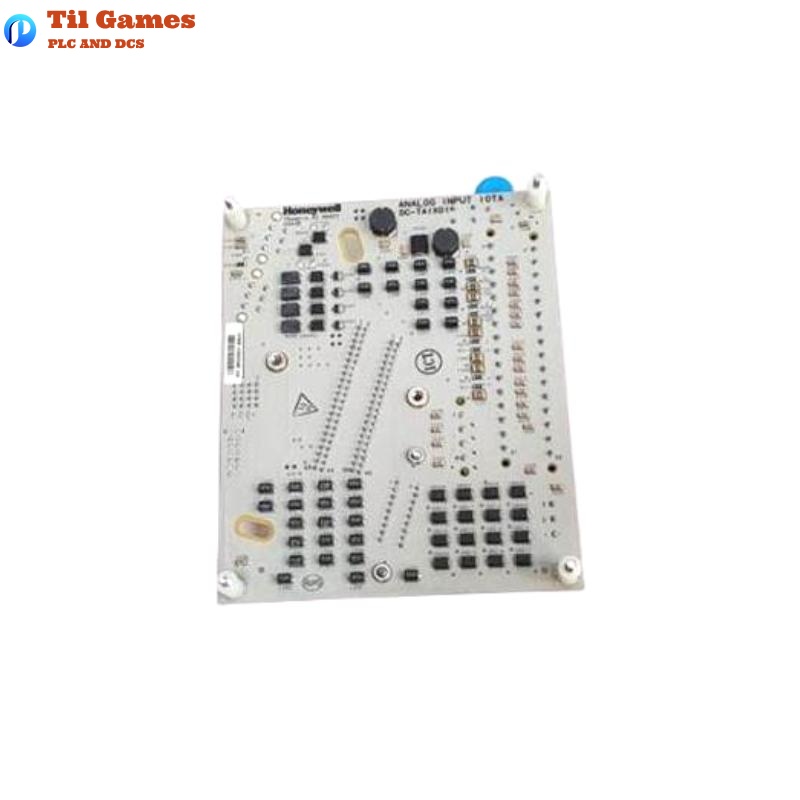

| Model | DC-TAIX01 |
| Compatible IOM | CC-PAIH01 High-Level Analog Input Module |
| Input Channels | 16 total (12 Single-ended, 4 Differential) |
| Input Types | Voltage, 4-20 mA current (2-wire or self-powered transmitters) |
| Input Ranges | 0–5 V, 1–5 V, 0.4–2 V, 4–20 mA (via 250Ω load resistor) |
| Common Mode Rejection | 70 dB (DC to 60 Hz, 500Ω source imbalance) |
| Common Mode Voltage | -6 V to +5 V peak |
| Input Impedance | >10 MΩ (for voltage input) |
| Input Scan Rate | 50 ms |
| Resolution | 16-bit A/D converter |
| Normal Mode Rejection | 19 dB at 60 Hz |
| Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Max Normal Mode Input | ±30 V (no damage, differential input) |
| Crosstalk | -60 dB (channel-to-channel, DC to 60 Hz) |
| Max Input Voltage | ±30 V referenced to system common (no damage) |
| Hardware Accuracy | ±0.075% full scale @ 23.5°C ±2°C; ±0.15% from 0–60°C |
| Field Power Protection | Individually current-limited circuits for Class 1, Div 2 |
| Dimensions | 95 x 135 x 25 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does DC-TAIX01 support?
A1: It supports 16 input channels in total – 12 single-ended and 4 differential.
Q2: What types of input signals are supported?
A2: It accepts voltage and 4–20 mA current inputs, suitable for 2-wire or self-powered transmitters.
Q3: Is there channel-level protection?
A3: Yes, each channel is protected by an individual current-limiting circuit compliant with Class 1, Div 2. No external fuses are required.
Q4: What are the supported input ranges?
A4: The module supports 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA via internal 250Ω resistors.
Q5: What is the scan rate of this module?
A5: The input scan rate is 50 milliseconds.
Q6: Does this module support redundancy?
A6: The DC-TAIX01 is a non-redundant IOTA. For redundant setups, use DC-TAIX11.
Q7: What is the input impedance?
A7: The input impedance is greater than 10 MΩ for voltage inputs.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 95 x 135 x 25 mm, and the weight is 0.3 kg.
