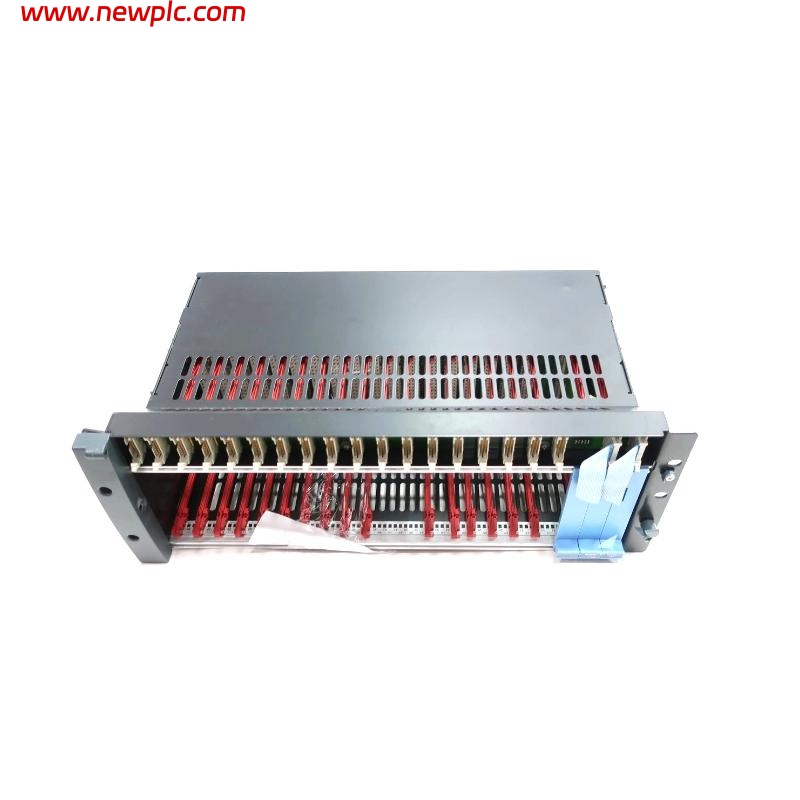

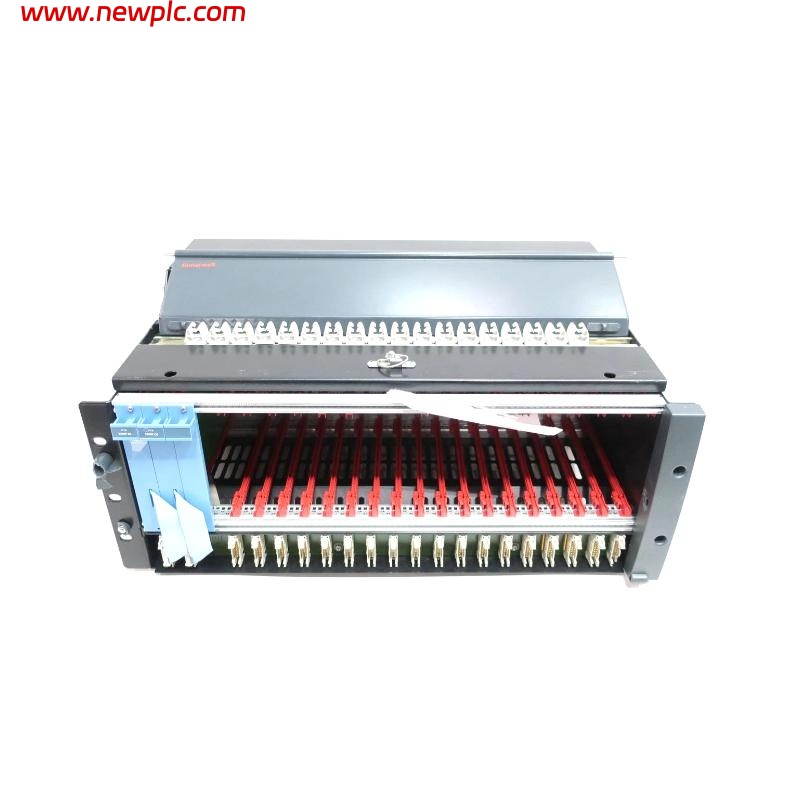

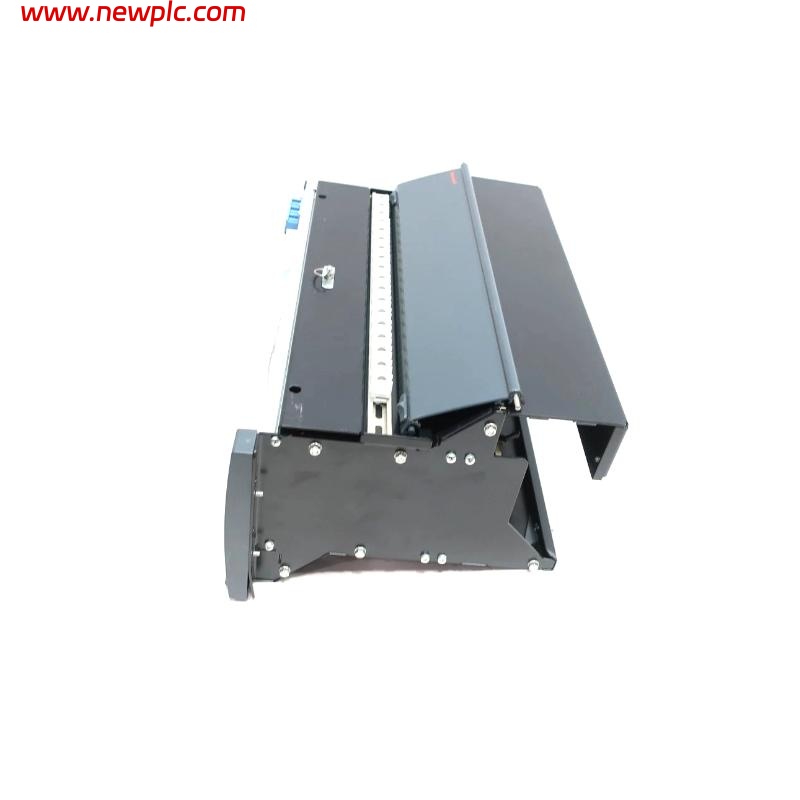

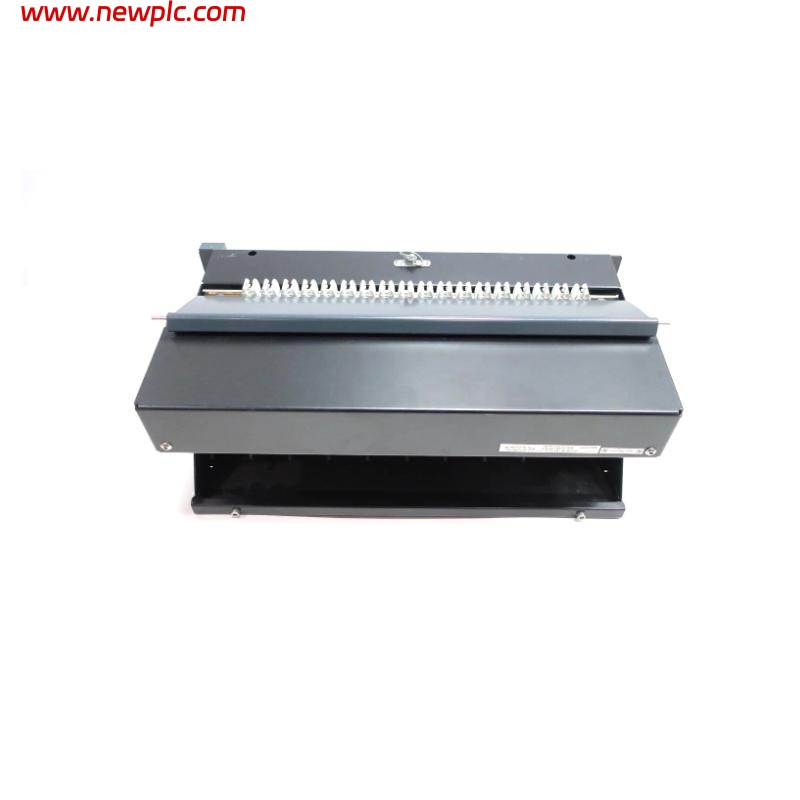

Honeywell FS-IOCHAS-0001R I/O Chassis for Redundant IO Module (Safety Manager)

FAQ

Q1: What is the maximum number of redundant I/O module pairs supported?
A1: The chassis supports up to 9 pairs of redundant I/O modules.

Q2: Which slots are reserved for IO extender modules?
A2: Slots 20 and 21 are used for the IO-0001 extender modules.

Q3: Can slot 19 be used for modules?
A3: No, slot 19 is not available for use.

Q4: What type of control processors manage the odd and even slots?
A4: Odd slots and slot 20 are controlled by Control Processor 1, even slots and slot 21 by Control Processor 2.

Q5: What approvals does this chassis carry?
A5: It is approved by CE, UL, CSA, TUV, and FM.

Q6: What are the dimensions of the chassis?
A6: The chassis measures 222.4 x 482.6 x 280 mm.

Q7: What is the power consumption per extender module?
A7: Each extender module consumes approximately 35 mA at 5V.

Q8: How heavy is the chassis?
A8: The chassis weighs approximately 8.5 kg.

FS-IOCHAS-0001R Honeywell I/O Chassis Redundant IO Module Safety Manager
