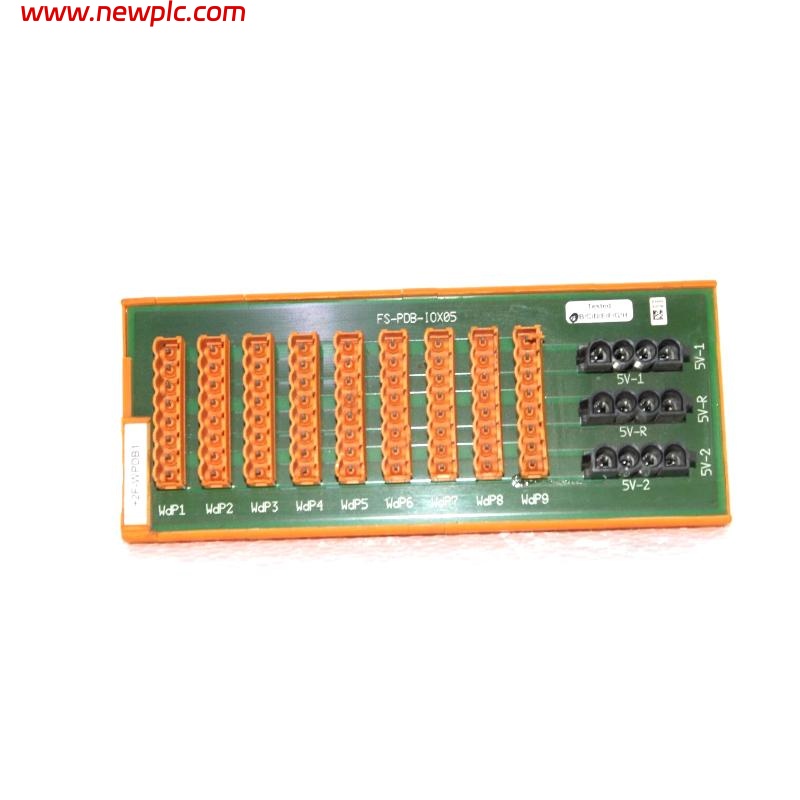

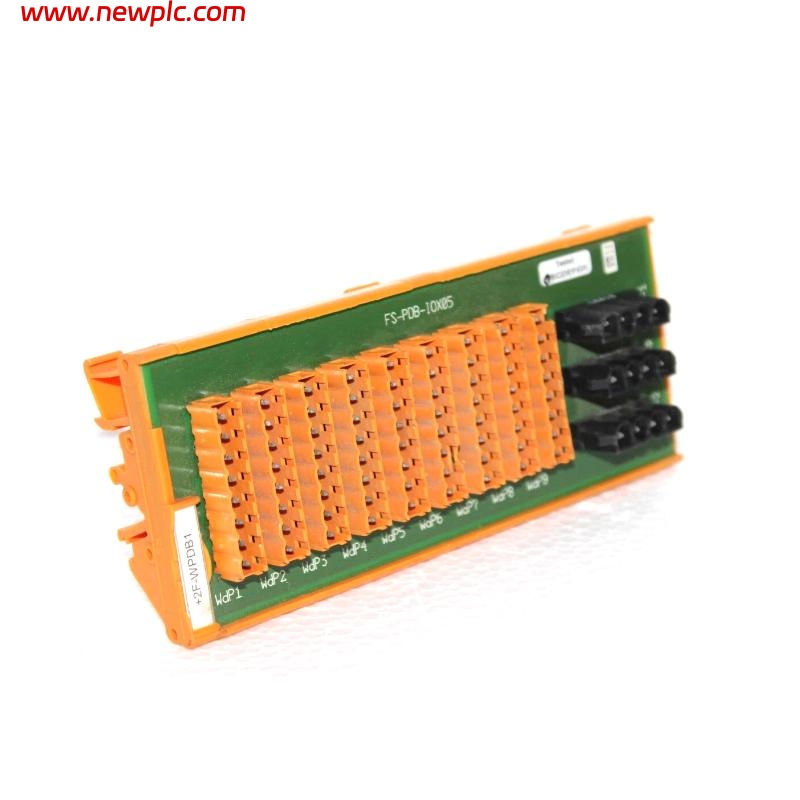

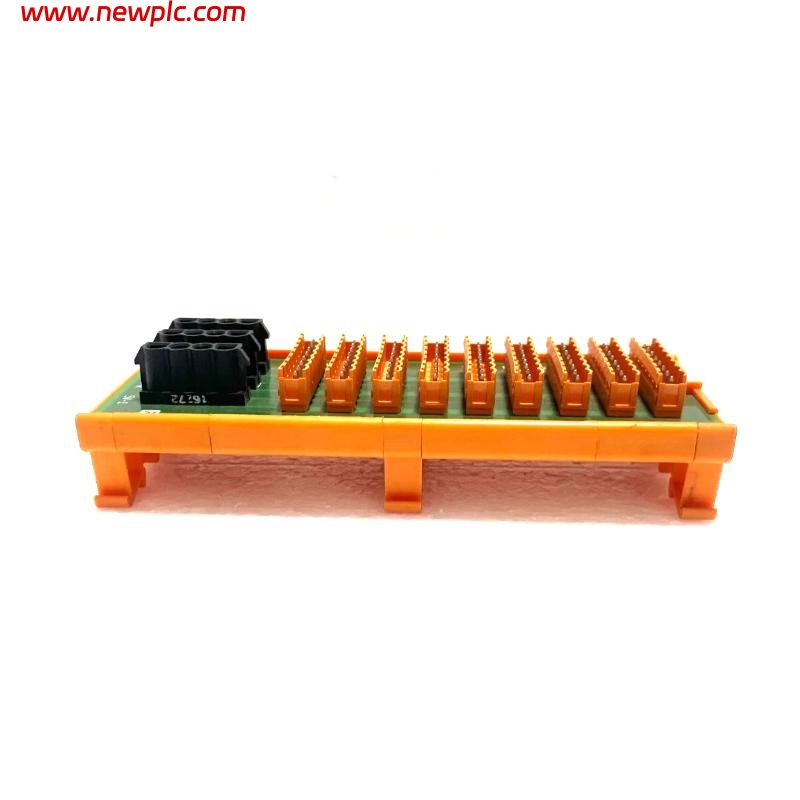

Honeywell FS-PDB-IOX05 Power Distribution Board Extension I/O Cabinet

FAQ

• What is the primary function of the FS-PDB-IOX05 board?
  The FS-PDB-IOX05 distributes 5 V DC power and watchdog signals from the controller cabinet to the IO chassis in an extension I/O cabinet.

• Which approvals does this board hold?
  The board is certified with CE, UL, TUV, and CSA approvals.

• How many 5 V DC outputs are available?
  It provides 4 positions for 5 V DC outputs via an action pin header.

• What type of connector is used for the watchdog signals?
  The watchdog signals (WdPx) use an 8-pole pin header connector.

• What are the physical dimensions and weight of the module?
  The module measures 170 × 70 × 46 mm and weighs 0.65 kg.

• Which DIN EN rails are compatible with this module?
  TS32 and TS35 × 7.5 DIN EN rails are supported.

• What is the required DIN rail length for installation?
  The module uses 171 mm of DIN rail length.

• Can this board be used in both FS and FC type cabinets?
  Yes, the FS-PDB-IOX05 supports both FS and FC extension I/O cabinets.

FS-PDB-IOX05 Honeywell PDB-IOX05 Power Distribution Board Extension I/O Cabinet
