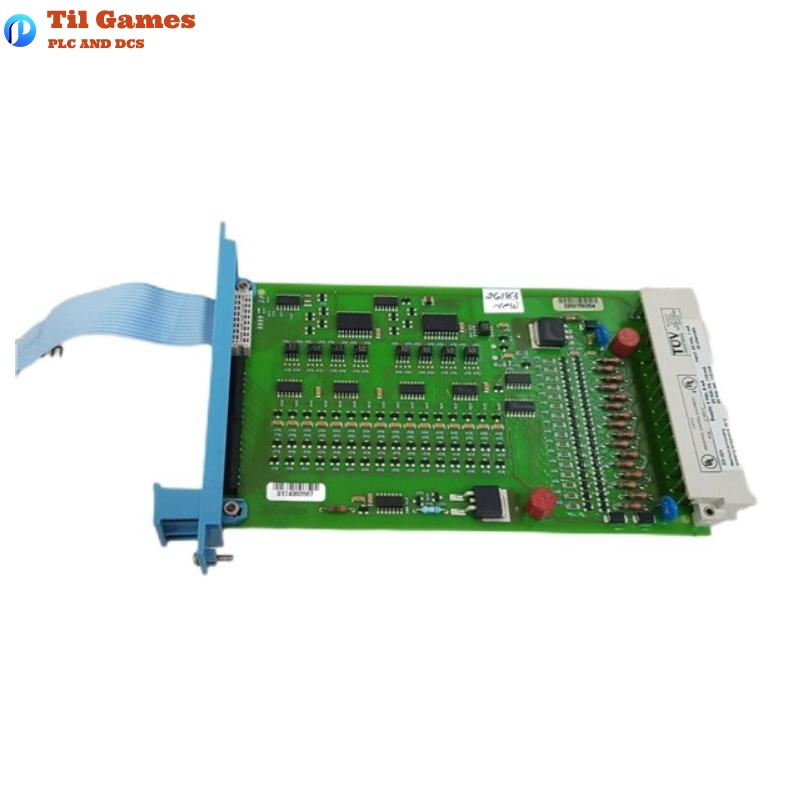

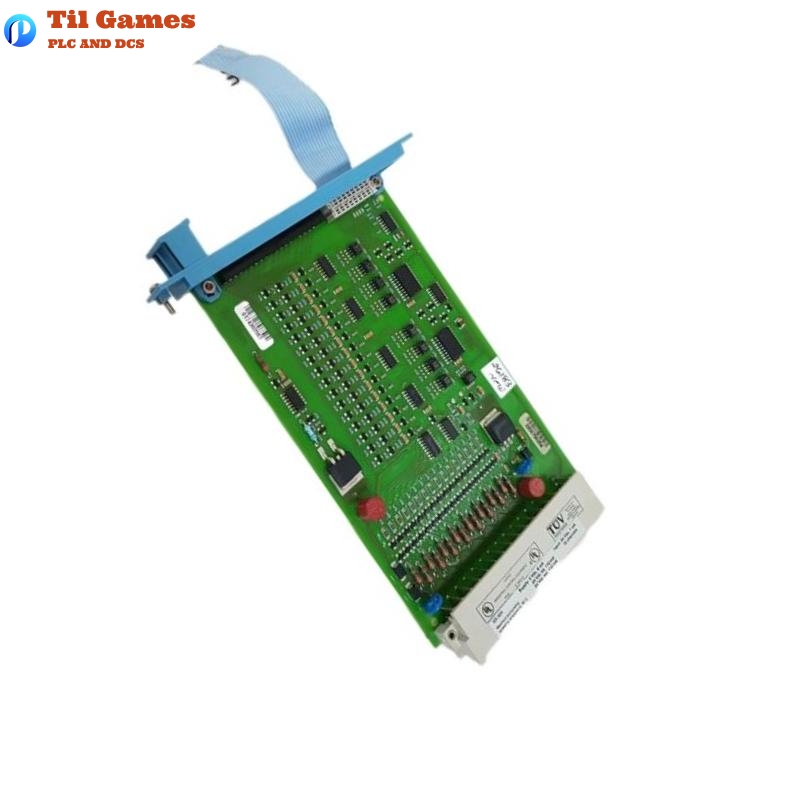

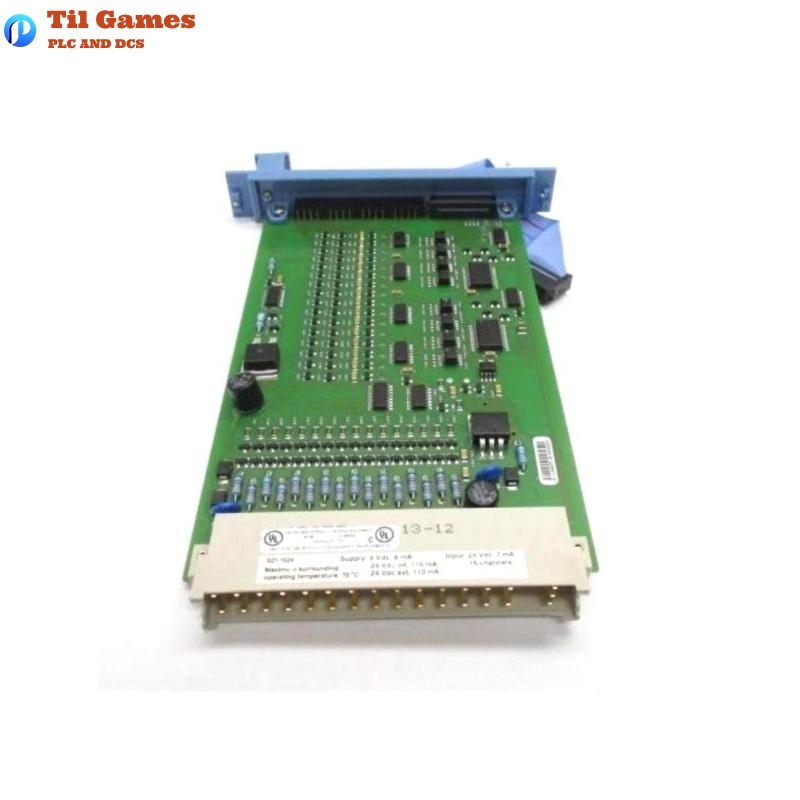

Honeywell FS-SDI-1624 Safe Digital Input Module

FAQ

Q1: What is the input voltage range for the FS-SDI-1624 module?
A1: The input voltage range is 24 V DC with a tolerance of ±30% .

Q2: How many input channels does the FS-SDI-1624 module have?
A2: The FS-SDI-1624 module has 16 input channels .

Q3: Does the FS-SDI-1624 module have short circuit protection?
A3: Yes, it uses a solid-state output with short circuit protection .

Q4: What is the maximum input voltage of the FS-SDI-1624 module?
A4: The maximum input voltage is 36 V DC .

Q5: What is the input delay of the FS-SDI-1624 module?
A5: The input delay is typically 10 ms .

Q6: What is the voltage drop of the FS-SDI-1624 module?
A6: The voltage drop is less than 1.5 V at 450 mA .

Q7: What is the input current of the FS-SDI-1624 module?
A7: The input current is 7 mA at 24 V DC .

Q8: What are the dimensions and weight of the FS-SDI-1624 module?
A8: The dimensions are 22 x 124 x 126 mm, and the weight is 0.1 kg .

FS-SDI-1624 Honeywell Safe Digital Input Module
