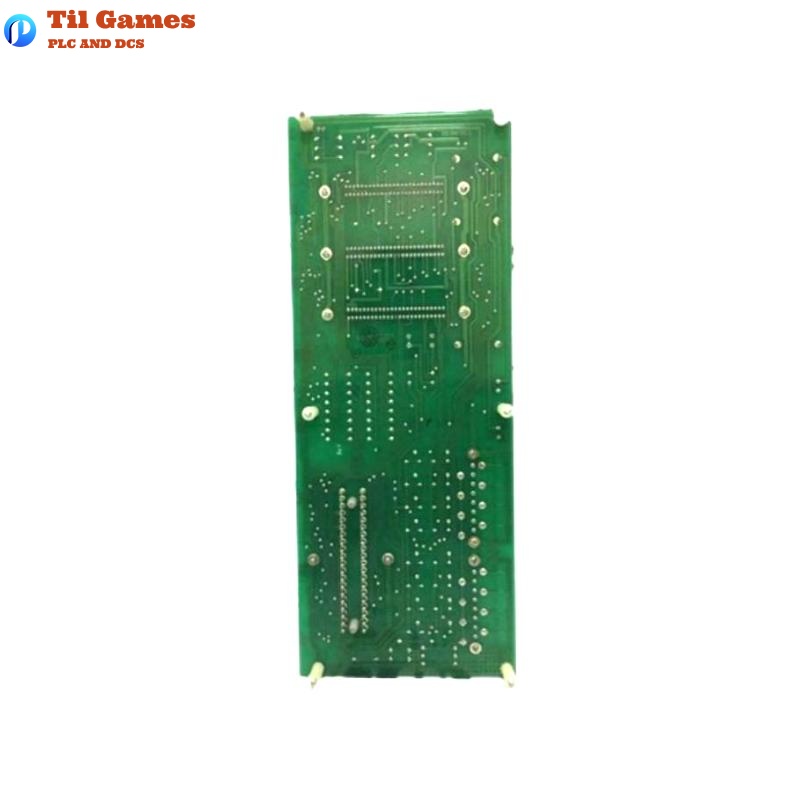

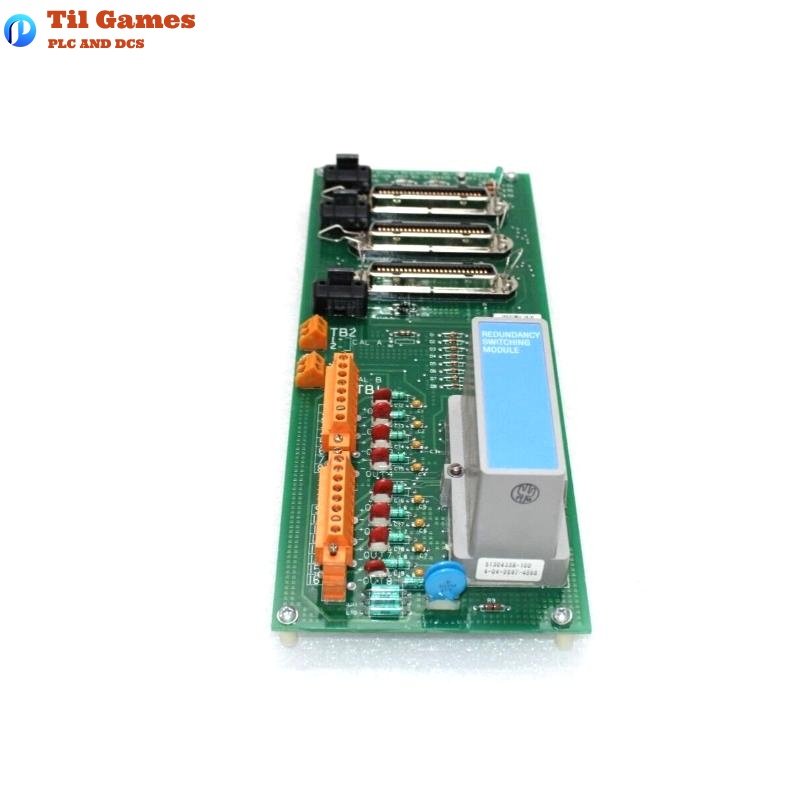

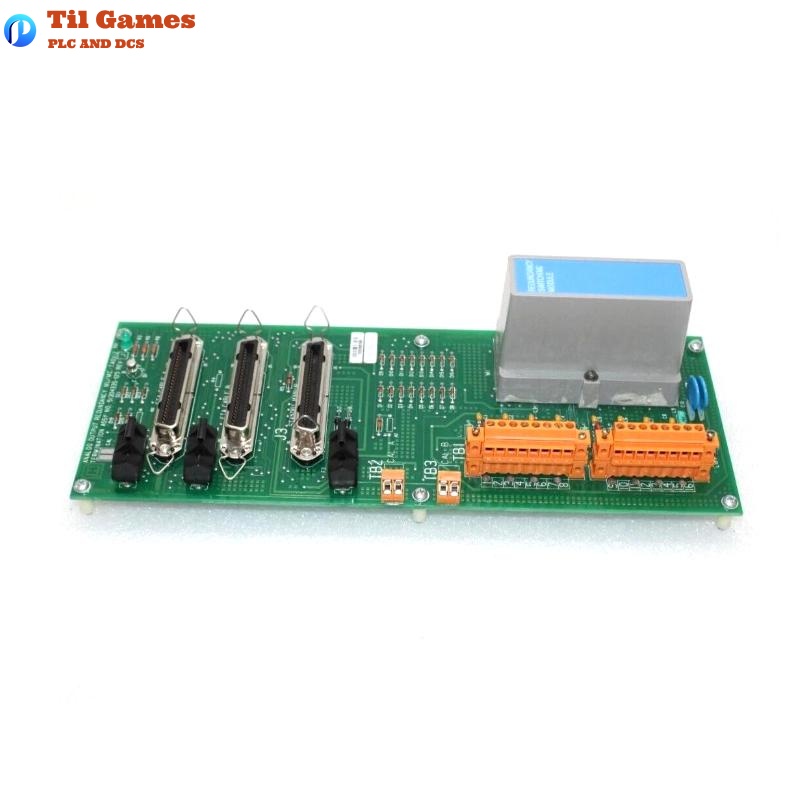

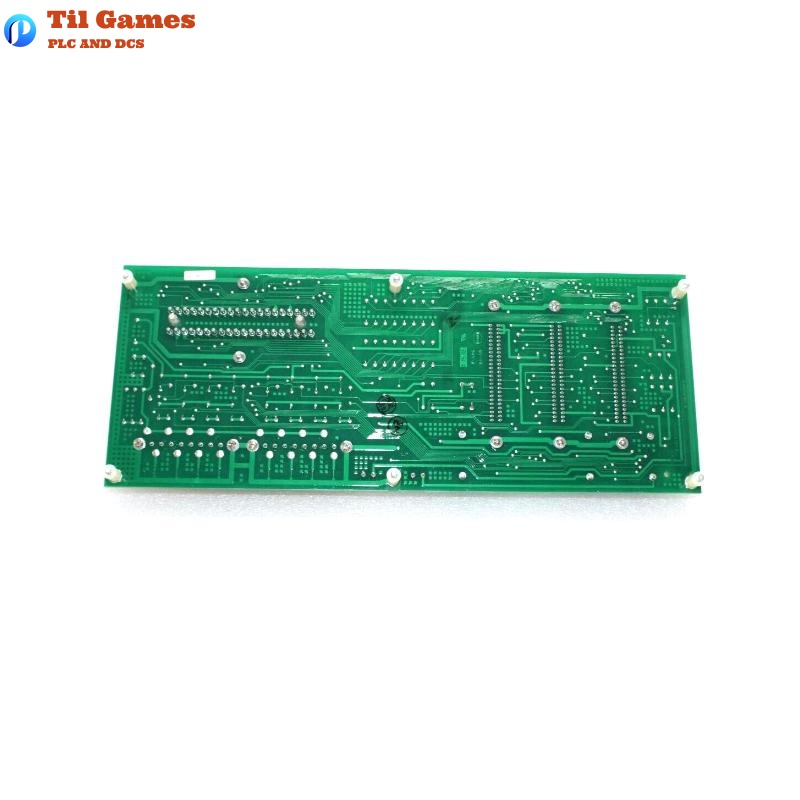

Honeywell MC-TAOX12 51304335-175 Analog Output FTA for Redundancy

Frequently Asked Questions (FAQ)

Q1: How many analog output channels does the MC-TAOX12 provide?
A1: It provides 8 independent 4-20 mA analog output channels.

Q2: Does the module support output current readback checking?
A2: Yes, it supports readback checking with an accuracy of ±4%.

Q3: What is the switching time in redundant mode?
A3: Nominally 1 ms for normal switchovers and up to 125 ms during failover.

Q4: What is the maximum load resistance supported?
A4: It supports up to 750 Ω at 22 mA output.

Q5: Is software calibration supported?
A5: Yes, software calibration is supported for improved accuracy.

Q6: What is the output resolution?
A6: The output resolution is ±0.05%.

Q7: Does the MC-TAOX12 comply with surge protection standards?
A7: Yes, it complies with ANSI/IEEE C37.90.1-1978.

Q8: What is the operating humidity range of the module?
A8: 10% to 90% relative humidity, non-condensing.

51304335-175 Analog Output FTA for Redundancy Honeywell MC-TAOX12
