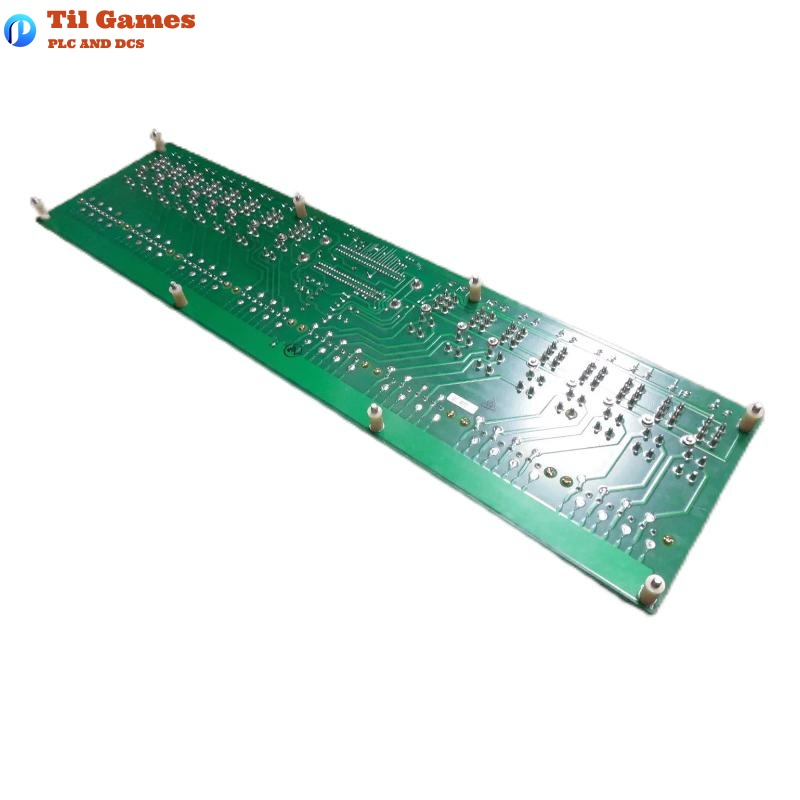

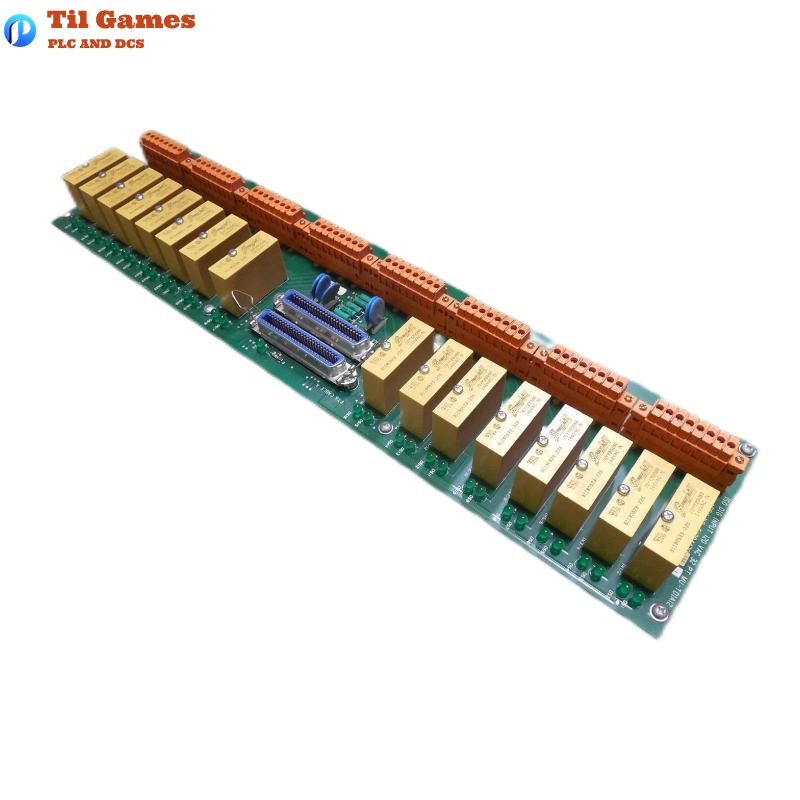

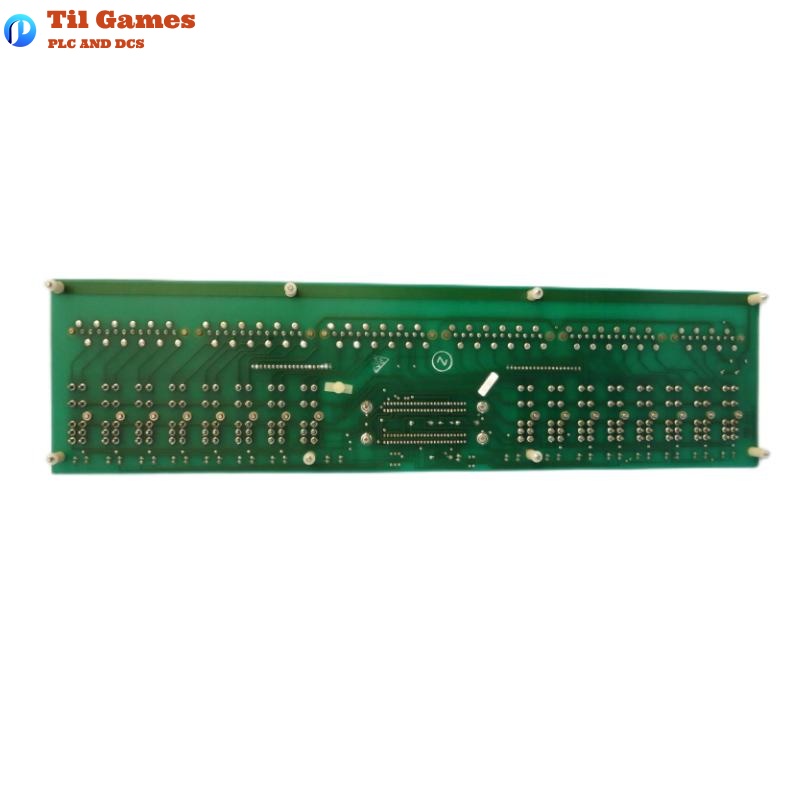

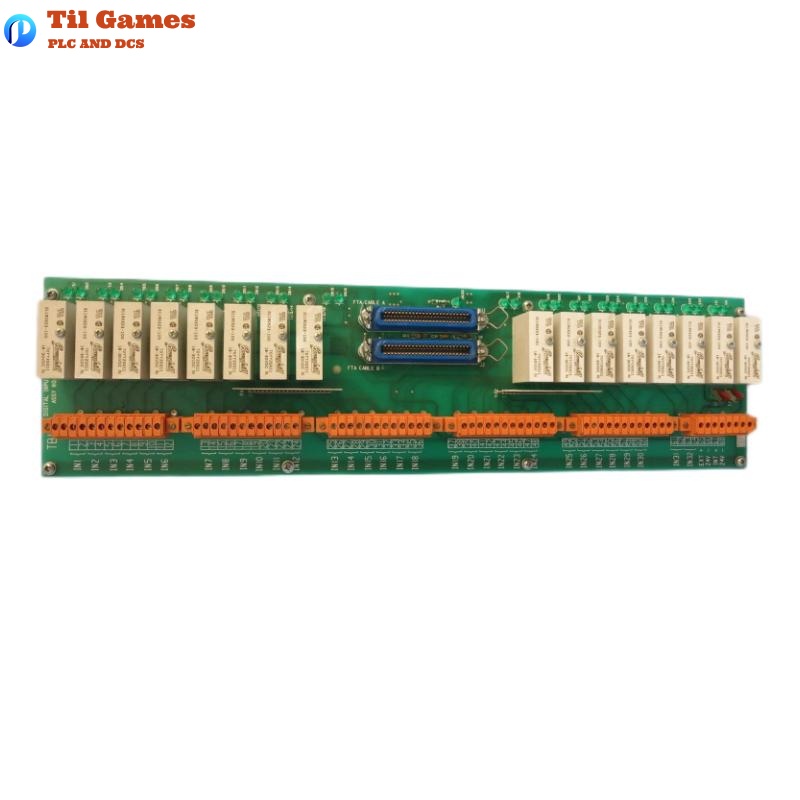

Honeywell MU-TDIA12 51304439-100 Digital Input Isolated 120 Vac FTA

Honeywell MU-TDIA12 51304439-100 FAQ

Q1: How many input channels does the MU-TDIA12 support?
A1: This module supports 32 digital input channels.

Q2: What input voltage is required for the channel to be recognized as “ON”?
A2: The input must reach at least 90 Vac rms to be considered as “ON”.

Q3: What is the isolation voltage between channels and to the system?
A3: The isolation voltage is 1500 Vac rms or ±1500 Vdc, ensuring system safety.

Q4: What is the typical input delay for the module?
A4: The maximum delay from input signal to logic state change is 25 milliseconds.

Q5: What are the typical application areas for MU-TDIA12?
A5: It is suitable for industrial automation, process control, power plants, and manufacturing applications requiring high-reliability digital signal acquisition.

Q6: What are the module’s dimensions and weight?
A6: The dimensions are 462.3 x 120.7 mm, and the weight is 0.45 kg.

Q7: What certification standards does this module comply with?
A7: It complies with ANSI/IEEE C37.90.1-1978 and other industrial standards.

Q8: What are the environmental requirements for this module?
A8: Operating temperature is 0°C ~ 50°C, humidity 10%~90% non-condensing, with industrial-grade protection.

51304439-100 Digital Input Isolated 120 Vac FTA Honeywell MU-TDIA12
