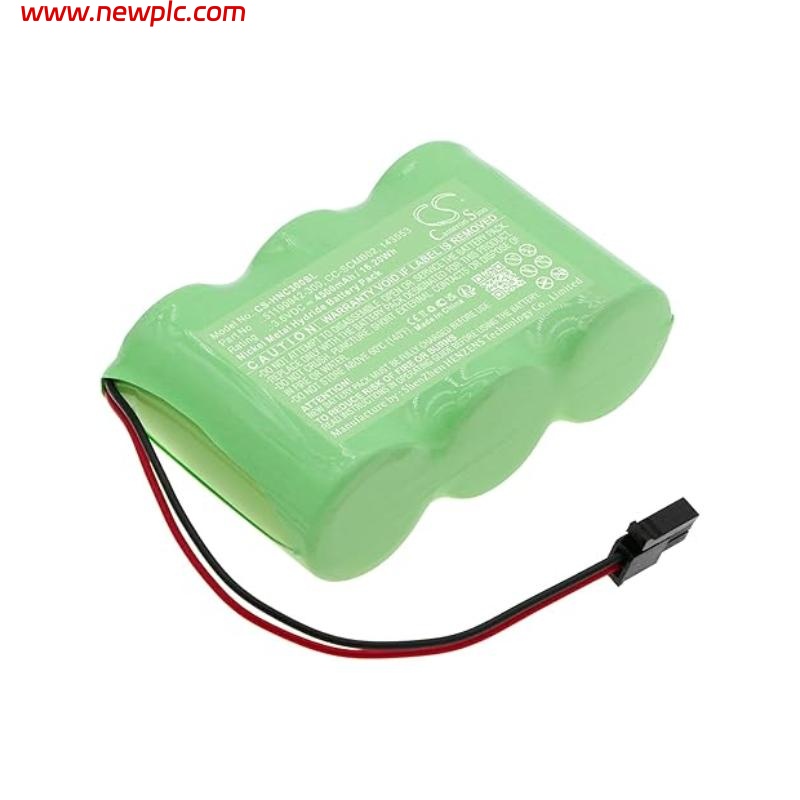

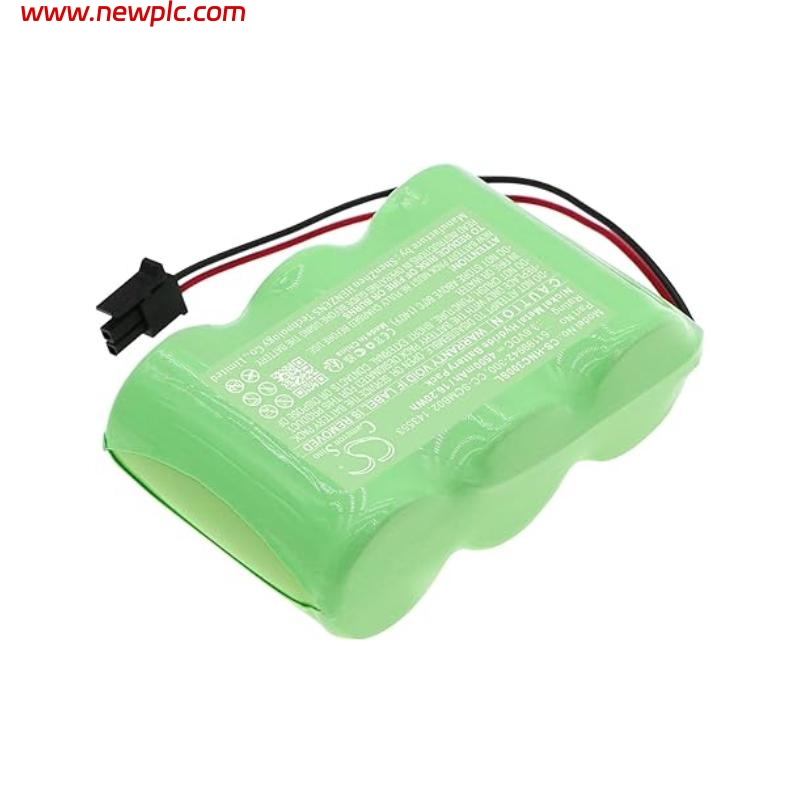

Honeywell TC-BATT03 51199942-300 Battery

FAQ

Q1: What is the main purpose of this battery?
It provides backup power or critical module power support for Honeywell control systems.

Q2: What are the voltage and capacity of the battery?
The battery voltage is 3.6 VDC with a capacity of 7 Ah.

Q3: What type of chemistry does the battery use?
The battery uses Lithium Thionyl Chloride (Li-SOCl₂) chemistry.

Q4: What is the nominal energy of the battery?
The nominal energy is 25.2 Wh.

Q5: What is the typical service life of the battery?
The typical service life is approximately 10 years.

Q6: What is the operating temperature range of the battery?
The operating temperature range is -20°C to 60°C, and the storage temperature range is -40°C to 70°C.

Q7: What is the protection rating of the battery?
The battery has an IP20 protection rating, suitable for standard control cabinet environments.

Q8: What are the dimensions and weight of the battery?
The battery measures 77.20 × 50.80 × 25.80 mm and weighs 0.315 kg.

51199942-300 Battery Honeywell TC-BATT03
