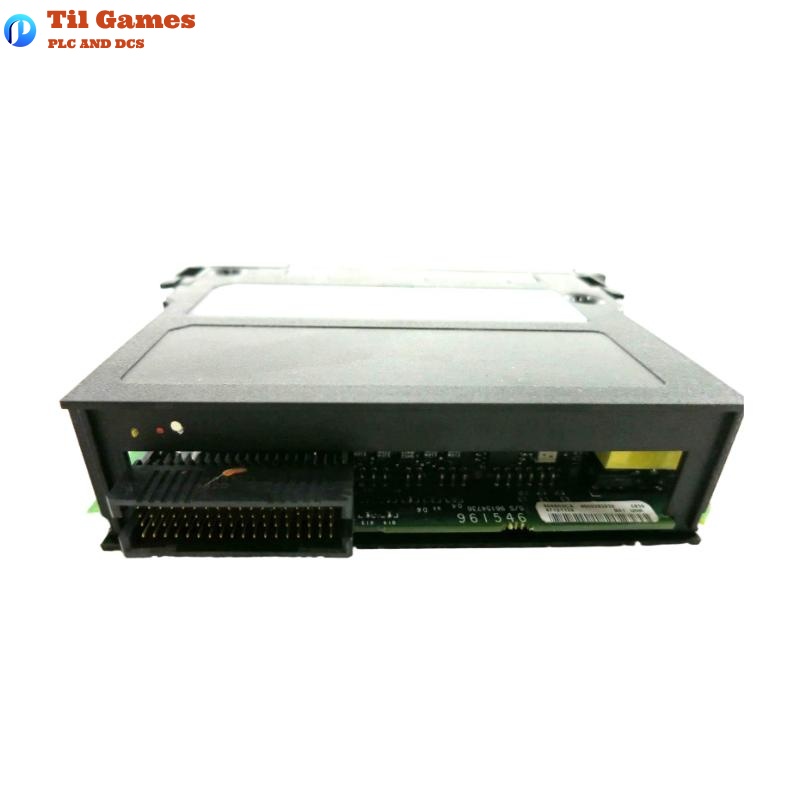

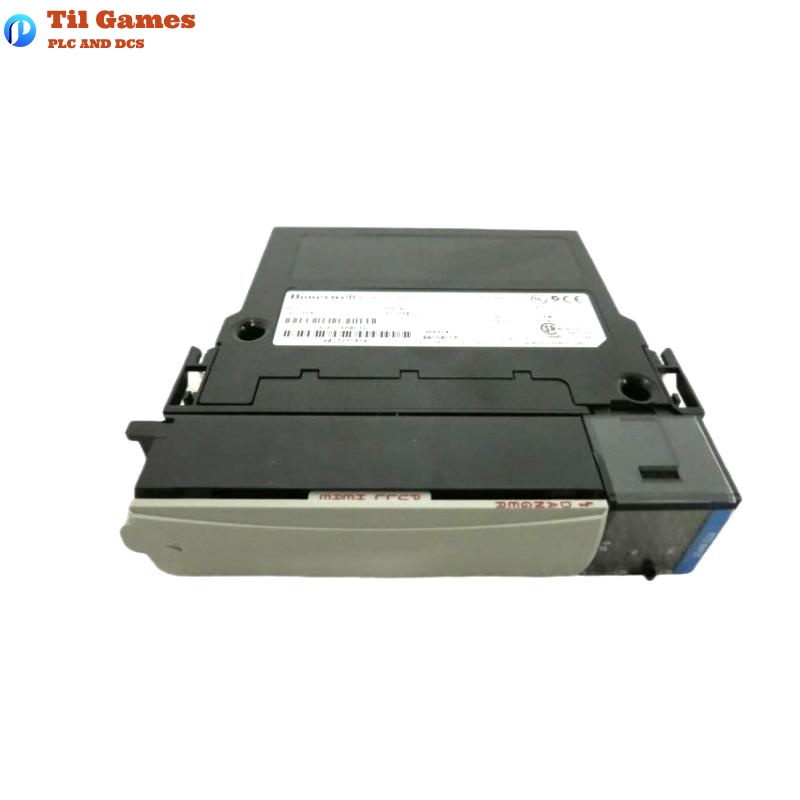

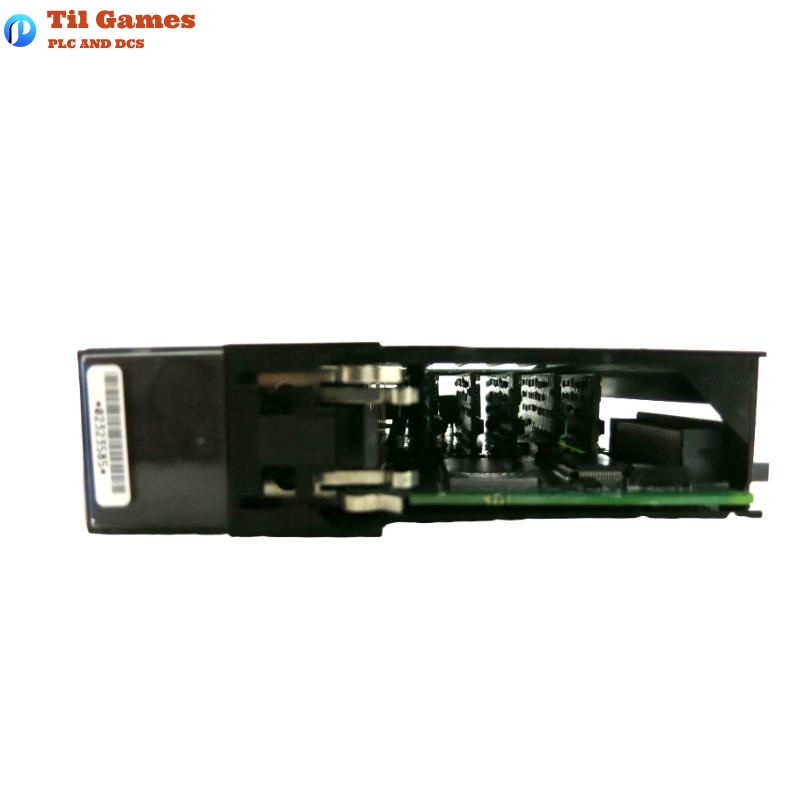

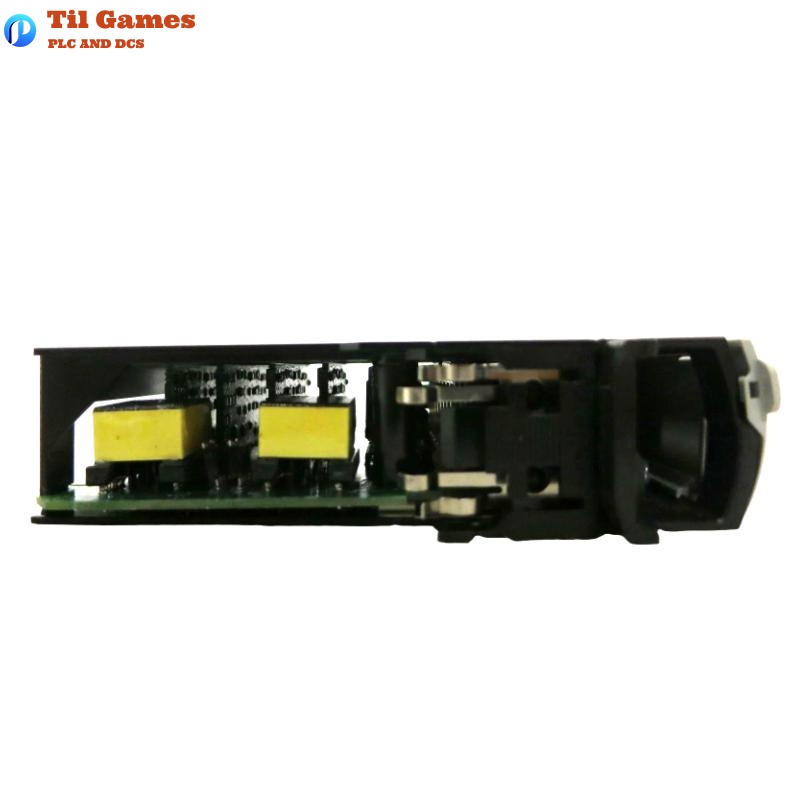

Honeywell TK-IXR061 RTD Input Module

FAQ

Q1: What types of RTDs are supported by the TK-IXR061 module?
A1: It supports standard Pt100 platinum RTDs using 3-wire connections.

Q2: Does the module offer channel-to-logic isolation?
A2: Yes, each input channel is electrically isolated from the logic circuitry.

Q3: How many input channels are available on the TK-IXR061?
A3: The module provides six RTD input channels.

Q4: Is there any diagnostic capability for open-circuit detection?
A4: Yes, the module includes diagnostics for detecting open circuit conditions.

Q5: How is the module mounted?
A5: It is rack-mounted and fits standard Honeywell ControlEdge IO chassis.

Q6: What is the supported temperature measurement range?
A6: Typically from -200°C to +850°C, depending on the RTD used.

Q7: What is the typical input update rate for this module?
A7: Typically less than 500 milliseconds, suitable for real-time monitoring.

Q8: What are the environmental operating conditions for this module?
A8: Operating temperature is 0°C to 60°C, storage from -40°C to 85°C, and humidity from 5% to 95% non-condensing.
