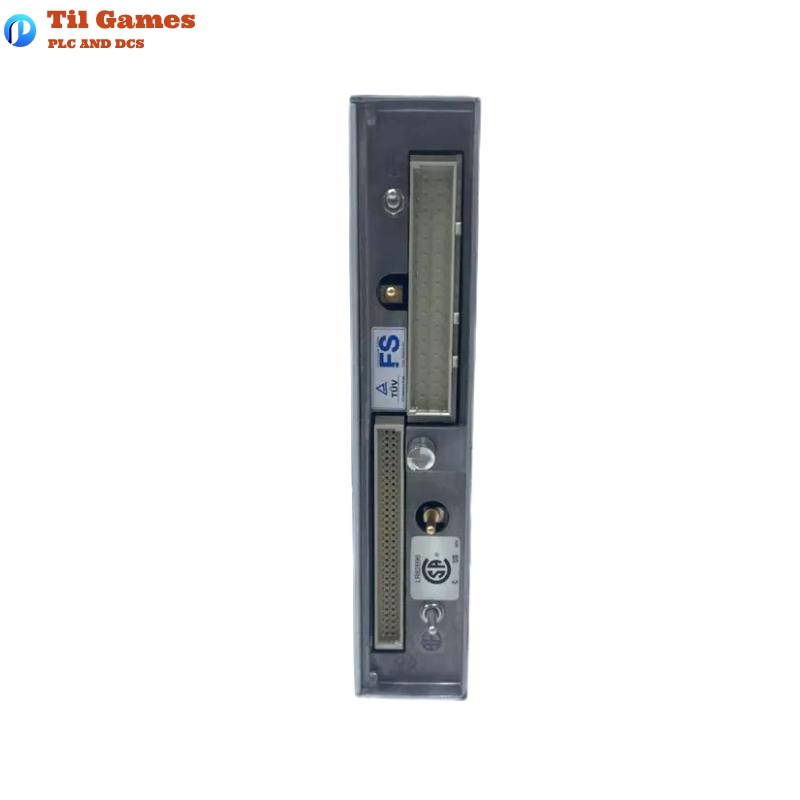

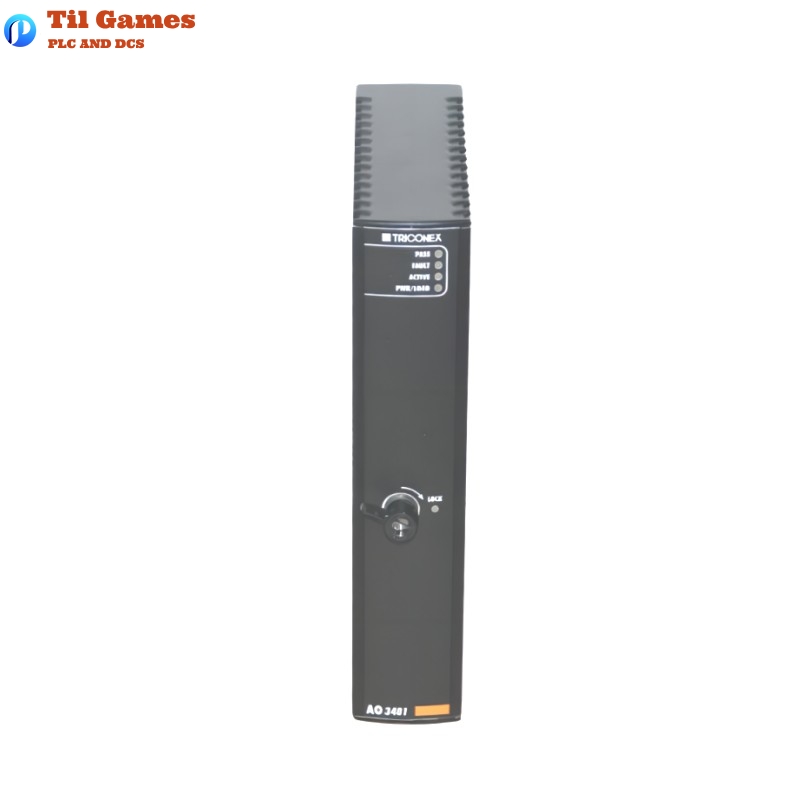

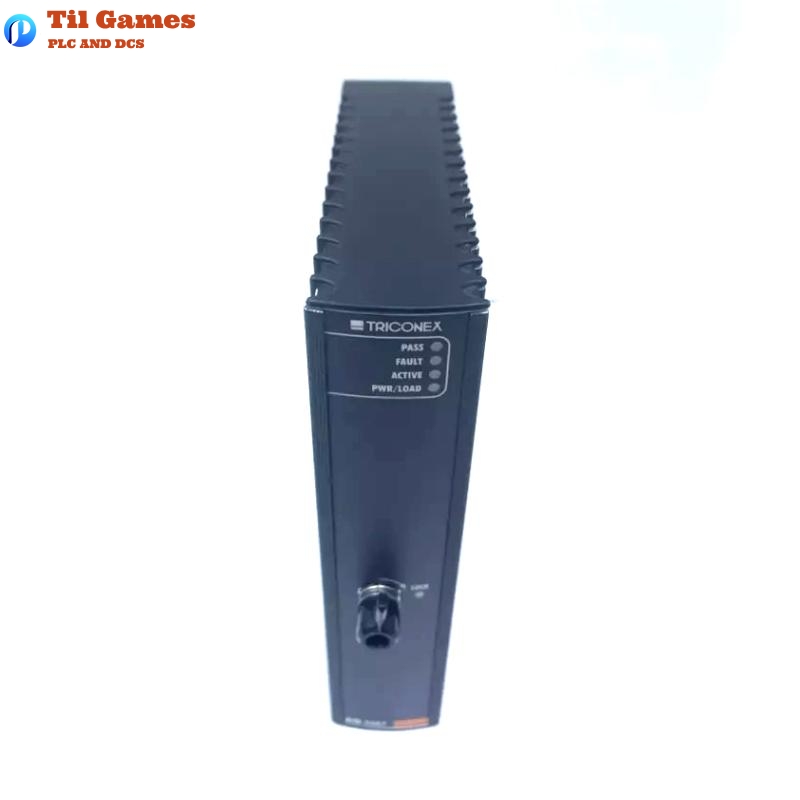

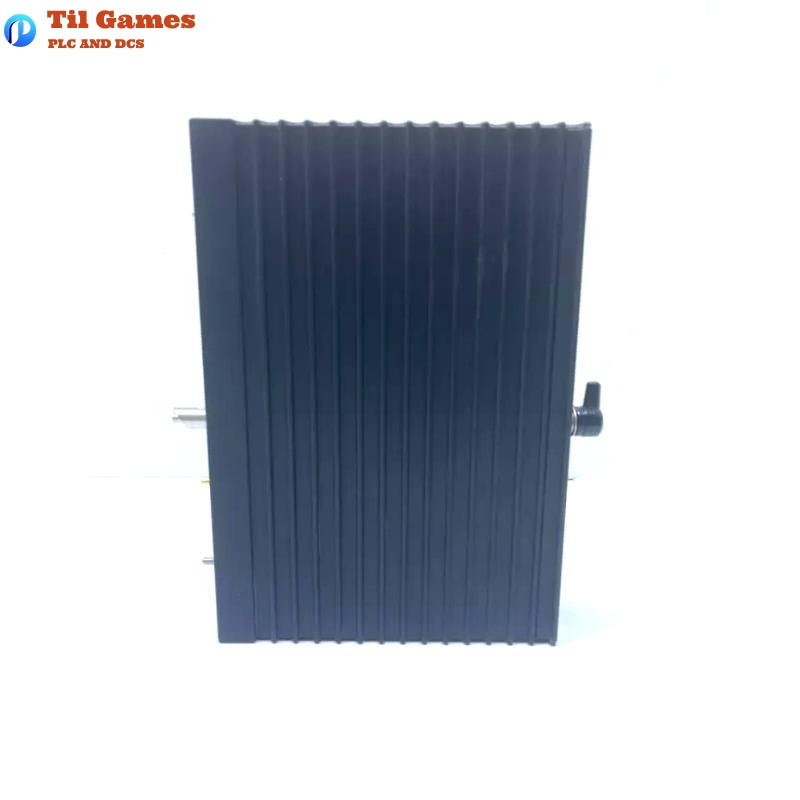

Triconex 3481 Analog Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the 3481 module support?
A1: The Triconex 3481 module supports 4 output channels, all with common return and DC coupling.

Q2: What is the output current range of this module?
A2: The output current range is 4–20 mA, with control for over-range up to 0–22 mA.

Q3: What is the output accuracy of the module?
A3: The output accuracy is less than 0.25% (within the 4–20 mA range), valid from 32°F to 158°F (0°C to 70°C).

Q4: What is the resolution of the module?
A4: The module has a 12-bit resolution.

Q5: Does the module support diagnostics?
A5: Yes, the module supports forced-switch diagnostics (FSD), allowing detection of output faults.

Q6: What is the external loop power requirement for this module?
A6: The external loop power requirement is 32 VDC maximum, with a nominal value of 24 VDC.

Q7: Does the module provide over-range protection?
A7: Yes, the module provides continuous over-range protection at 36 VDC, as well as continuous protection at 0 VDC.

Q8: What are the dimensions and weight of the module?
A8: The dimensions are 173 x 117 x 25 mm, and the weight is 0.5 kg.

3481 Analog Output Module Triconex

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
