Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 3604A |
| Module Type | Digital Output Module |
| Output Type | 24 VDC, Opto-Isolated, Non-commoned |
| Number of Output Points | 16 |
| Output Voltage Range | 18 to 32 VDC |
| Output Current per Point | 0.5 A (maximum) |
| Output Channel Isolation | Yes (each channel opto-isolated) |
| Redundancy | Triple-Modular Redundant (TMR) architecture |
| Diagnostic Features | Loopback detection, Output Voter Diagnostic (OVD) |
| Field Wiring Connection | Via field termination assemblies |
| Hot Spare Support | Yes |

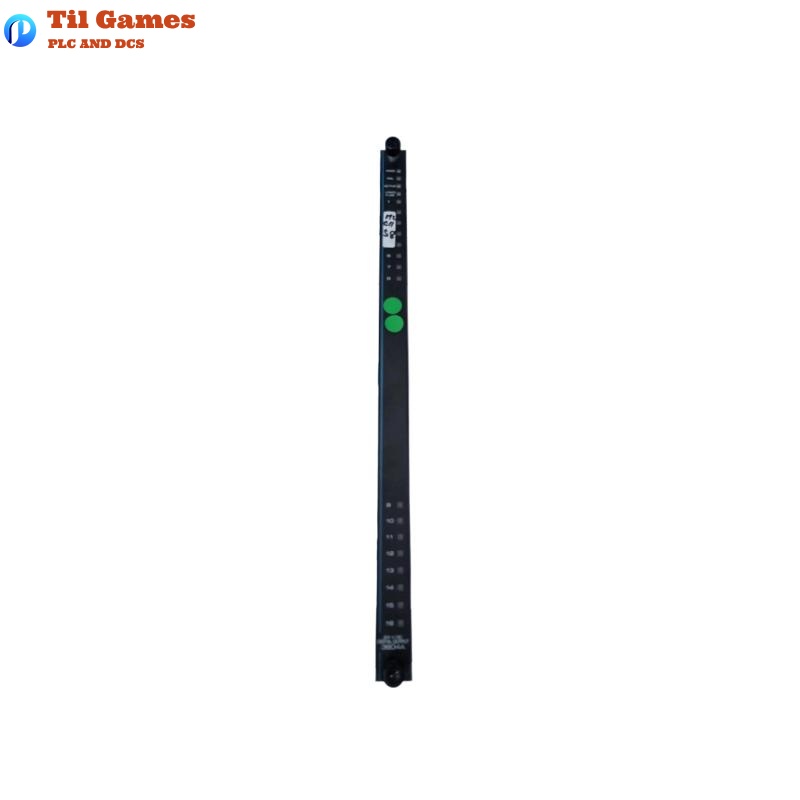

| Status Indication | LEDs per point |
| Dimensions | 270 x 100 x 40 mm |
| Weight | 0.249 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 75°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 2 G @ 10 to 150 Hz |
| Shock Resistance | 15 G for 6-11 ms |
FAQ
FAQ
Q1: How many digital output points does the 3604A module support?
A1: It supports 16 digital output points at 24 VDC.
Q2: Does the module support hot spare functionality?
A2: Yes, the 3604A supports hot spare capability for online replacement.
Q3: What is the maximum output current per point?
A3: Each point can deliver up to 0.5 A.
Q4: Does the module have diagnostic capabilities?
A4: Yes, it features loopback detection and Output Voter Diagnostics (OVD).
Q5: Are the output channels isolated?
A5: Yes, each output channel is opto-isolated to ensure safety.
Q6: What are the module’s dimensions and weight?
A6: Dimensions are 270 x 100 x 40 mm; weight is 0.249 kg.
Q7: What is the operating temperature range?
A7: Operating temperature is from 0°C to 60°C; storage range is -40°C to 75°C.
Q8: What status indicators are available on the module?
A8: Each point is equipped with LED indicators for output and fault status.
