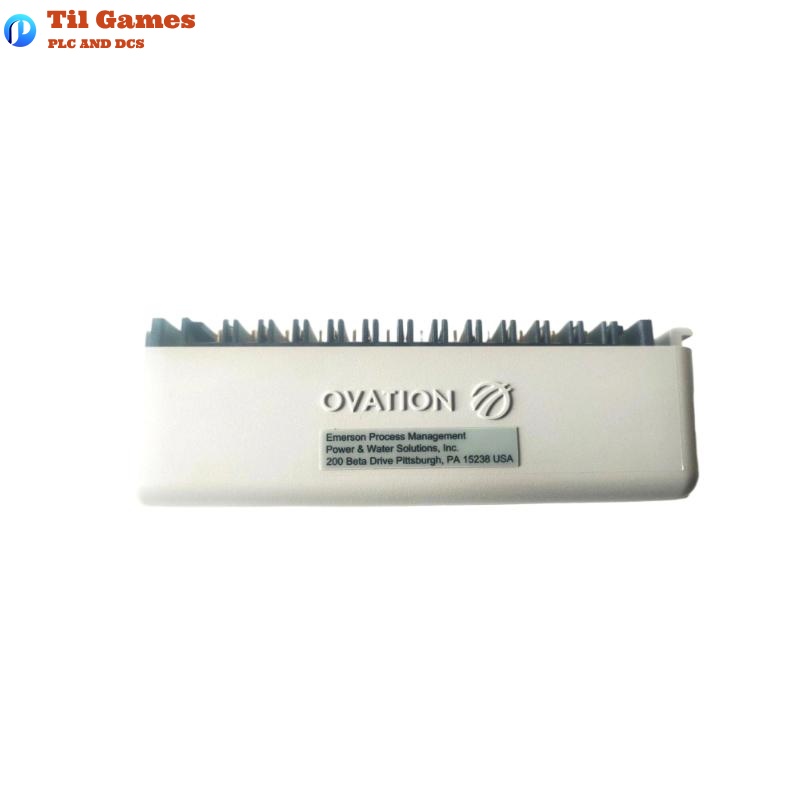

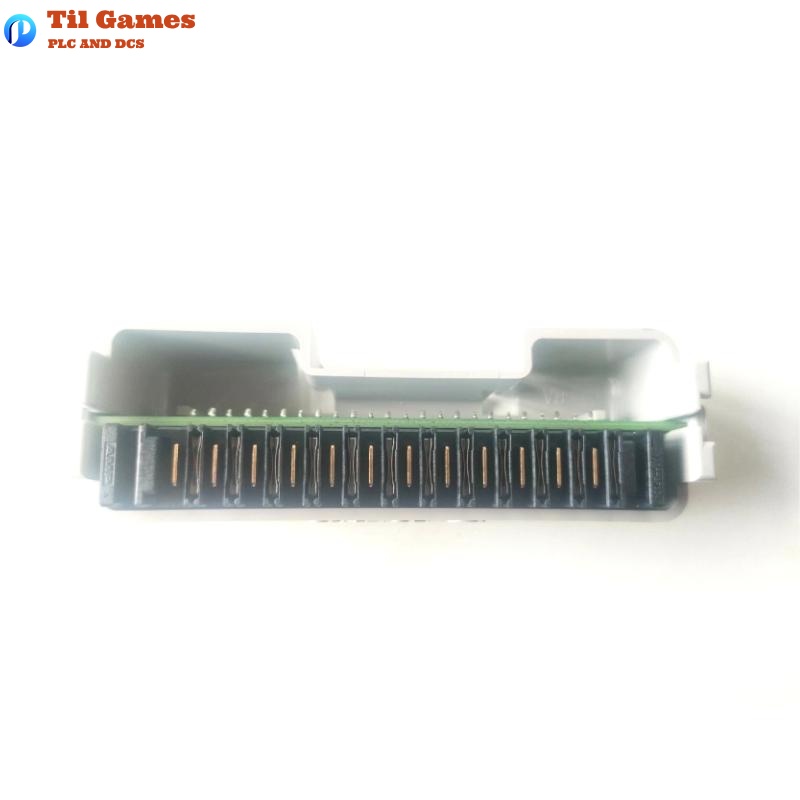

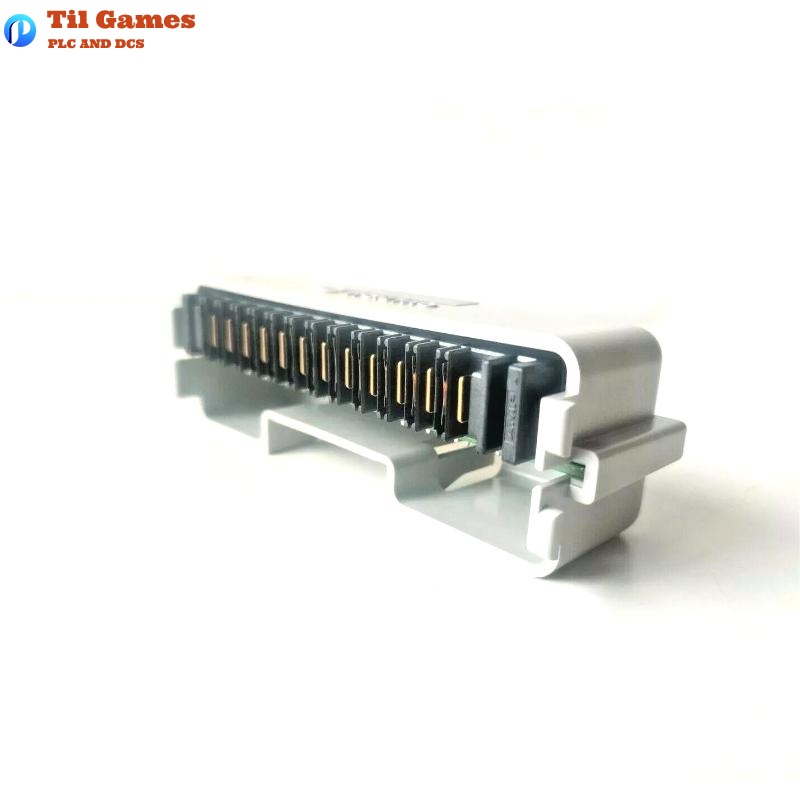

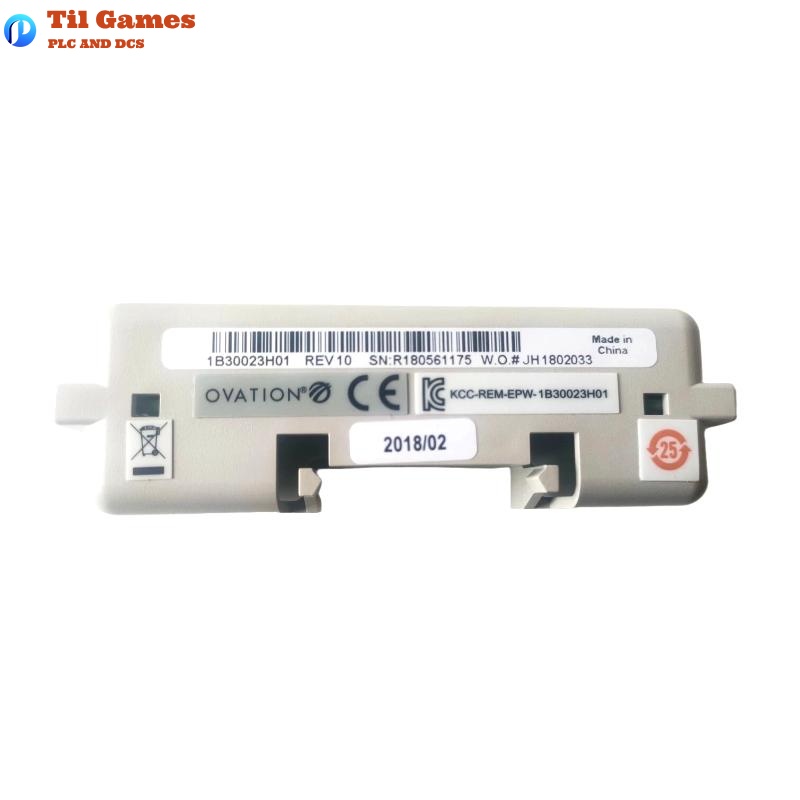

OVATION 1B30023H01 I/O Bus Terminator Module

Frequently Asked Questions (FAQ)

Q1: What is the primary function of this module?
A1: It terminates the Ovation I/O bus to prevent signal reflections and maintain stable data communication.

Q2: Which Ovation system versions is it compatible with?
A2: It is typically compatible with all Ovation platforms that support I/O bus termination, both legacy and modern.

Q3: Should this module be installed in the last I/O slot?
A3: Yes, it is designed to be installed at the end of the bus chain for proper termination.

Q4: Is it hot-swappable?
A4: No, the module should be installed or replaced only when the system is powered down.

Q5: Does it require any programming or configuration?
A5: No programming is required. It is a passive hardware module for physical termination only.

Q6: What happens if this module is not installed?
A6: Absence of a terminator can result in signal reflections, communication faults, or system instability.

Q7: What modules are typically used with it?
A7: It is commonly used with standard I/O modules such as 1B30035H01 and various analog/digital modules.

Q8: Is this module certified or tested?
A8: Yes, it is a factory-certified Emerson spare part, subject to rigorous quality control.

1B30023H01 I/O Bus Terminator Module OVATION
