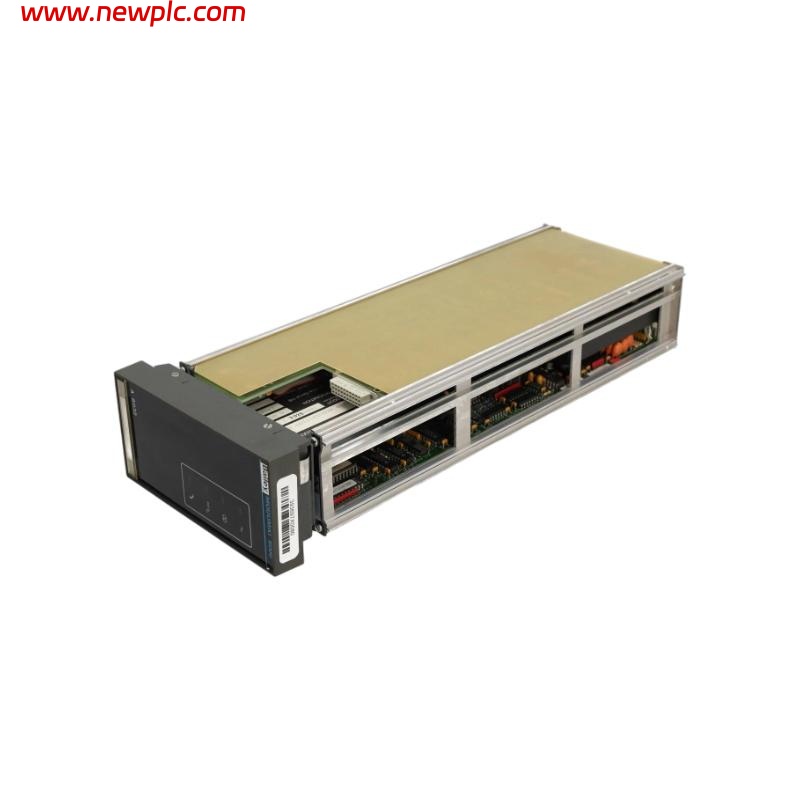

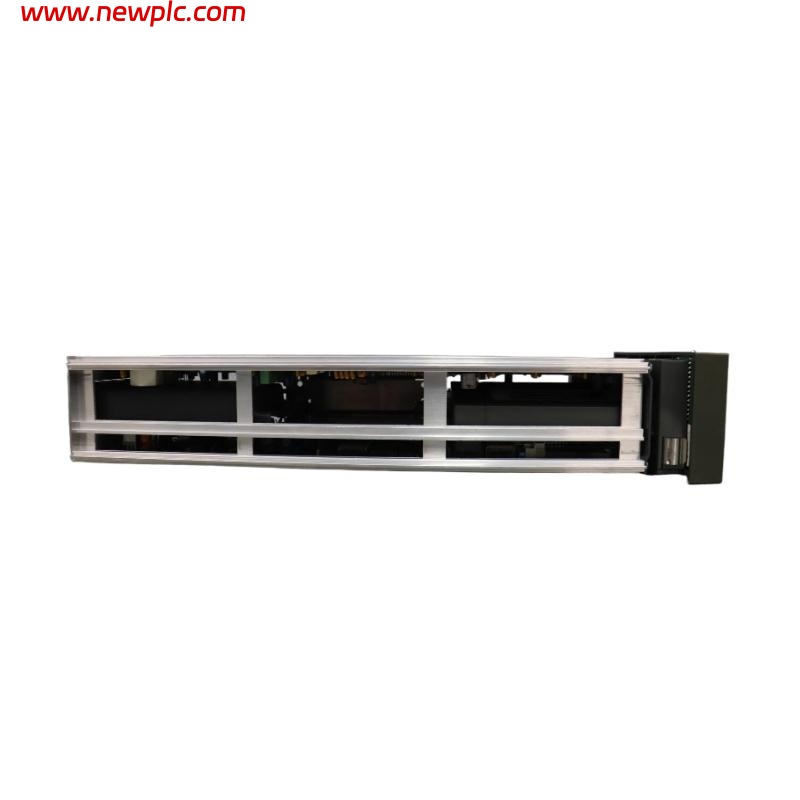

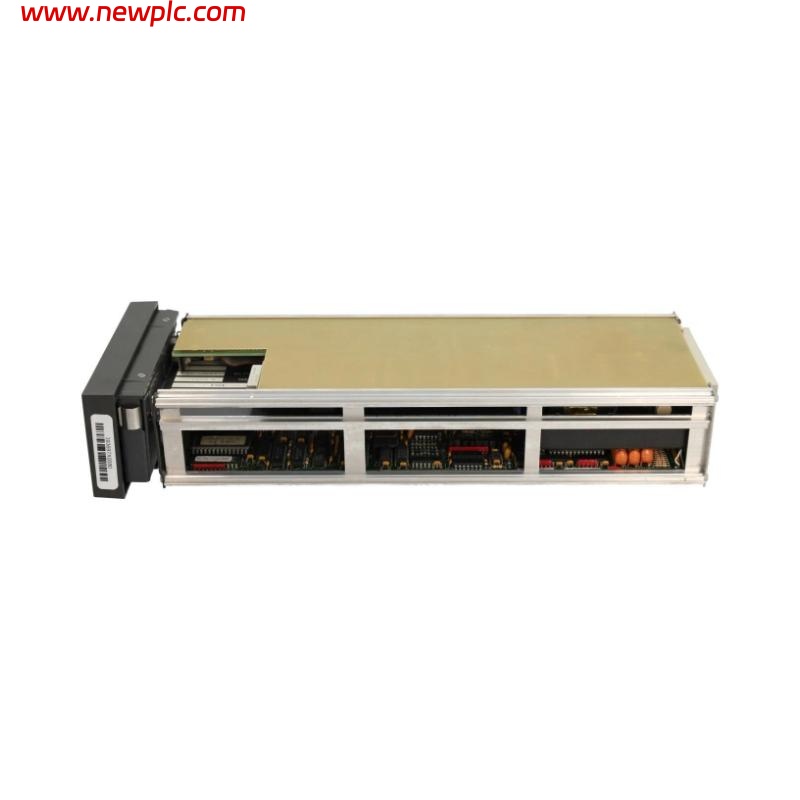

Ovation 1D54561G01 Loop Interface Module

FAQ

Q1: What is the main function of the 1D54561G01?
A1: Transfers 4–20 mA field signals safely to the Ovation control system, providing signal isolation and interface conversion.

Q2: What types of input signals are supported?
A2: Supports 4–20 mA analog input signals.

Q3: What types of output signals are supported?
A3: Supports 4–20 mA analog output signals.

Q4: How many loops are supported?
A4: Supports 8 loops.

Q5: Is isolation supported?
A5: Yes, provides opto-isolation for signal safety.

Q6: What are the power supply and power consumption?
A6: Power supply is 24 V DC, and power consumption is 6 W.

Q7: What are the dimensions and weight of the module?
A7: Dimensions are 326 x 125 x 54 mm, and weight is 1.0 kg.

Q8: What mounting options are available?
A8: Can be mounted on a panel or rack.

1D54561G01 Loop Interface Module OVATION
