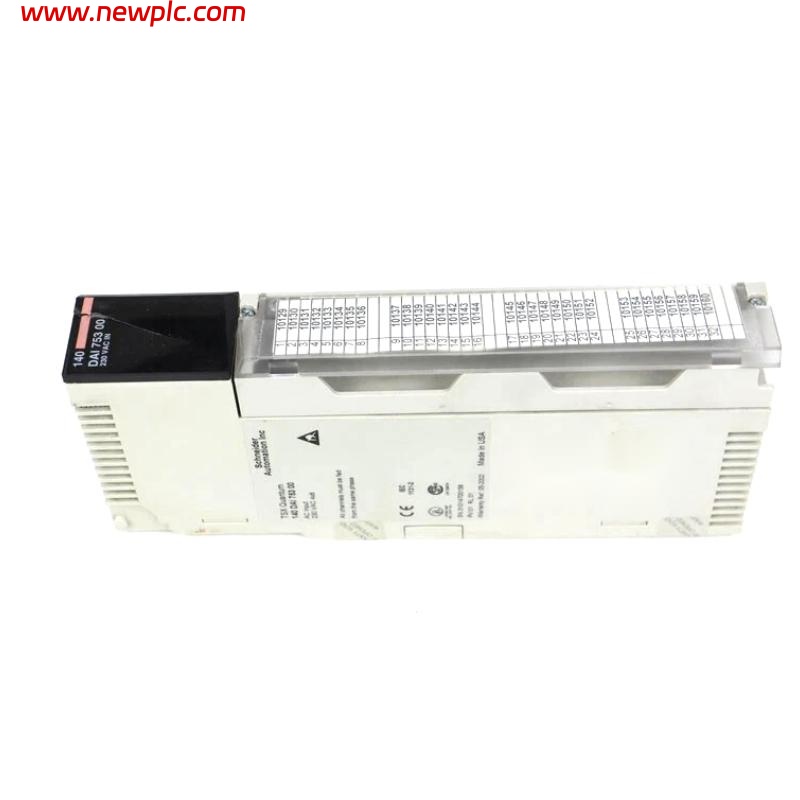

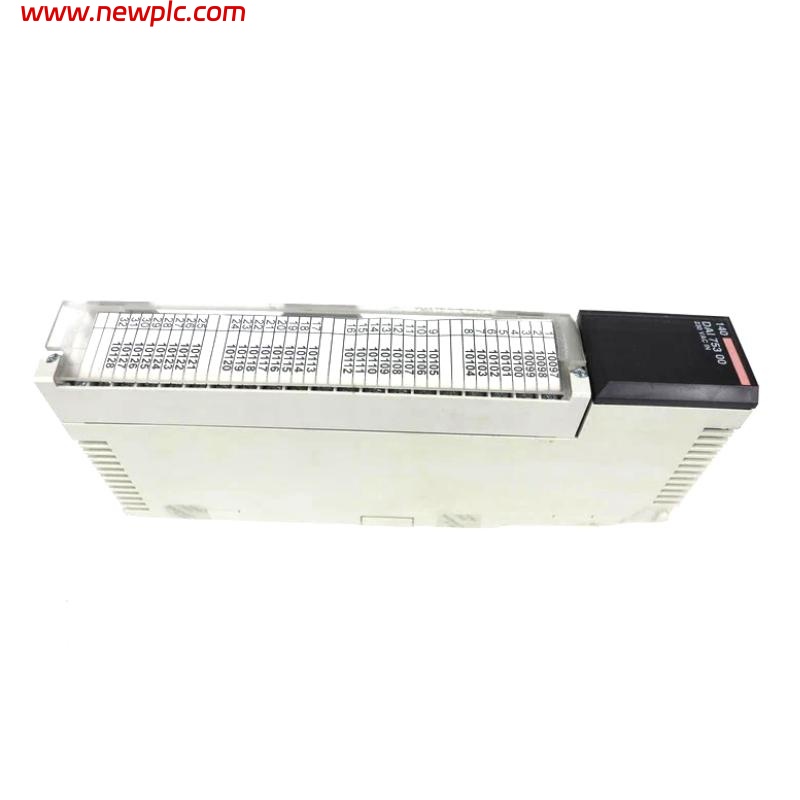

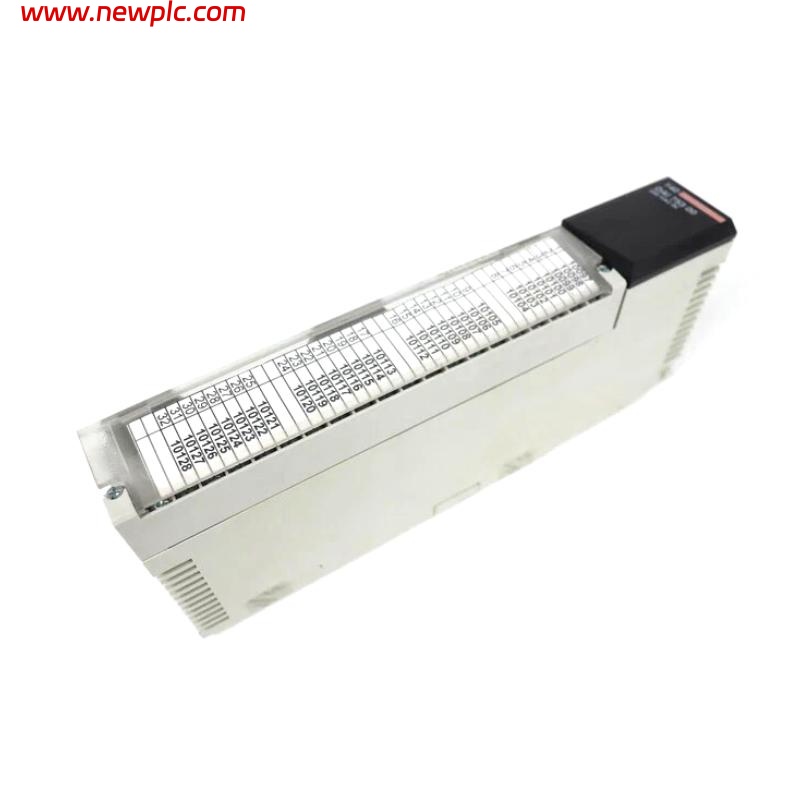

Schneider 140DAI75300C Discrete Input Module

FAQ

Q1: What type of module is the 140DAI75300C?
A1: The 140DAI75300C is a 32-point 24VDC positive logic discrete input module.

Q2: What is the supported input voltage of the 140DAI75300C?
A2: Its nominal input voltage is 24 VDC.

Q3: How much current does each input point draw?
A3: Each input point draws 7 mA at 24 VDC.

Q4: What is the isolation voltage of the 140DAI75300C?
A4: The isolation voltage between inputs and logic is 500 V RMS.

Q5: What is the response time of the 140DAI75300C?
A5: The response time is ≤ 1 millisecond.

Q6: What are the dimensions and weight of the 140DAI75300C?
A6: Its dimensions are 103.9 × 40.3 × 250 mm and it weighs approximately 0.3 kg.

Q7: How is the 140DAI75300C installed?
A7: The module is mounted on the backplane of a Quantum rack.

Q8: How many slots does the 140DAI75300C occupy in a Quantum rack?
A8: It occupies one standard single slot.
