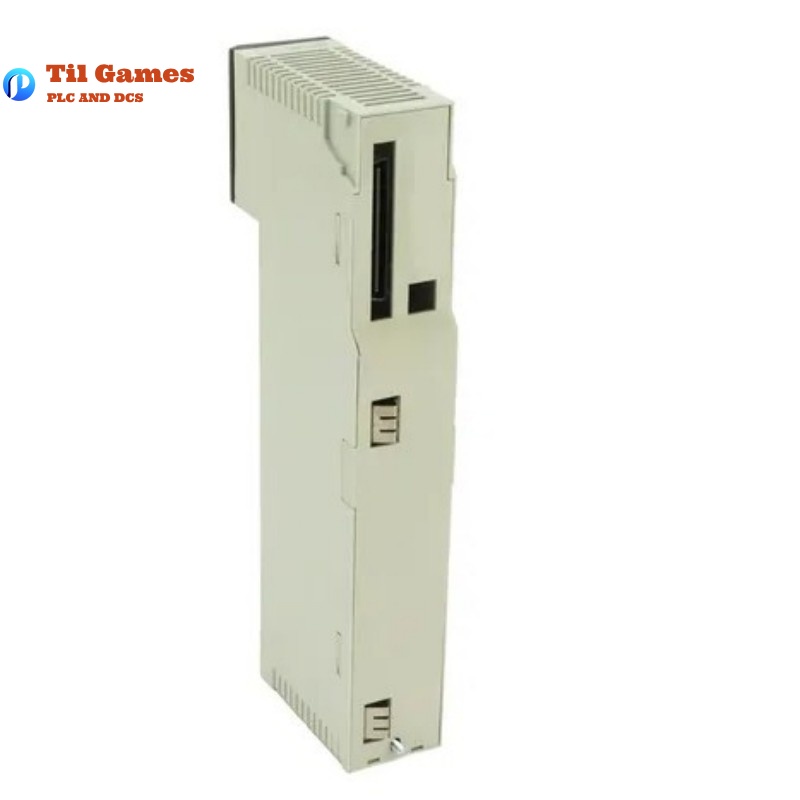

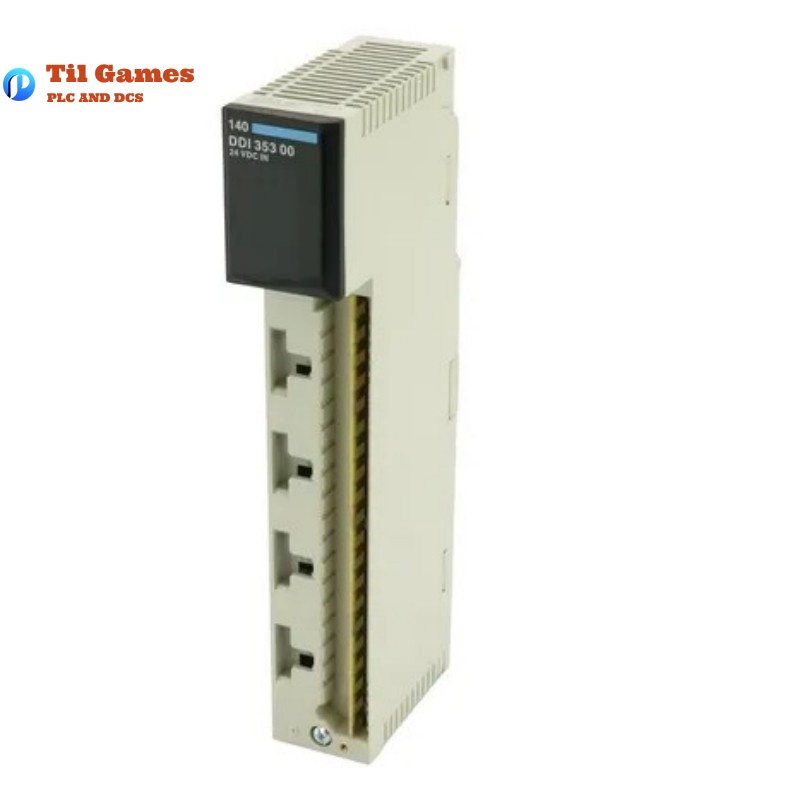

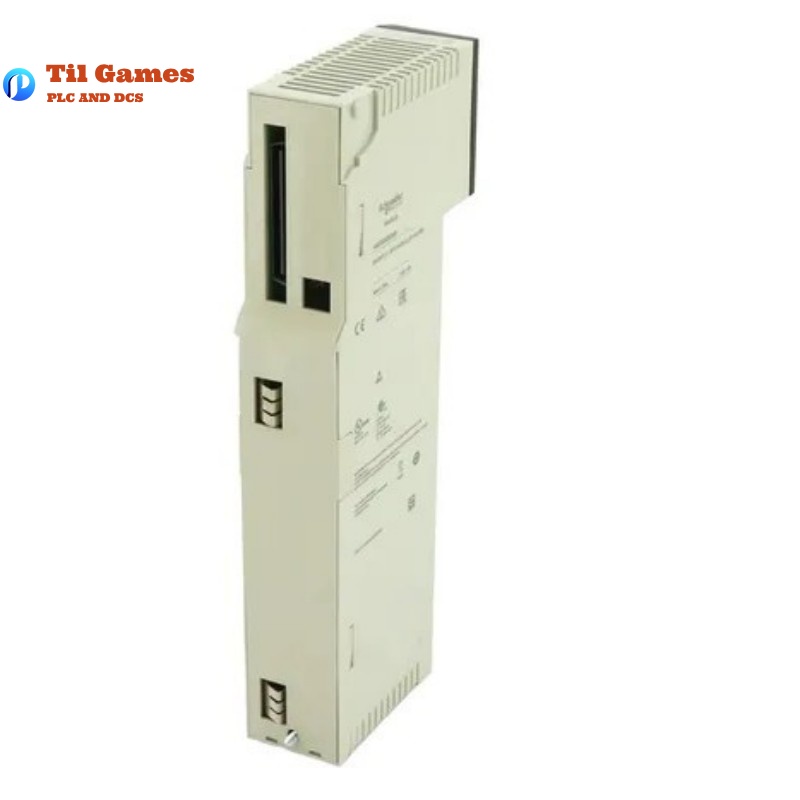

Schneider 140DDI35300 Discrete Input Module

Frequently Asked Questions (FAQ)

Q1: How many input points does the 140DDI35300 module support?
A1: The module supports 32 discrete DC input points.

Q2: What is the input logic type for this module?
A2: It uses positive logic (sink type) inputs.

Q3: What is the rated voltage for each input?
A3: Each input is rated at 24 V DC, with an acceptable range of 19.2 to 30 V.

Q4: What is the module’s input response time?
A4: The response time is less than or equal to 1 millisecond.

Q5: What are the physical dimensions of the module?
A5: The module measures 103.9 × 40.3 × 250 mm.

Q6: Does the module feature input protection?
A6: Yes, input protection is provided by a current-limiting resistor.

Q7: What is the operating temperature range?
A7: The module operates between 0 and 60 °C.

Q8: Is the module certified by international standards like CE and UL?
A8: Yes, it is certified by CE, UL, CSA, DNV, RINA, BV, GOST, and ABS.

140DDI35300 Discrete Input Module Schneider

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
