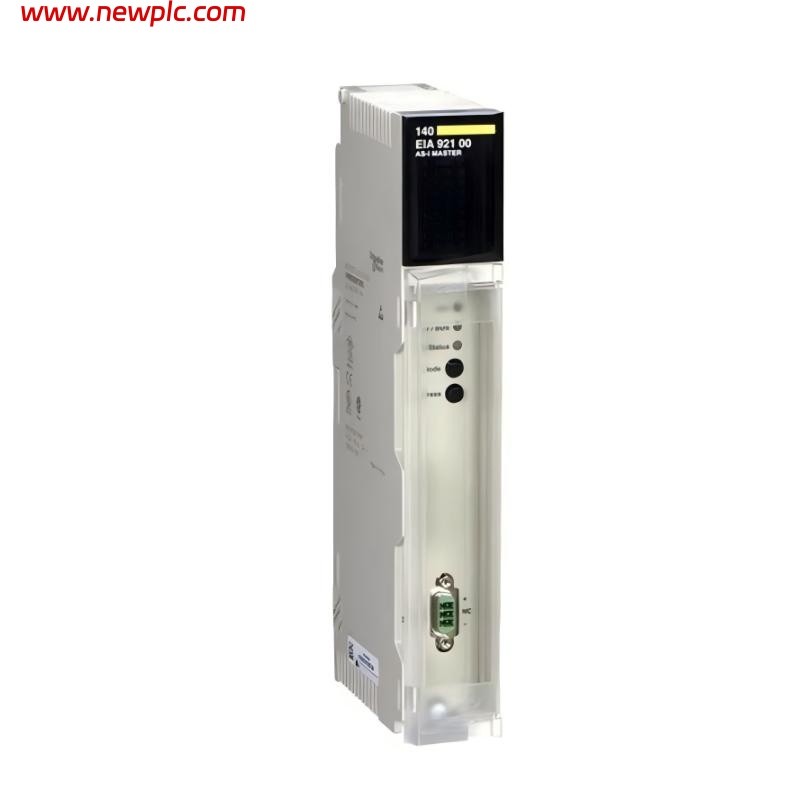

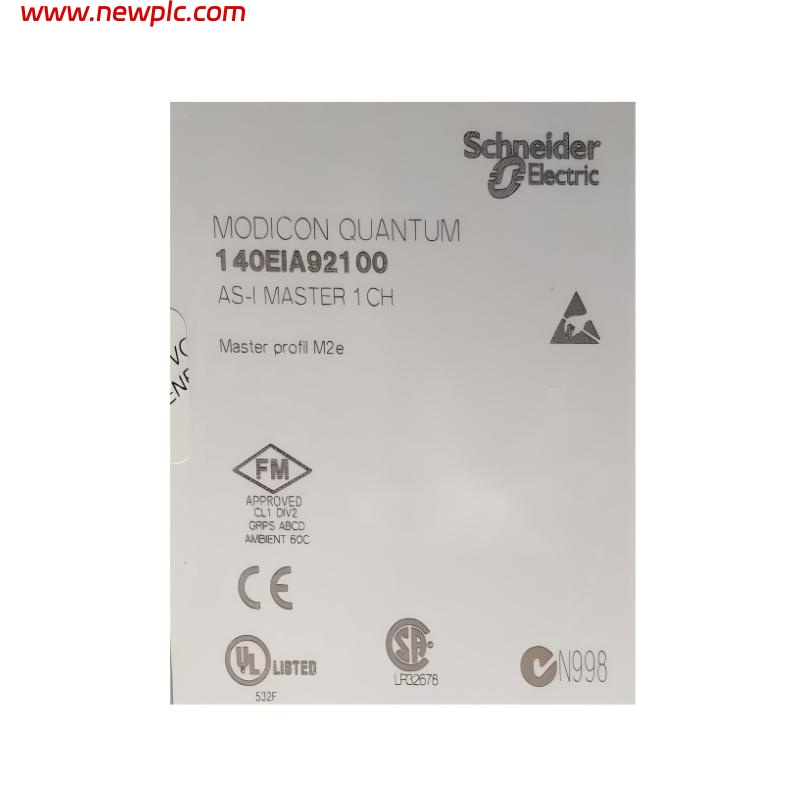

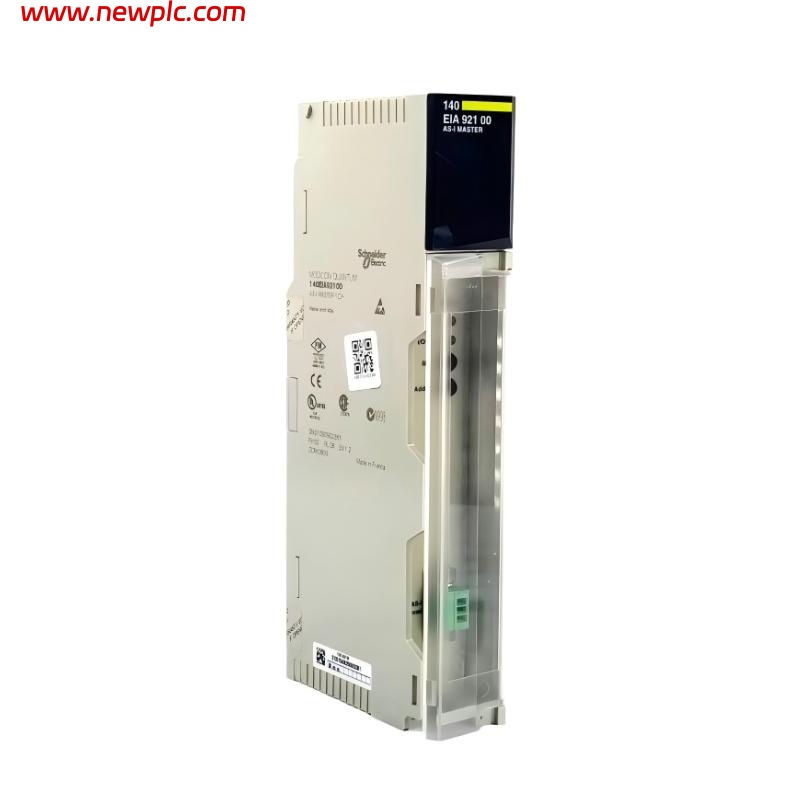

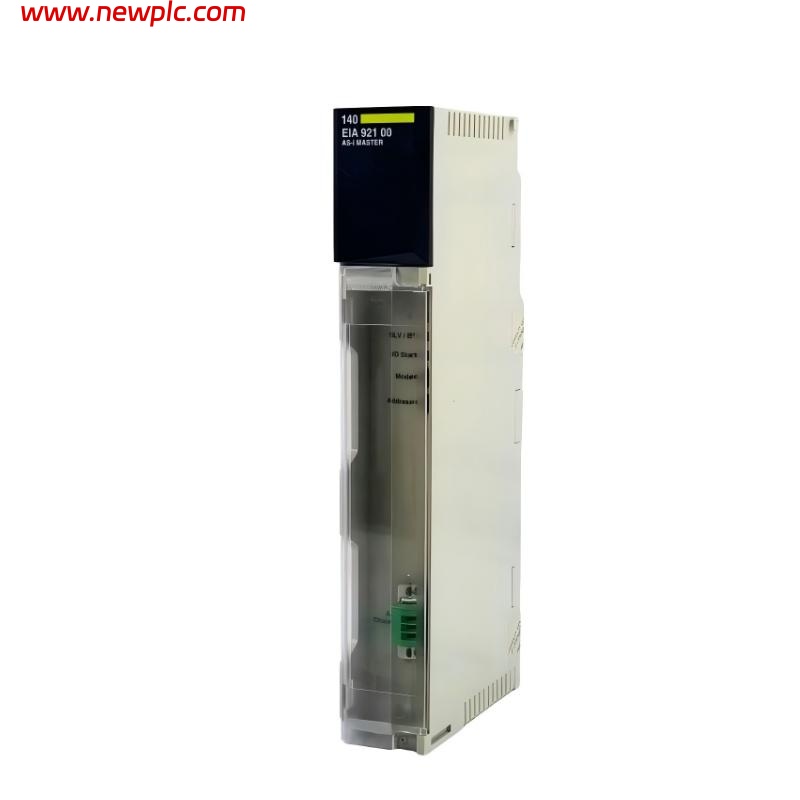

Schneider 140EIA92100 AS-Interface Master Module

FAQ

Q1: What is the primary function of the 140EIA92100 AS-Interface Master Module?
It serves as the interface between the Modicon Quantum controller and AS-Interface (AS-i) field devices, allowing communication and data exchange with connected sensors and actuators.

Q2: How many AS-i slave devices can this module manage?
The module can control up to 31 standard AS-i slaves, or up to 62 when using extended addressing mode.

Q3: What communication speed does the module support?
It operates at a data transmission rate of 167 kbit/s, compliant with AS-Interface network standards for efficient data transfer.

Q4: Is the module compatible with other Schneider systems?
Yes, it is fully compatible with Schneider Electric’s Modicon Quantum series PLCs and can be easily integrated through the I/O backplane.

Q5: What diagnostic features are available on this module?
The module provides comprehensive diagnostics including power status, communication errors, and module health through both LED indicators and software monitoring.

Q6: What kind of isolation does the 140EIA92100 provide?
It offers 500 V RMS isolation between the fieldbus network and system electronics to ensure safety and reduce electrical interference.

Q7: What power supply is required for the module to operate?
The module operates with a 24 V DC supply provided through the backplane connection from the main PLC rack.

Q8: What are the common industrial applications for this module?
It is widely used in factory automation, process control, and distributed I/O systems where AS-Interface field devices are integrated into Modicon Quantum control systems.

140EIA92100 AS-Interface Master Module Schneider Schneider 140EIA92100
