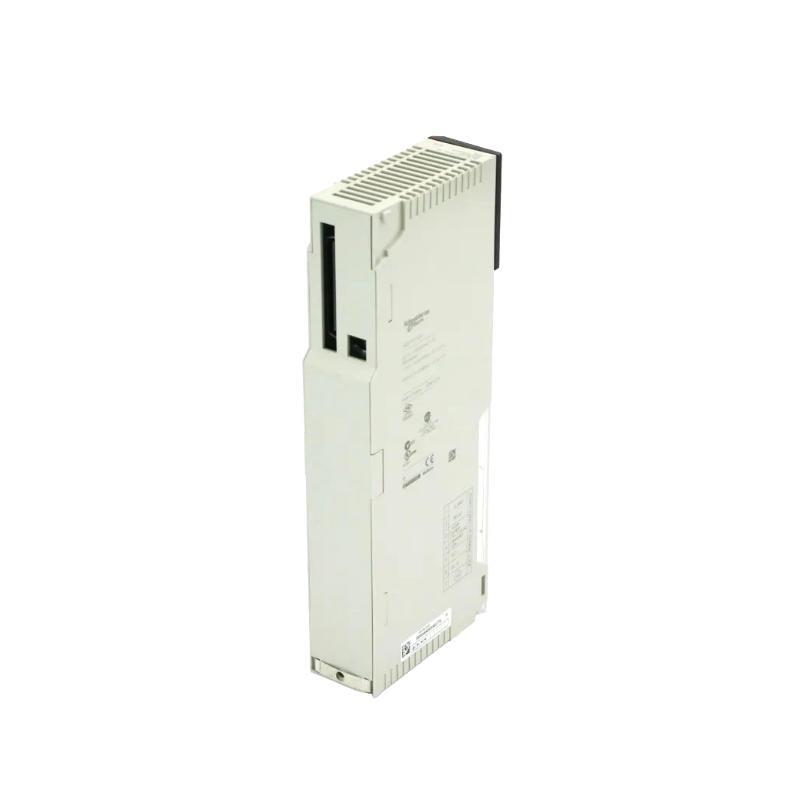

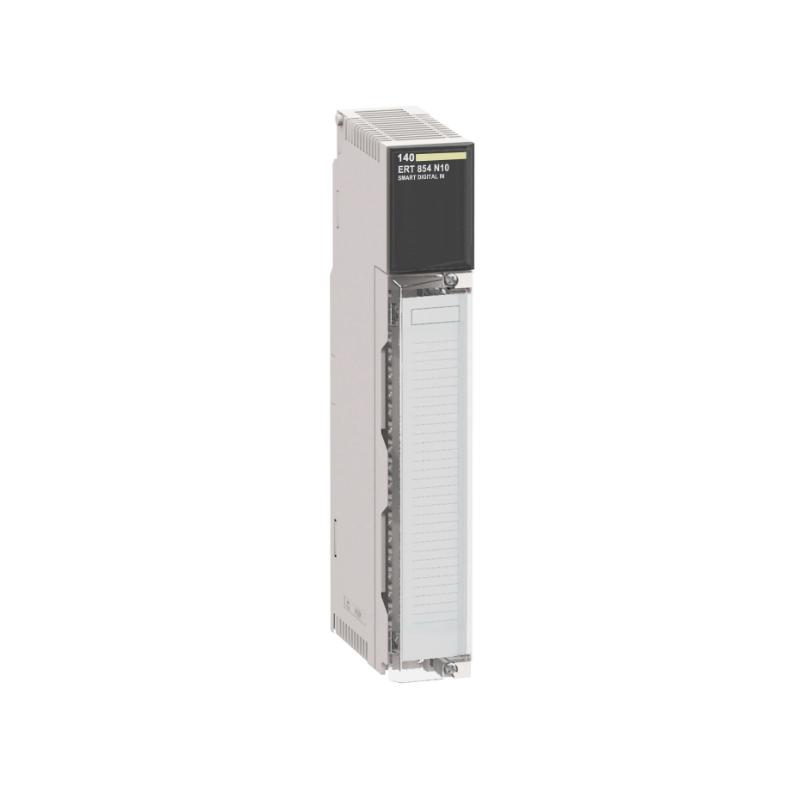

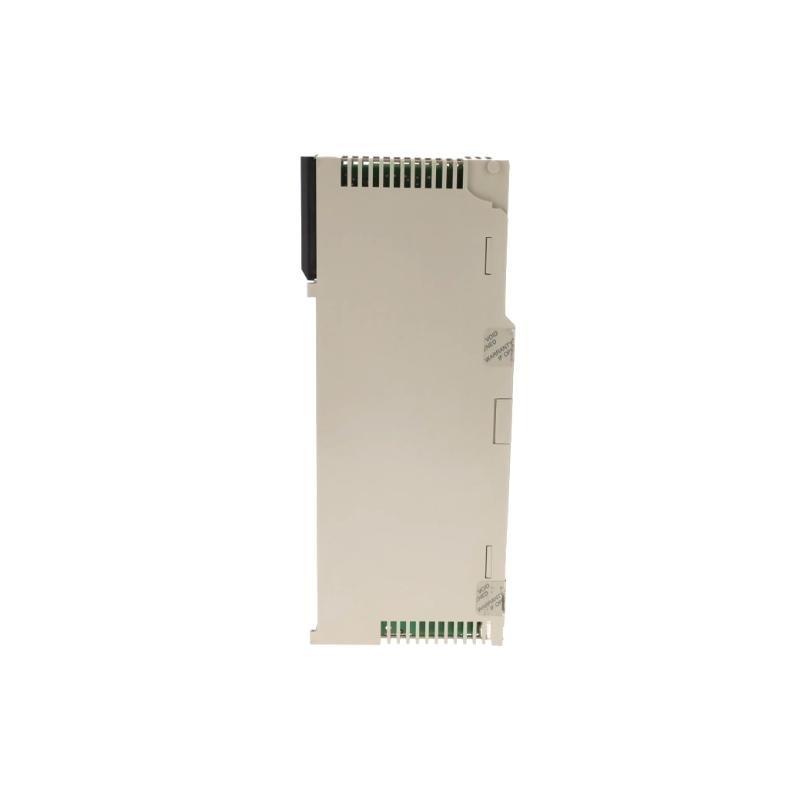

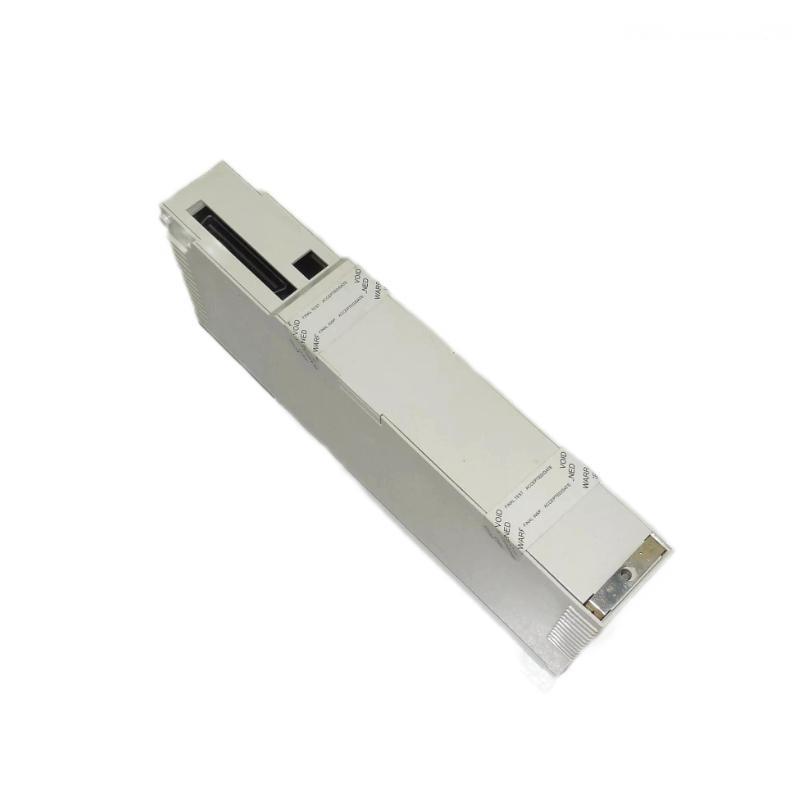

Schneider 140ERT85410 Multifunction Input Module

Frequently Asked Questions (FAQ)

Q1: What is the function of the 140ERT85410 module?
A1: It performs discrete input monitoring, event logging with time stamping, and high-speed counting up to 500 Hz.

Q2: How many discrete inputs are supported?
A2: The module supports 32 discrete process inputs and 1 clock input.

Q3: What type of input signal is supported?
A3: It supports 24 to 125 VDC discrete signals for process inputs and a 24 VDC clock signal.

Q4: What is the filtering capability for signal debouncing?
A4: The anti-bounce filtering is configurable from 0 to 255 ms.

Q5: Can this module operate in high-altitude environments?
A5: Yes, it operates up to 5000 meters above sea level.

Q6: What are the electrical insulation methods used?
A6: It uses optocoupler insulation for both the clock input and between input groups.

Q7: What certifications does the 140ERT85410 module hold?
A7: It holds CSA Class 1 Div 2, UL, LR, C-Tick, GOST, and Merchant Navy certifications.

Q8: What is the physical size and weight of the module?
A8: The dimensions are 103.9 × 40.3 × 250 mm, and the weight is 0.45 kg.

140ERT85410 Multifunction Input Module Schneider
