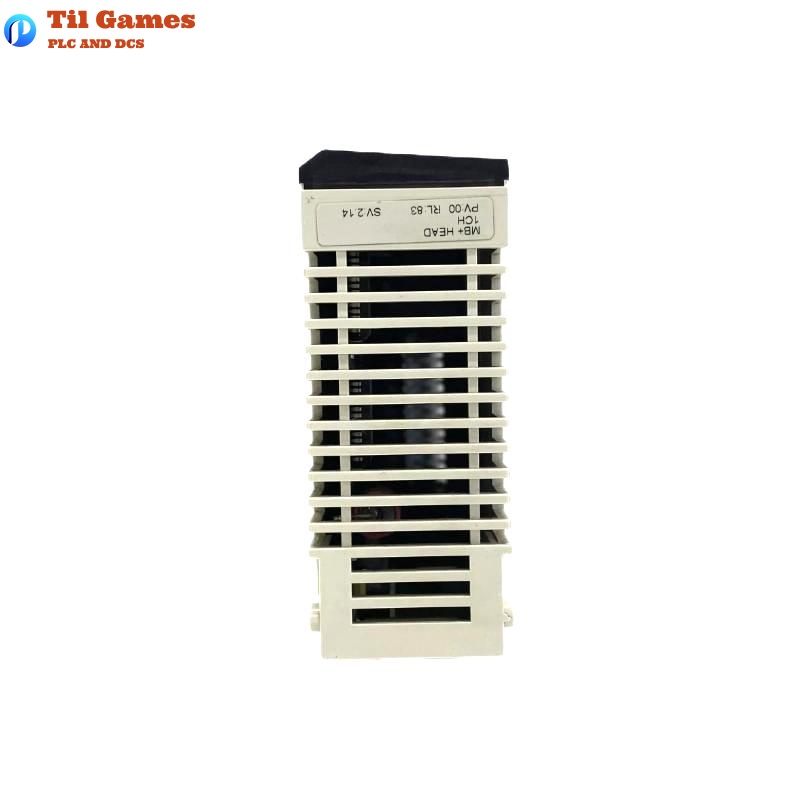

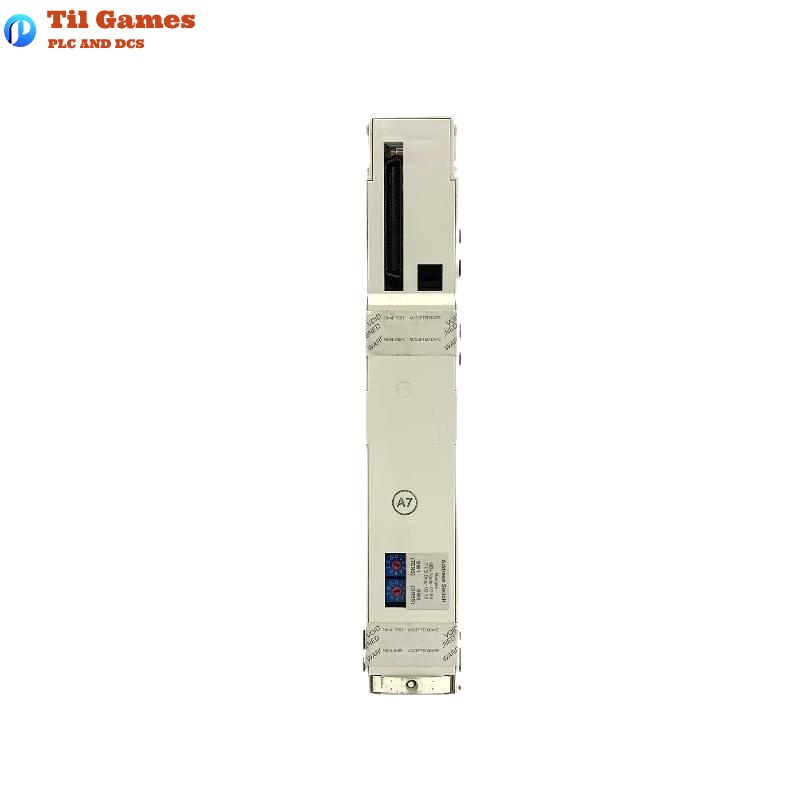

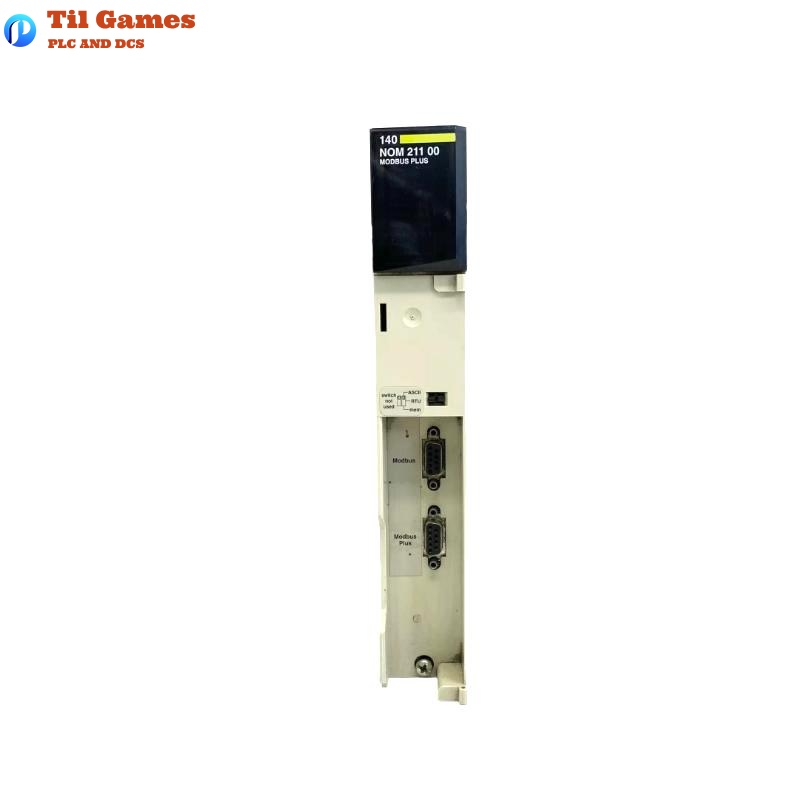

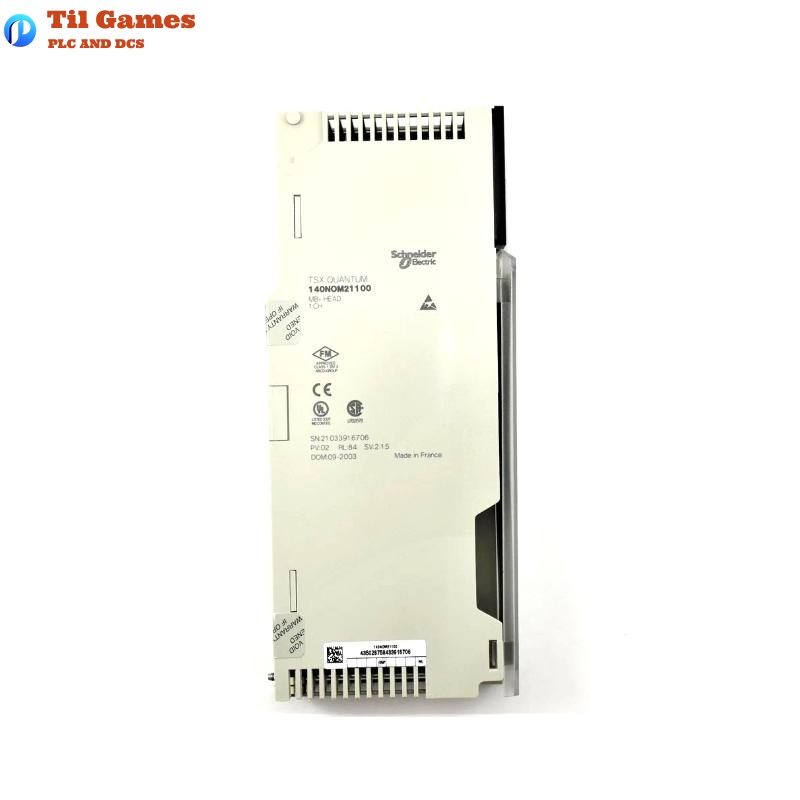

Schneider 140NOM21100 DIO Head-End Adaptor

Frequently Asked Questions (FAQ)

Q1: What is the main function of the 140NOM21100 module?
A1: It serves as a head-end adaptor for distributed I/O systems in the Modicon Quantum platform.

Q2: How many communication ports are provided?
A2: It provides two ports: one Modbus Plus RS485 and one Modbus RS232.

Q3: Is it compatible with other Quantum modules?
A3: Yes, it is compatible with 140CRA21120 and 140CRA21110 modules.

Q4: What is the transmission speed supported?
A4: The module supports a transmission rate of 1 Mbit/s.

Q5: How many I/O words are handled by the module?
A5: It handles 30 input words and 32 output words.

Q6: What are the environmental limits for operation?
A6: The operating temperature range is 0 to 60 °C, with up to 95% non-condensing humidity.

Q7: What standards and certifications does the module meet?
A7: It complies with UL 508 and is certified by CSA, RMRS, FM (Class 1 Div 2), C-Tick, and GOST.

Q8: What is the physical size and weight of the unit?
A8: The unit measures 103.9 × 40.3 × 250 mm and weighs 0.482 kg.

140NOM21100 DIO Head-End Adaptor Schneider

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
