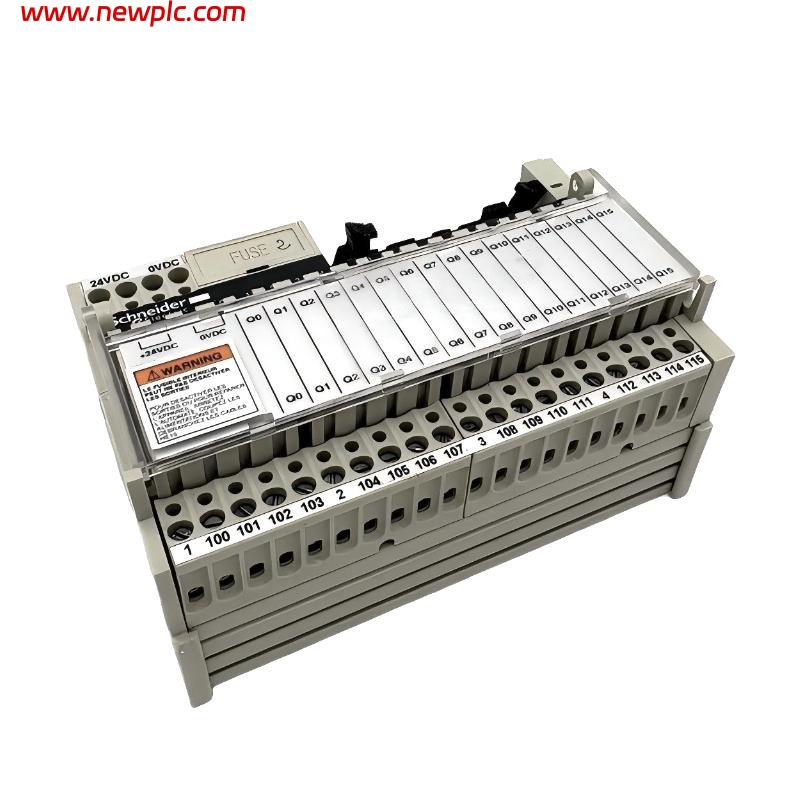

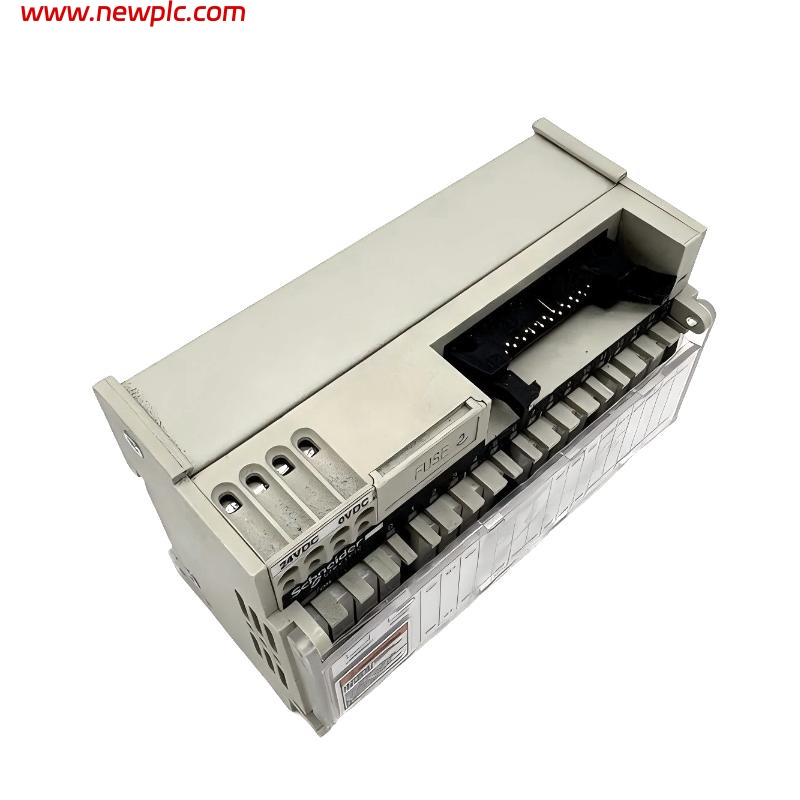

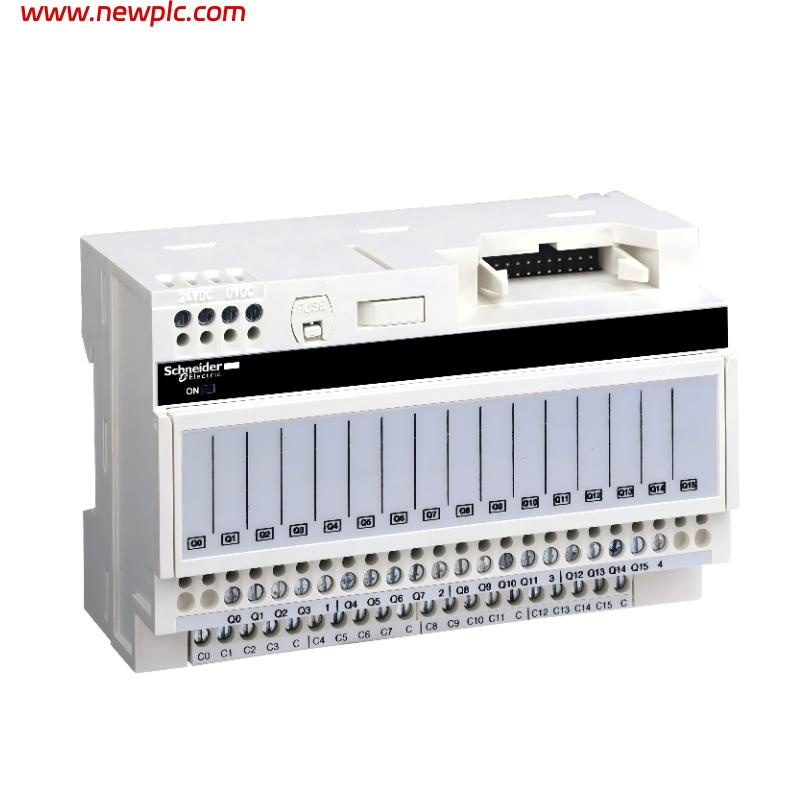

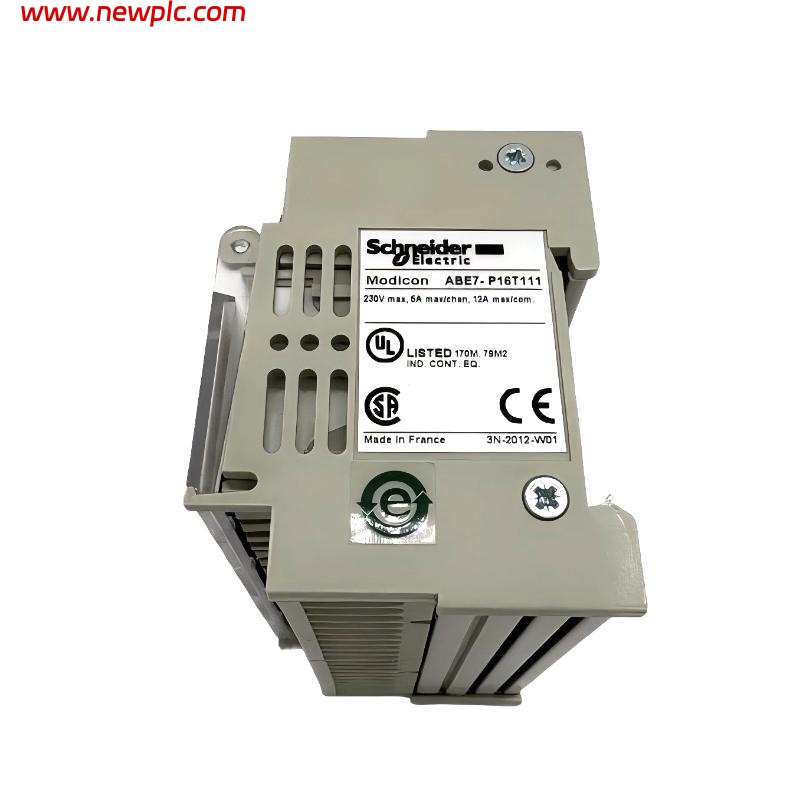

Schneider ABE7P16T111 Sub-Base For Plug-In Relay

FAQ

Q1: What is the main purpose of the ABE7P16T111 sub-base?
A1: The ABE7P16T111 sub-base is designed to serve as a secure interface for wiring field devices such as sensors and actuators to Schneider ABE7 plug-in relay modules, helping maintain organized connections and reliable signal transfer in industrial automation systems.

Q2: Does the sub-base contain any active electronics?
A2: No, this sub-base is completely passive. It contains only mechanical terminals for wiring and does not include any active electronic components or signal conditioning circuitry.

Q3: How many channels does the sub-base support, and can multiple devices be connected?
A3: The sub-base provides 16 independent channels, allowing multiple field devices to be connected simultaneously while keeping each signal separate for easy maintenance and troubleshooting.

Q4: What type of terminals are used, and are they suitable for industrial applications?
A4: Screw-type terminals are used, providing secure, vibration-resistant connections suitable for harsh industrial environments and high-reliability applications.

Q5: Is the sub-base compatible with all Schneider ABE7 plug-in relay modules?
A5: Yes, it is designed to fit the full range of Schneider ABE7 plug-in relay modules, ensuring correct mechanical alignment and electrical connection.

Q6: Can the sub-base be mounted on standard DIN rails?
A6: Yes, it is fully compatible with standard DIN rails commonly used in industrial control cabinets, allowing for easy and secure installation.

Q7: Does the sub-base require any configuration after installation?
A7: No configuration is required. Once the sub-base is mounted, field wiring can be connected immediately, simplifying installation and saving setup time.

Q8: How does the ABE7P16T111 sub-base help improve wiring organization in control panels?
A8: By centralizing and structuring all field connections into a single interface, the sub-base reduces wiring clutter, improves accessibility for maintenance, and ensures a clean layout for better signal management and troubleshooting.

ABE7P16T111 Schneider Sub-Base For Plug-In Relay
