Technical Specifications
| Parameter | Description |
|---|---|

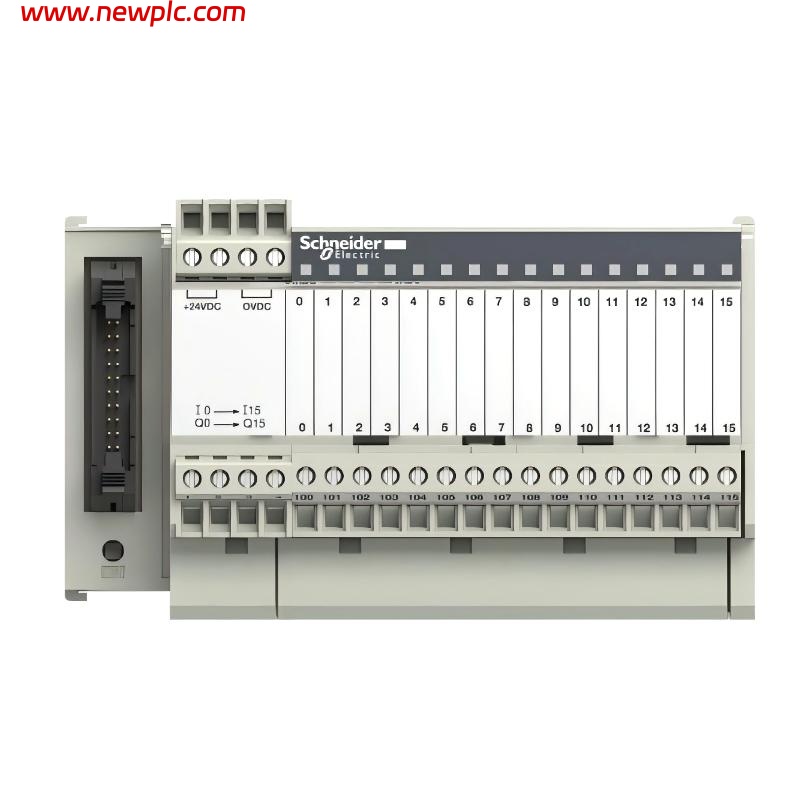

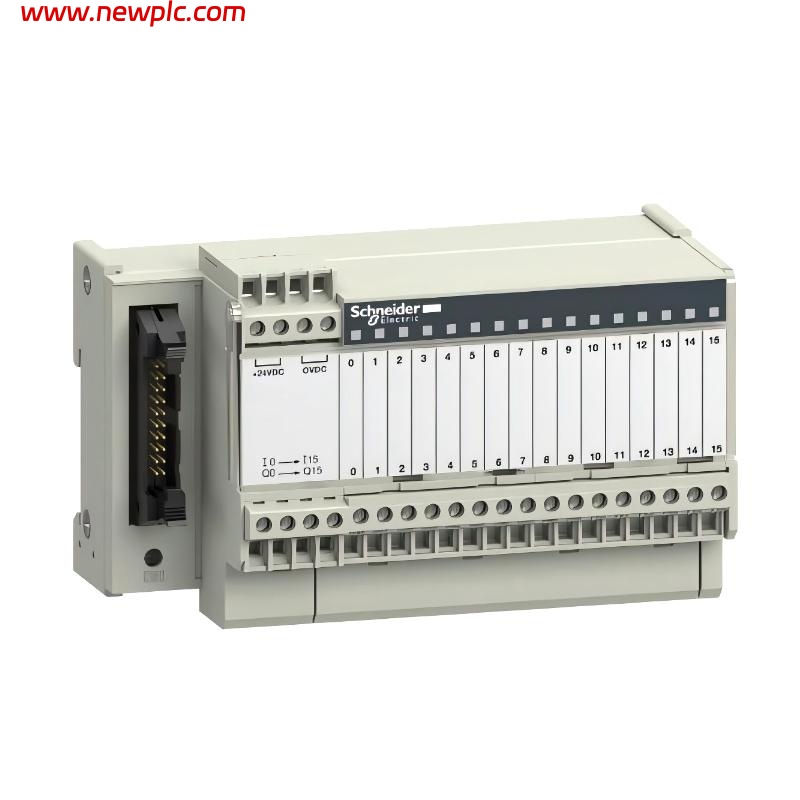

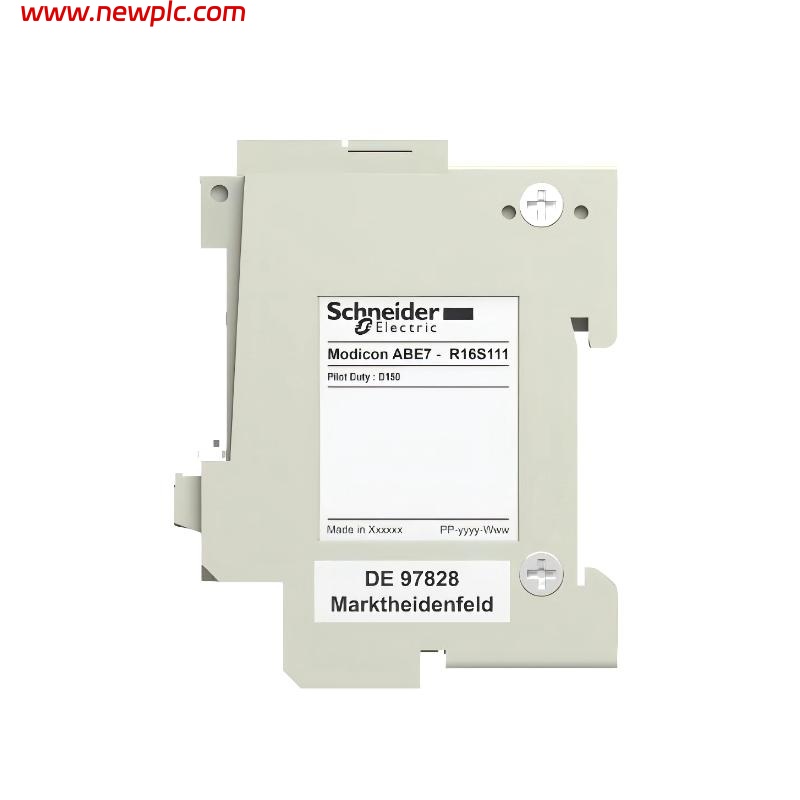

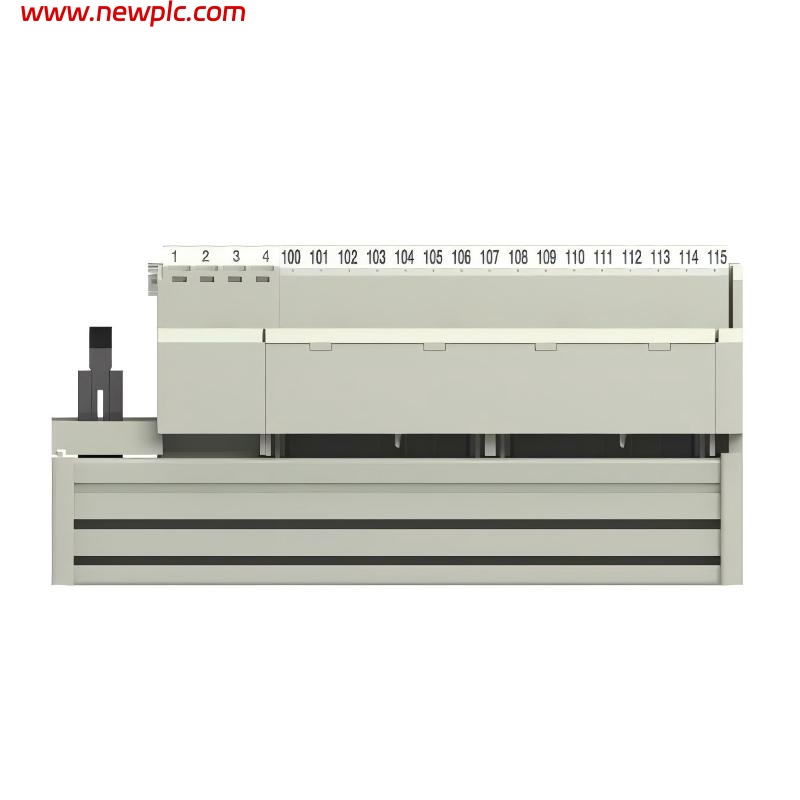

| Product Type | Electromechanical Relay Sub Base |
| Model | ABE7R16S111 |
| Relay Type | Soldered relay sub base for interfacing and signal switching |
| Number of Channels | 16-channel relay interface |
| Contact Type | SPDT electromechanical relay contacts |
| Rated Control Voltage | 24 V DC (typical for compatible relay coils) |
| Output Switching | Suitable for discrete signal switching in automation systems |
| Terminal Type | Screw-clamp terminals |
| Mounting Method | DIN rail mounting |
| Insulation | Reinforced insulation for industrial environments |
| Indicators | Integrated LED indicators for each relay channel |
| Application | Designed for PLC output extension and signal interfacing |
| Dimensions | 125 × 77 × 58 mm |
| Weight | 0.405 kg |
FAQ
FAQ
Q1: What is the primary purpose of the ABE7R16S111 relay sub base?
A1: It serves as an interface module for switching discrete signals using electromechanical relays in automation systems.
Q2: Does this relay base support LED status indication?
A2: Yes, each channel includes an LED indicator showing the relay activation state.
Q3: What type of terminals does this model use?
A3: It uses screw-clamp terminals for secure wiring connections.
Q4: Can the relay sub base be mounted on standard DIN rails?
A4: Yes, it is designed for DIN rail installation in control cabinets.
Q5: Is the module suitable for PLC output expansion?
A5: Yes, it is commonly used as an interface between PLC outputs and field devices.
Q6: What kind of relay contacts are supported?
A6: It supports SPDT electromechanical relay contacts.
Q7: Does the module provide electrical insulation between channels?
A7: Yes, it provides reinforced insulation suitable for industrial applications.
Q8: How does the module handle channel diagnostics?
A8: Diagnostics are provided visually through individual LED indicators that show each relay’s switching status.
