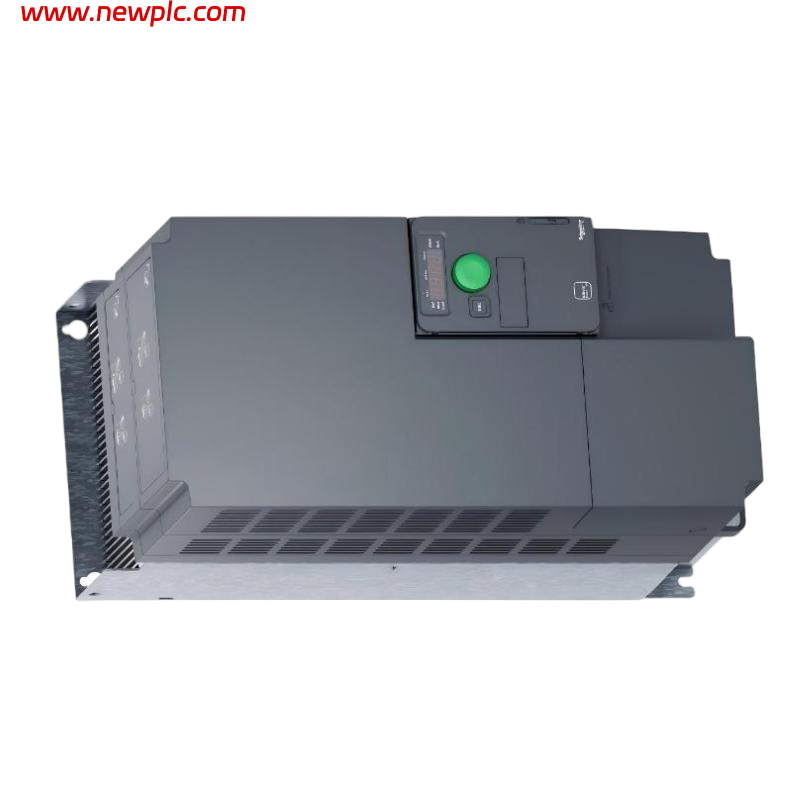

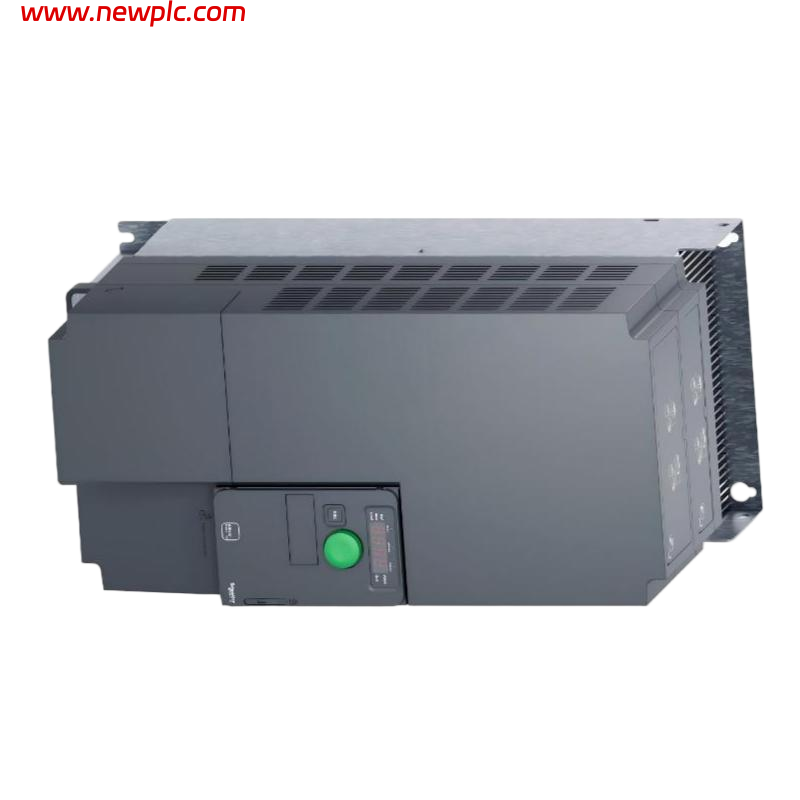

Schneider ATV320D22N4C Variable Frequency Drive (VFD)

FAQ

Q1: What is the power rating of the ATV320D22N4C?
The ATV320D22N4C is rated for 22 kW (30 HP) motor power.

Q2: What supply voltage and frequency does this drive require?
It operates on a three-phase 380–500 V AC supply at 50 / 60 Hz.

Q3: What is the nominal output current of this model?
The nominal output current is around 46 A.

Q4: What motor control methods are supported?
It supports flux vector control and V/f control for flexible speed and torque management.

Q5: What communication options are included?
It includes Modbus RTU and CANopen communication interfaces.

Q6: What protection and safety features are built in?
The drive offers protections such as overcurrent, overvoltage, undervoltage, short-circuit, and safety functions like Safe Torque Off (STO).

Q7: What are the physical dimensions and weight?
Its dimensions are 390 × 180 × 229 mm and the weight is 9.5 kg.

Q8: What industrial applications is this model suitable for?
The ATV320D22N4C is suitable for conveyors, pumps, material handling, packaging, and other automated equipment requiring precise motor control. (General application context for ATV320 series)

ATV320D22N4C Schneider
