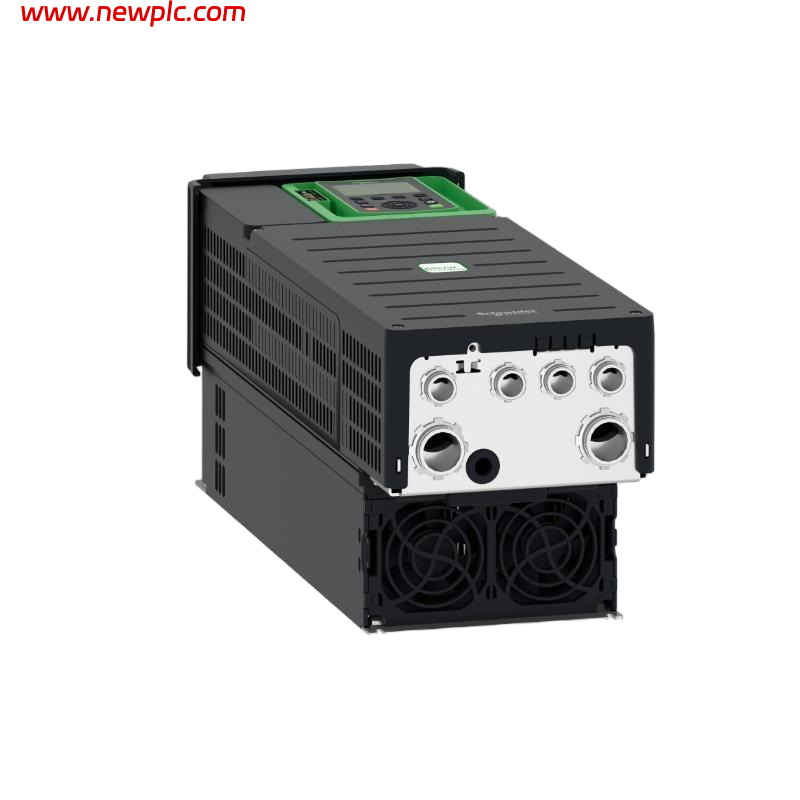

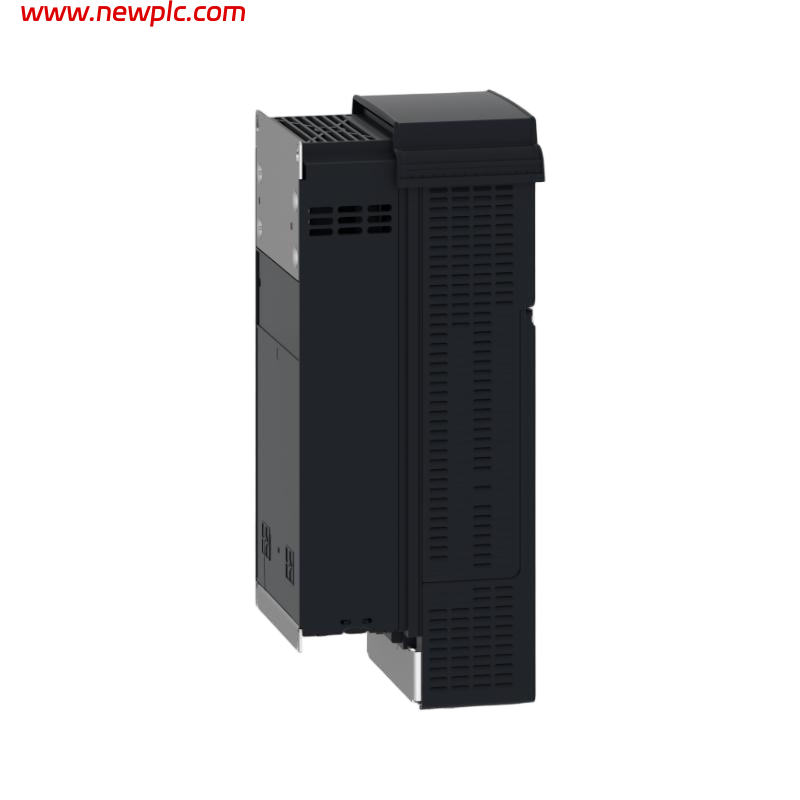

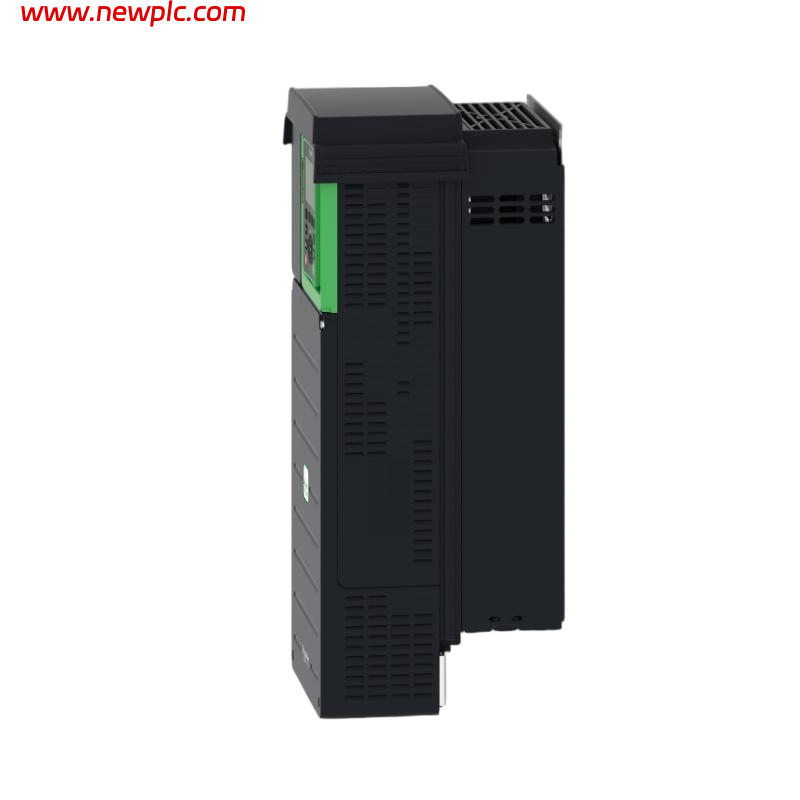

Schneider ATV930D30N4 Variable Frequency Drive (VFD)

FAQ

Q1: What motor power ratings does the ATV930D30N4 support?
It supports up to 30 kW (40 HP) under normal duty and 22 kW (30 HP) under heavy duty conditions.

Q2: What input voltage and frequency does this drive require?
This VFD operates on a three-phase 380–480 V AC supply at 50/60 Hz.

Q3: What output frequency range can the ATV930D30N4 provide?
The adjustable output frequency range is from 0.1 Hz up to 599 Hz.

Q4: What is the continuous output current rating?
Continuous output current is approximately 61.5 A for normal duty and 46.3 A for heavy duty.

Q5: Which motor control methods are supported?
It supports V/F ratio control, sensorless vector control, and vector control with encoder feedback.

Q6: What safety and protection features are included?
The drive includes Safe Torque Off (STO) and integrated protection for overload, short circuit, over/undervoltage, and thermal faults.

Q7: What are the physical dimensions and weight?
The approximate size is 22.0 × 60.0 × 28.4 cm, and the unit weighs roughly 25–28 kg.

Q8: What protection rating does the ATV930D30N4 have?
It has an IP21 enclosure rating suitable for vertical wall mounting inside industrial environments.
