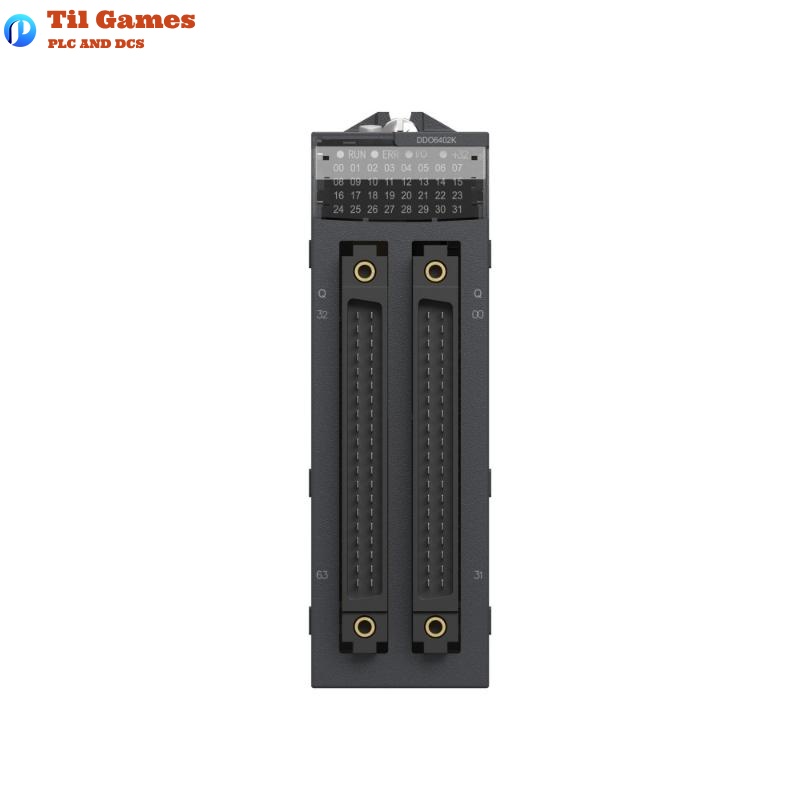

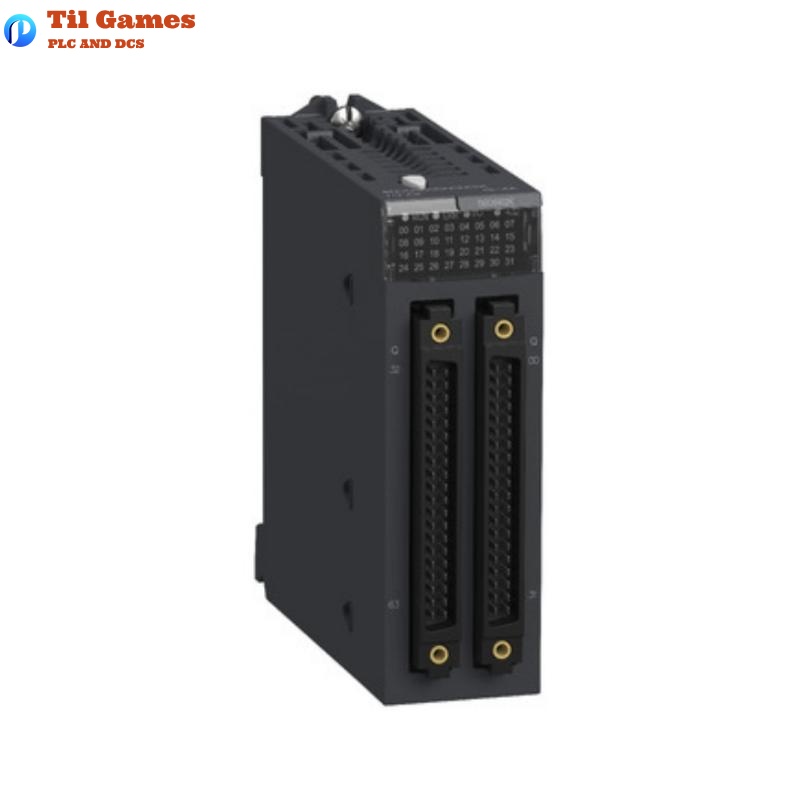

Schneider BMXDDO6402K Discrete Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the BMXDDO6402K module have?
A1: The module features 64 solid-state discrete output channels.

Q2: What is the maximum output current per channel?
A2: The maximum output current per channel is 0.125 A.

Q3: What is the operating voltage range for this module?
A3: The operating voltage range is 19 V to 30 V DC, with a nominal value of 24 V DC.

Q4: Does the module support output paralleling?
A4: Yes, up to 3 outputs can be paralleled.

Q5: What protection features does this module provide?
A5: The module includes external fuse, reverse polarity, short-circuit, overload, and overvoltage protection.

Q6: What is the response time of the outputs?
A6: Output response time is 1.2 ms.

Q7: What are the module’s dimensions and weight?
A7: Dimensions are 160 x 100 x 35 mm; net weight is 0.15 kg.

Q8: What is the allowable installation altitude for this module?
A8: It supports 02000 m without derating, and 20005000 m with derating.

BMXDDO6402K Discrete Output Module Schneider

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
