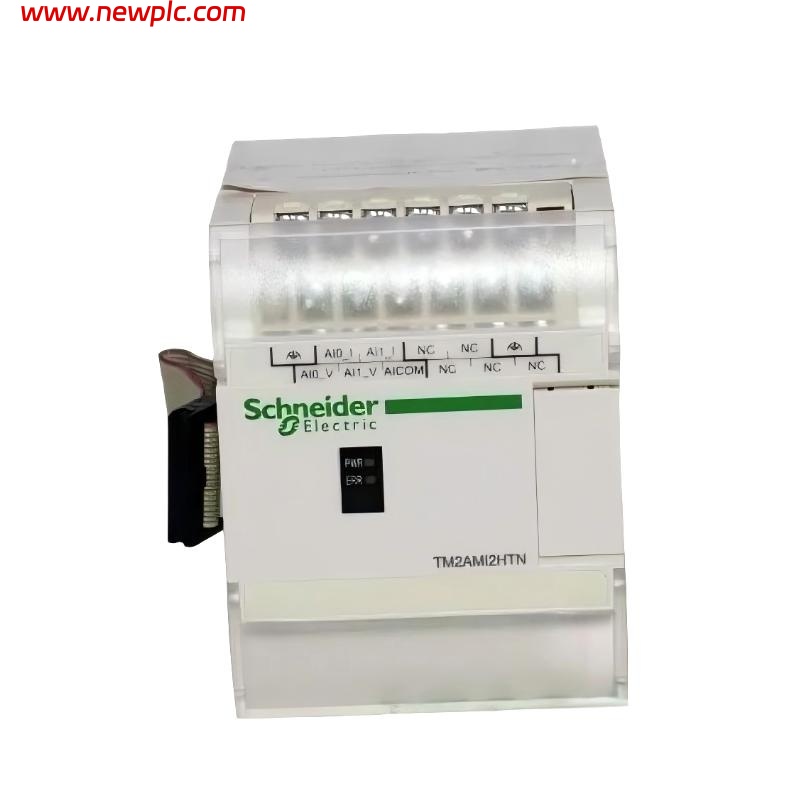

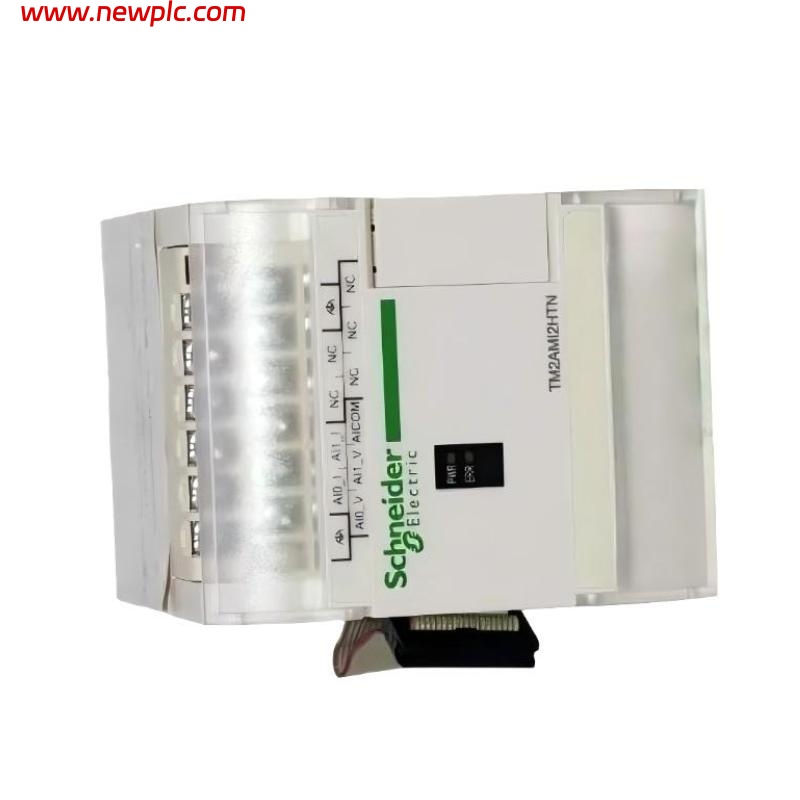

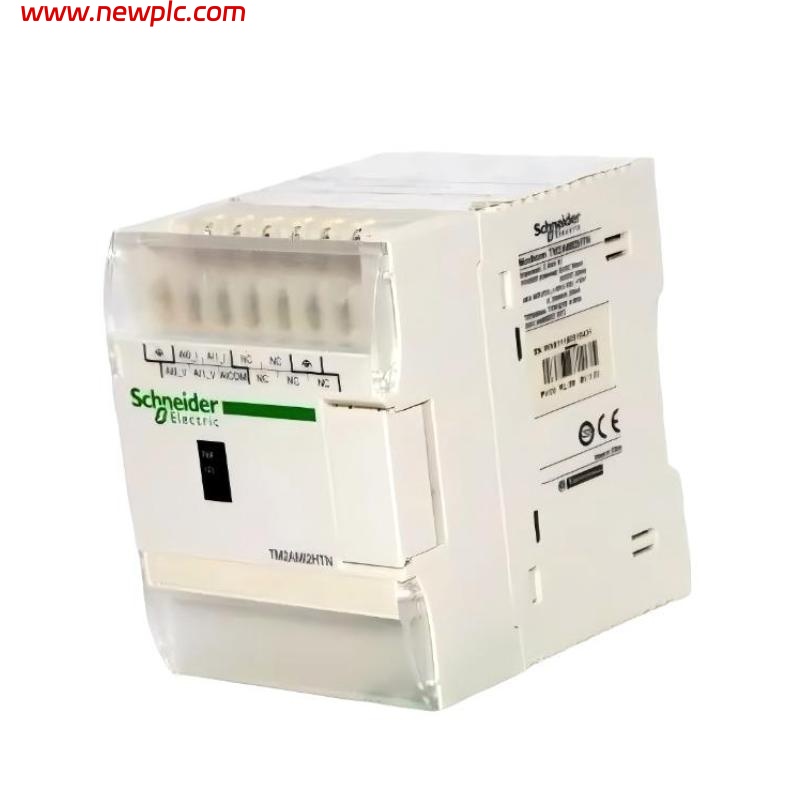

Schneider TM2AMI2HTN Analog Input Module

FAQ

Q1: What types of analog signals does the module support?
A1: The module supports both voltage inputs (0–10 VDC) and current inputs (4–20 mA).

Q2: How many input channels are available?
A2: The module provides 2 analog input channels.

Q3: Is the module electrically isolated?
A3: Yes, galvanic isolation separates the input channels from the module logic to prevent interference.

Q4: What is the response time for input signals?
A4: Typical response time is under 10 ms, ensuring fast and reliable signal acquisition.

Q5: What is the measurement accuracy of the inputs?
A5: The module provides ±0.2% full-scale accuracy with 12-bit resolution.

Q6: What are the input impedance requirements?
A6: Input impedance is 250 Ω for current signals and 10 kΩ for voltage signals.

Q7: How is the module mounted?
A7: It is designed for standard DIN rail mounting in control panels.

Q8: Does the module require configuration or software at installation?
A8: No local configuration is required; all input mapping and signal processing are managed through the TM2 bus and the control system.

Analog Input Module Schneider TM2AMI2HTN
