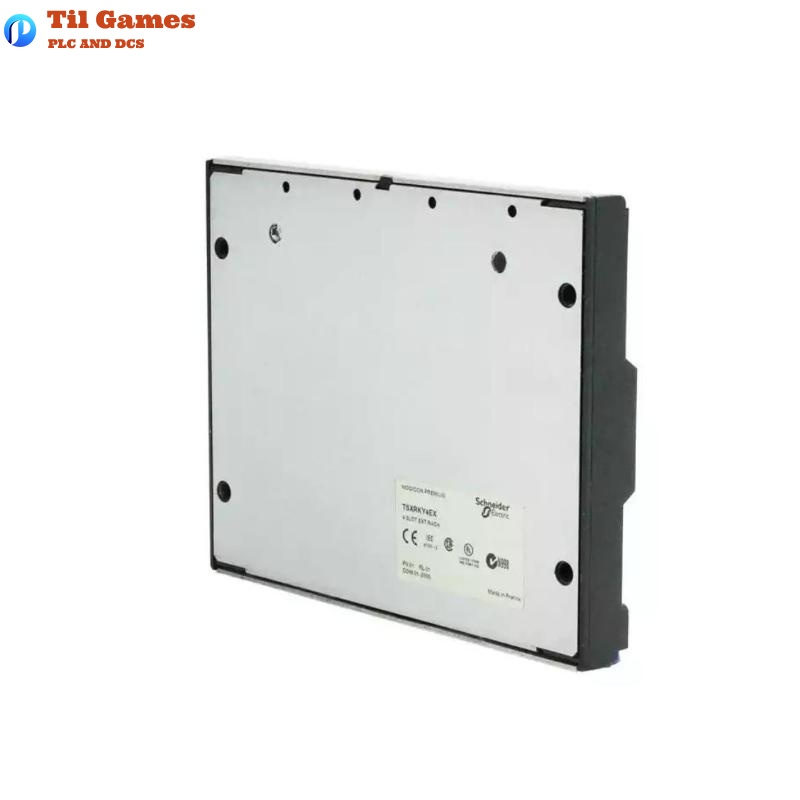

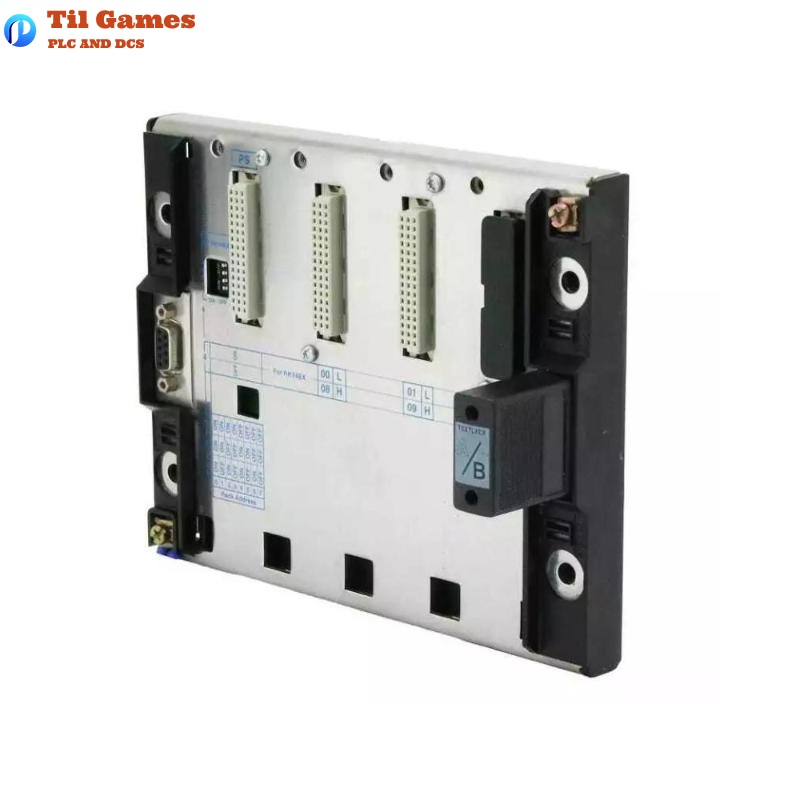

Schneider TSXRKY4EX Extendable Rack

FAQ

Q1: What is the maximum number of slots available in the TSXRKY4EX rack?
A1: The TSXRKY4EX provides 4 slots for module installation.

Q2: Which devices are compatible with the TSXRKY4EX?
A2: It is compatible with TSXP57 processors, TSXPSY power supplies, I/O modules, and specific application modules.

Q3: What type of connectors does the rack use for communication?
A3: It uses two female SUB-D 9 connectors for remote X bus communication.

Q4: How can the rack be mounted?
A4: The rack can be mounted either using 4 M6 screws (panel mounting) or clips on a 35 mm DIN rail.

Q5: What is the environmental protection rating of the product?
A5: The product has an IP20 rating and is suitable for pollution degree 2 environments.

Q6: What certifications does the TSXRKY4EX have for marine and industrial use?
A6: It holds certifications from RMRS, BV, ABS, RINA, LR, DNV, and GL.

Q7: What is the operating temperature range of the TSXRKY4EX?
A7: It operates in a temperature range from 0 to 60 °C (32 to 140 °F).

Q8: What are the dimensions and weight of the rack?
A8: The dimensions are 54 × 206 × 275 mm, and the weight is 1.16 kg.

Extendable Rack Schneider
