Technical Specifications
| Parameter | Specification |
|---|---|

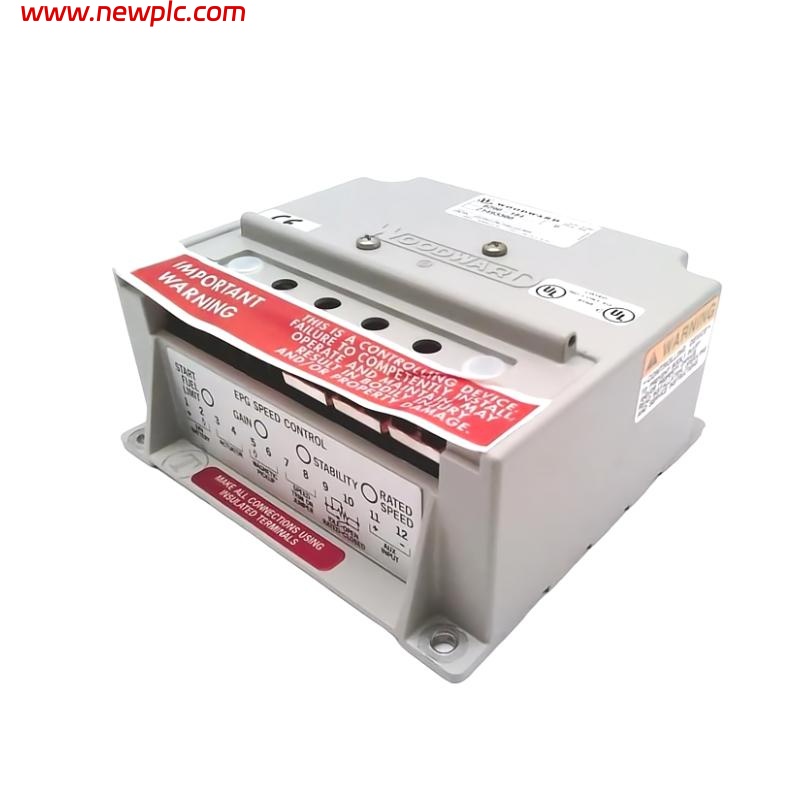

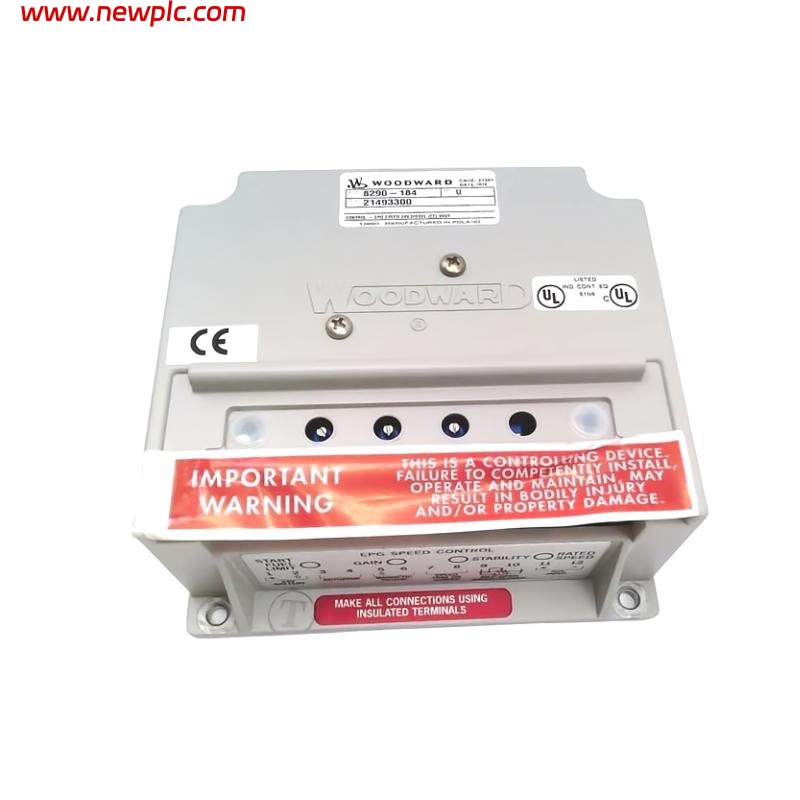

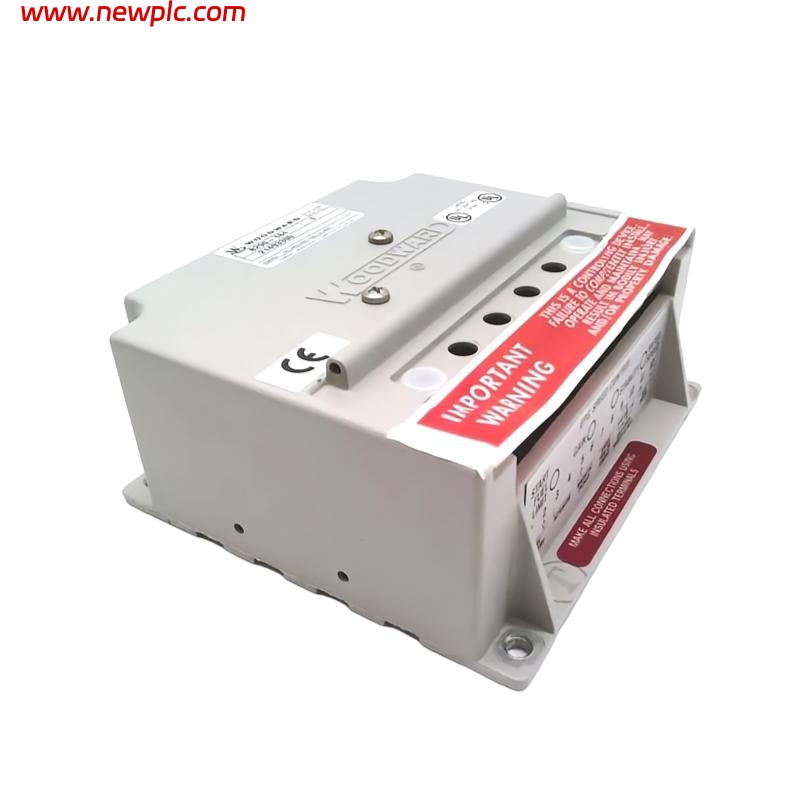

| Model | 8290-184 |
| Manufacturer | Woodward |
| Product Type | Speed Controller |
| Function | Electronic governor for precise engine speed regulation |
| Input Signal | Magnetic pickup or frequency input (0.5–120 V RMS) |
| Speed Range | 500 to 15,000 RPM |
| Output Signal | Actuator drive, 0–20 V DC or pulse-width modulated |
| Control Accuracy | ±0.25% steady-state speed regulation |
| Power Supply Voltage | 18–32 V DC |
| Power Consumption | < 10 W |
| Start Fuel Limit | Adjustable from 0% to 100% |
| Idle and Maximum Speed Setting | Independently adjustable via trim potentiometers |
| Speed Trim Range | ±10% of rated speed |
| Response Time | < 50 ms |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Vibration Resistance | 5 g, 10–500 Hz |
| Humidity Range | Up to 95% RH, non-condensing |
| Protection Class | IP20 |
| Compliance | CE, UL, and CSA certified |
| Application | Diesel and gas engines, generator sets, turbines, and speed control systems |
| Dimensions | 200 x 150 x 50 mm |
| Weight | 2.3 kg |
FAQ
FAQ
Q1: What is the main function of the Woodward 8290-184 Speed Controller?
It precisely regulates the engine speed by adjusting the actuator output based on input from a magnetic pickup or speed sensor.
Q2: What type of input signals does the 8290-184 accept?
The controller accepts AC frequency signals from magnetic pickups in the range of 0.5–120 V RMS.
Q3: What is the operating speed range for this controller?
It supports engine speeds from 500 to 15,000 RPM, making it suitable for various industrial and power generation applications.
Q4: How accurate is the speed control provided by the 8290-184?
It offers a steady-state speed regulation accuracy of ±0.25%, ensuring stable and consistent engine operation.
Q5: What is the power supply requirement for this controller?
The 8290-184 operates on a DC supply voltage between 18 and 32 volts.
Q6: How quickly does the controller respond to speed variations?
The response time is less than 50 milliseconds, providing fast compensation for load or speed changes.
Q7: Can the idle and maximum speed be adjusted independently?
Yes, both idle and maximum speeds are independently adjustable using onboard trim potentiometers.
Q8: What environmental conditions can the 8290-184 operate under?
It is rated for operation in temperatures from -40°C to +85°C and can withstand up to 95% relative humidity.
