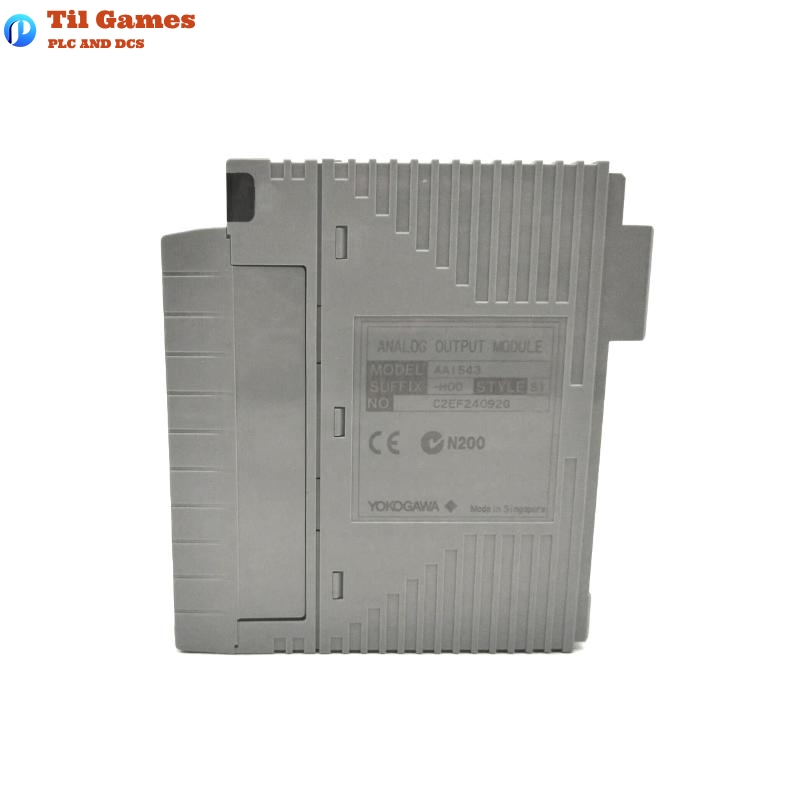

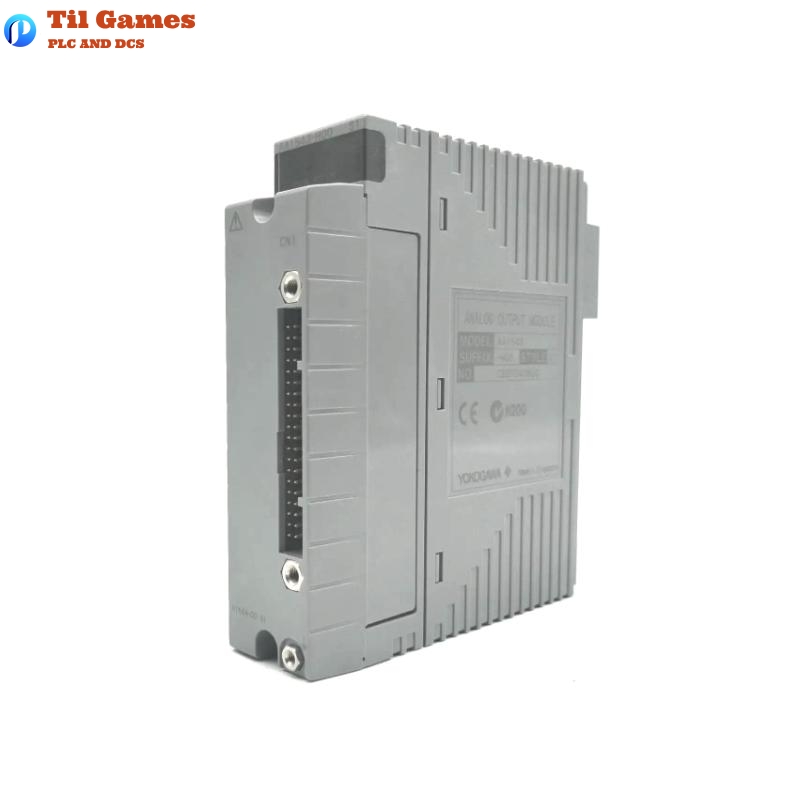

Yokogawa AAI543-H00/K4A00 Analog Output Module

Frequently Asked Questions (FAQ)

Q1: What is the output type supported by the AAI543-H00/K4A00 module?
A1: The module provides 16 channels of 4 to 20 mA DC analog current output.

Q2: Is the AAI543 module capable of HART communication?
A2: Yes, the H00 variant supports HART communication when installed in a compatible ER bus node unit with EB401 firmware rev. 2 or later.

Q3: Can the AAI543 be used in a dual-redundant configuration?
A3: Yes, it supports dual-redundant configurations with either standard or fast switch-over response depending on the model suffix.

Q4: What type of isolation is provided in this module?
A4: Isolation is provided between the output channels and the system, rated at 1500 V AC for 1 minute.

Q5: What is the load resistance range supported?
A5: The module supports an allowable load resistance between 0 and 750 Ω per output channel.

Q6: How often is the data refreshed in the module?
A6: The data update period is 10 milliseconds.

Q7: What happens if an output circuit is open?
A7: The module detects a circuit-open condition when the current drops below 0.65 mA.

Q8: What cabling options are available for connecting the module?
A8: The AAI543-H00/K4A00 can be connected using pressure clamp terminals, MIL connectors, or the KS1 dedicated cable.

AAI543-H00/K4A00 Analog Output Module Yokogawa
