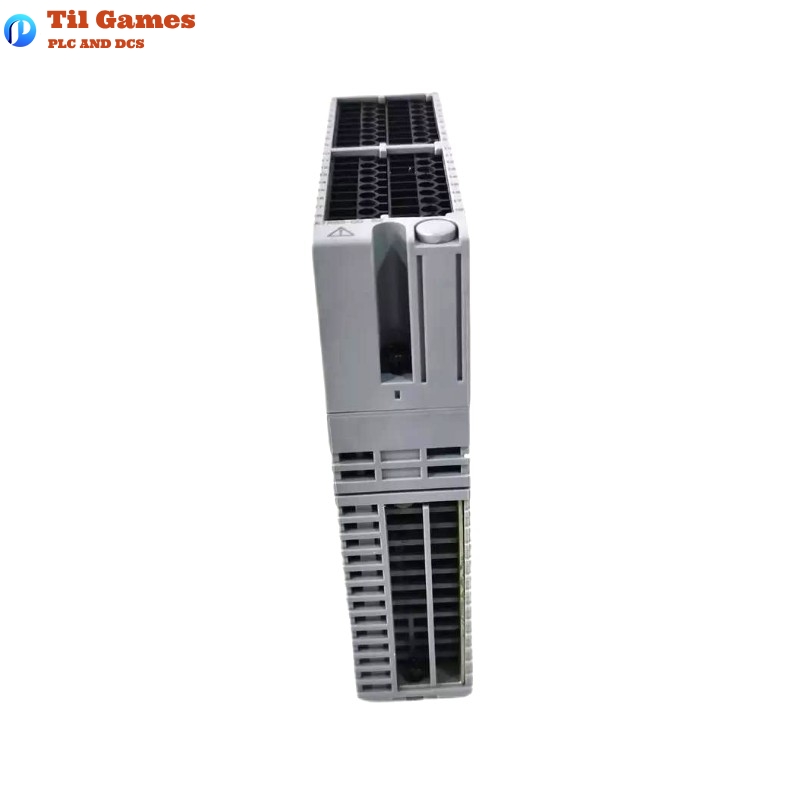

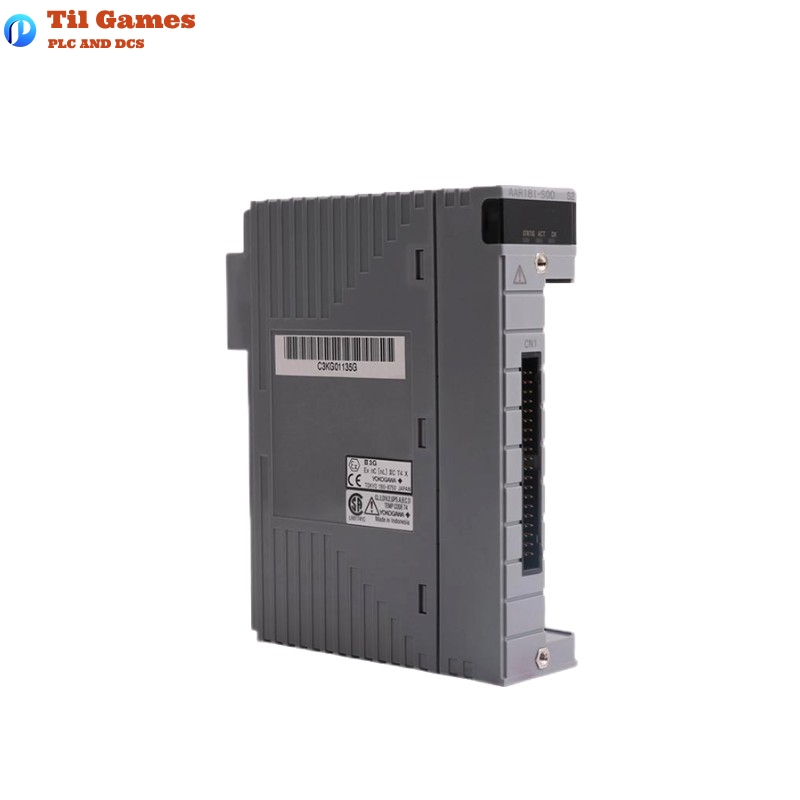

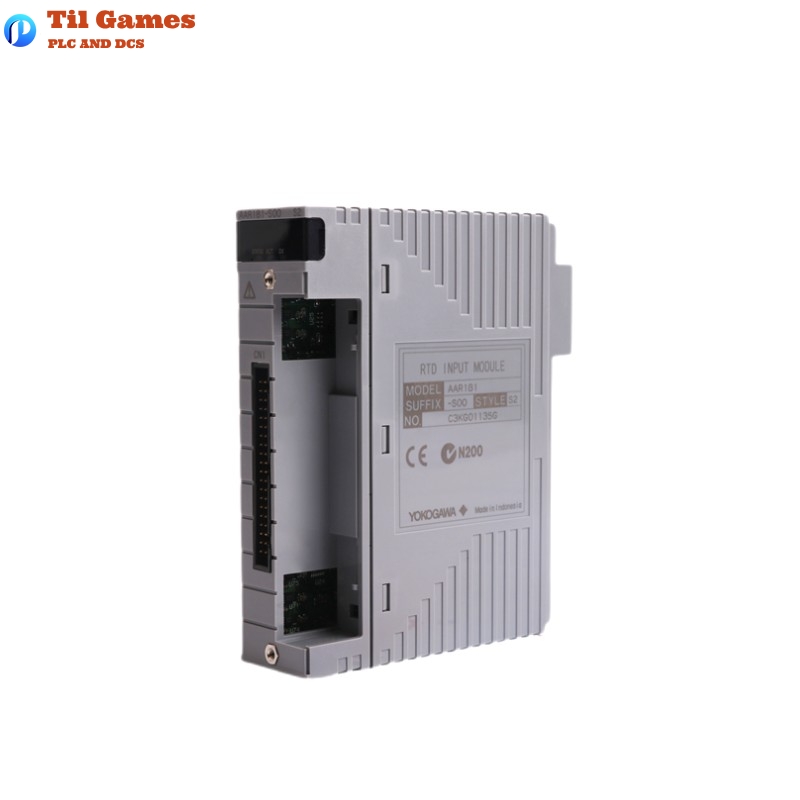

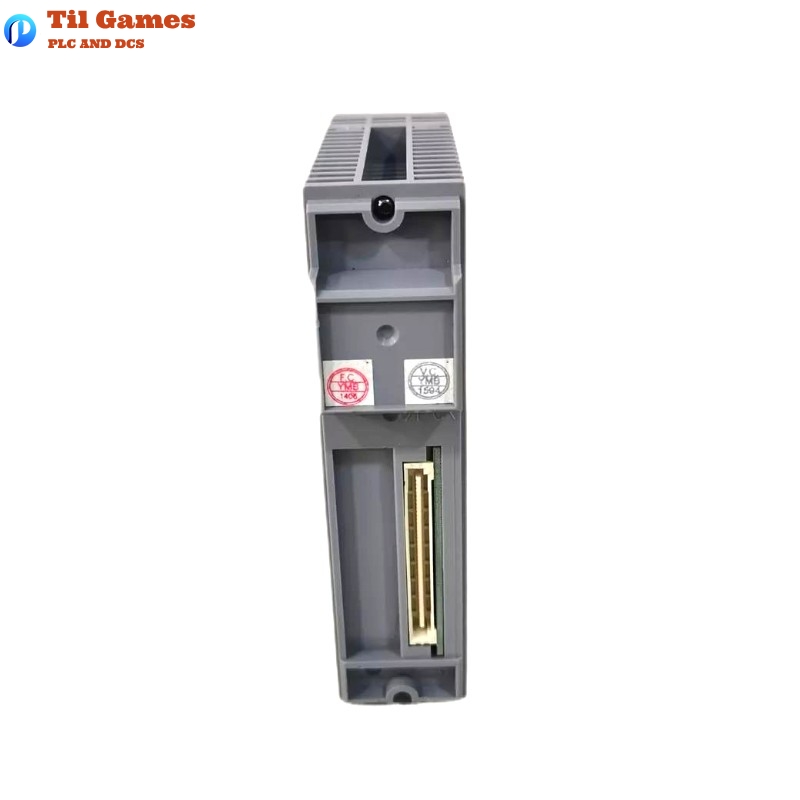

Yokogawa AAR181-S00 RTD Input Module

FAQs for Yokogawa AAR181-S00 RTD Input Module

Q1: What types of RTDs are supported by the AAR181-S00 module?
A1: The module supports Pt100 (3-wire type) and JPt100 RTDs.

Q2: What is the maximum number of channels available on the AAR181-S00?
A2: The AAR181-S00 provides 12 input channels.

Q3: What is the accuracy of the RTD input on the AAR181-S00?
A3: The accuracy for the RTD input is ±120 mΩ.

Q4: Can the AAR181-S00 module detect burn-out in the RTD inputs?
A4: Yes, burn-out detection is available, with settings for UP/DOWN and a detection time of 60 seconds.

Q5: What is the data update period for the AAR181-S00 module?
A5: The data update period is 1 second.

Q6: How much current does the AAR181-S00 module consume?
A6: The maximum current consumption is 450 mA when powered by 5 V DC.

Q7: What is the allowed temperature drift for the AAR181-S00?
A7: The temperature drift is ±120 mΩ per 10 °C for RTD inputs.

Q8: How are the RTD connections made to the AAR181-S00 module?
A8: The module uses pressure clamp terminals for external connections.

AAR181-S00 RTD Input Module Yokogawa
