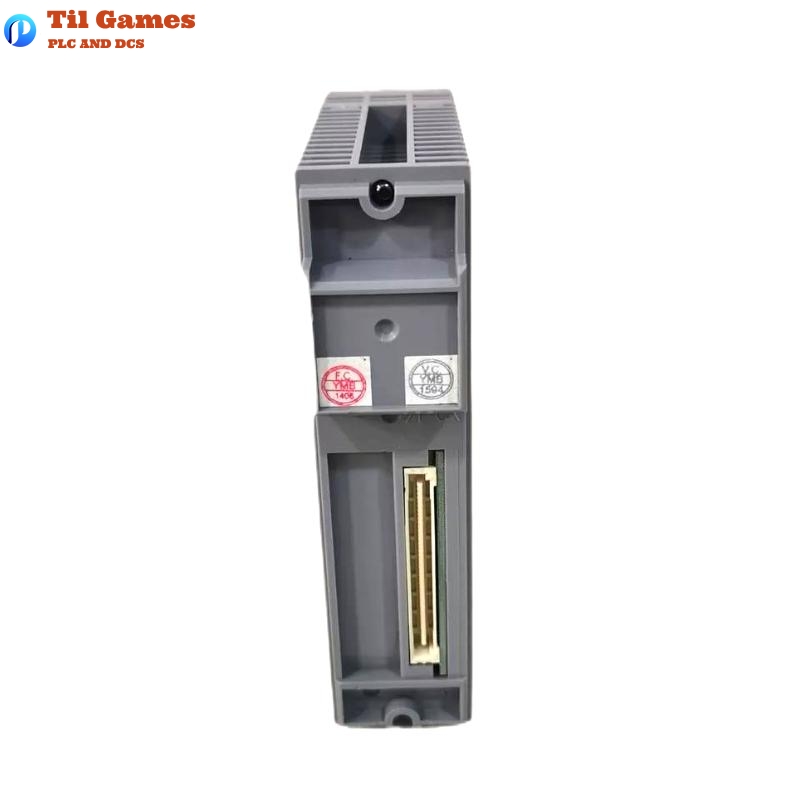

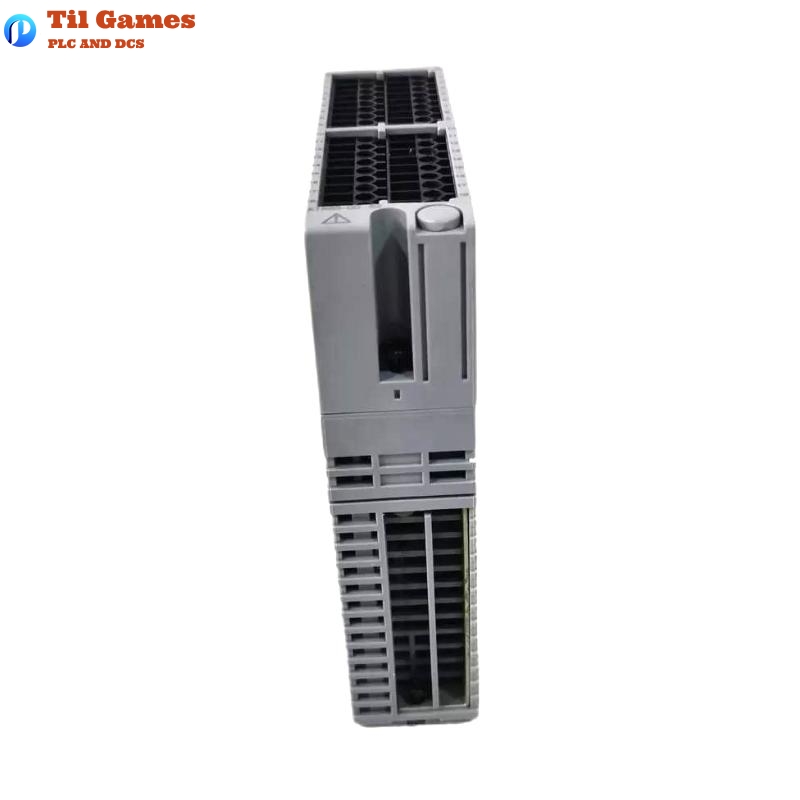

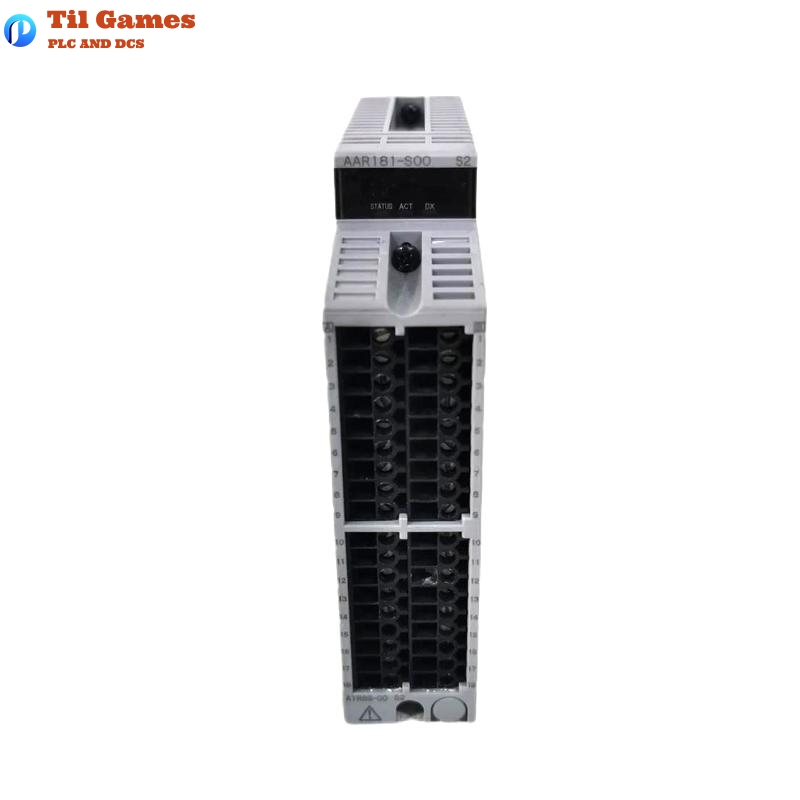

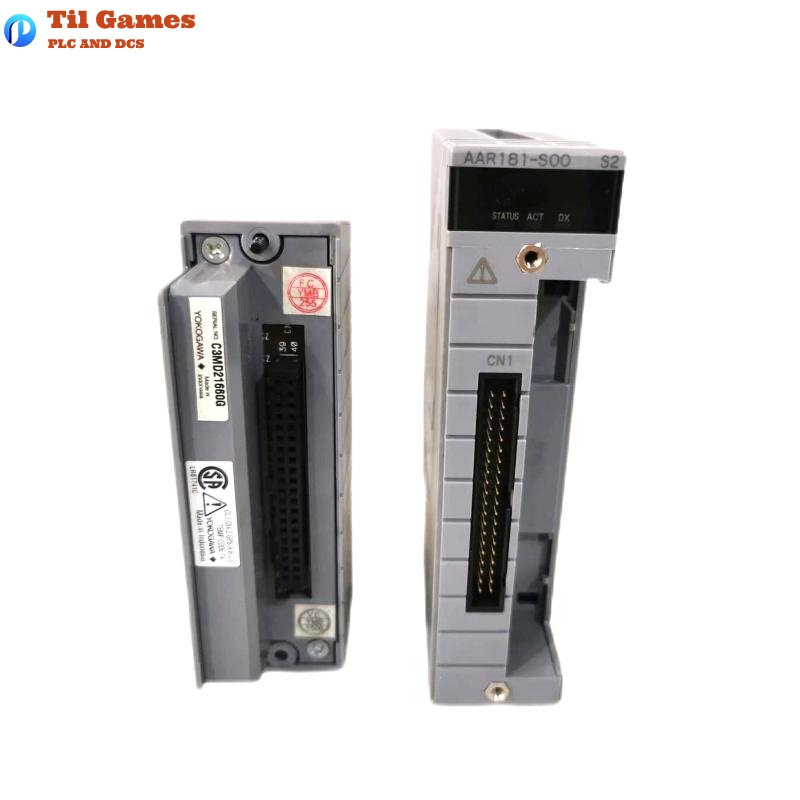

Yokogawa AAR181-S00 S2 RTD Input Module

FAQs (FAQ in Q&A format)

Q1: What type of input signal does the AAR181 module support?
A1: The AAR181 module supports RTD input signals, specifically Pt100 in a 3-wire configuration.

Q2: How many input channels does the AAR181 module have?
A2: The AAR181 module has 12 isolated input channels.

Q3: What is the accuracy of the AAR181 module?
A3: The accuracy of the AAR181 module for RTD input is ±120 mΩ.

Q4: What is the maximum current consumption of the AAR181 module?
A4: The maximum current consumption is 450 mA when operating at 5 V DC.

Q5: Does the AAR181 module have burn-out detection capabilities?
A5: Yes, the AAR181 module has burn-out detection with a 60-second detection time, and it can be set to detect either UP or DOWN.

Q6: What are the dimensions of the AAR181 module?
A6: The dimensions of the AAR181 module are 107.5 × 130 × 32.8 mm.

Q7: How long does it take for the data update in the AAR181 module?
A7: The data update period for the AAR181 module is 1 second.

Q8: What is the weight of the AAR181 module?
A8: The weight of the AAR181 module is 0.2 kg.
