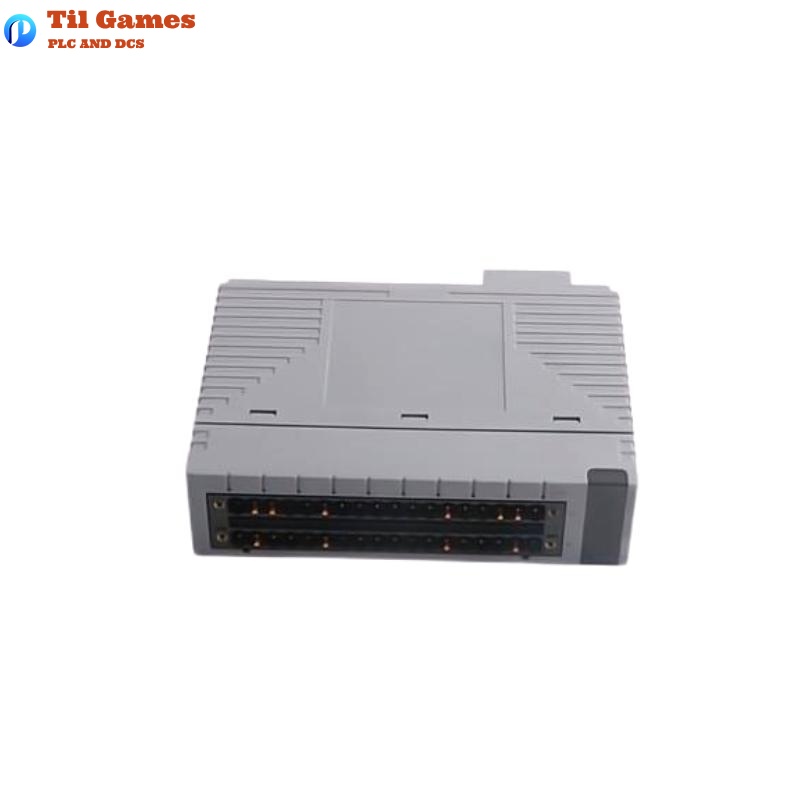

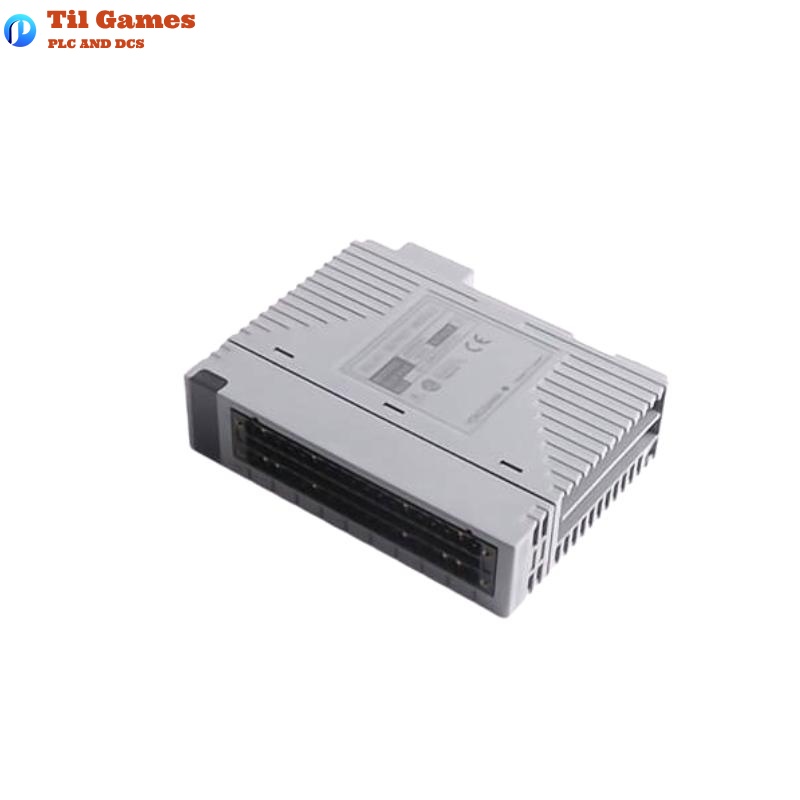

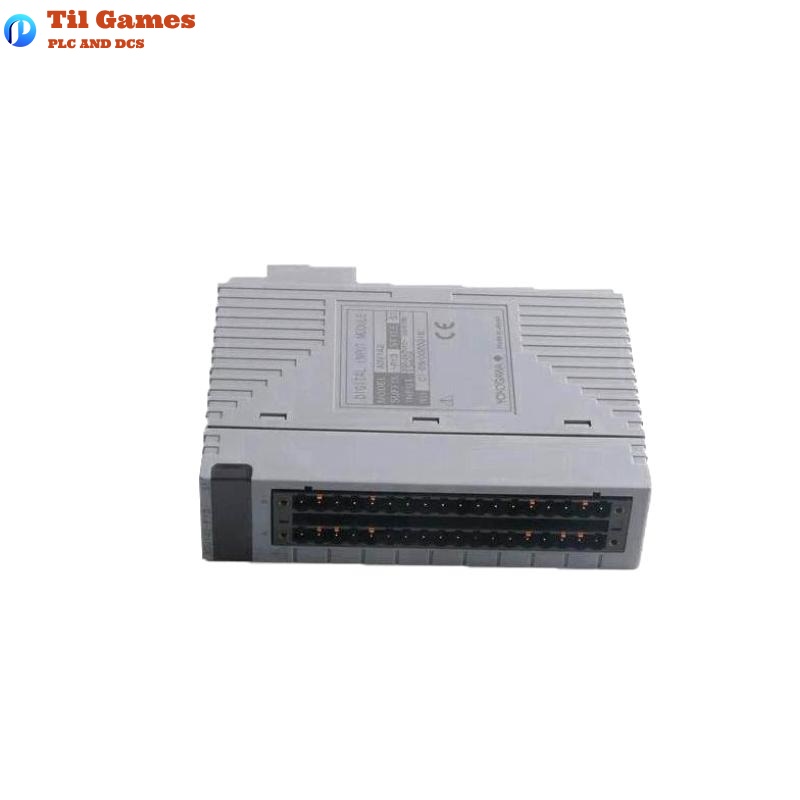

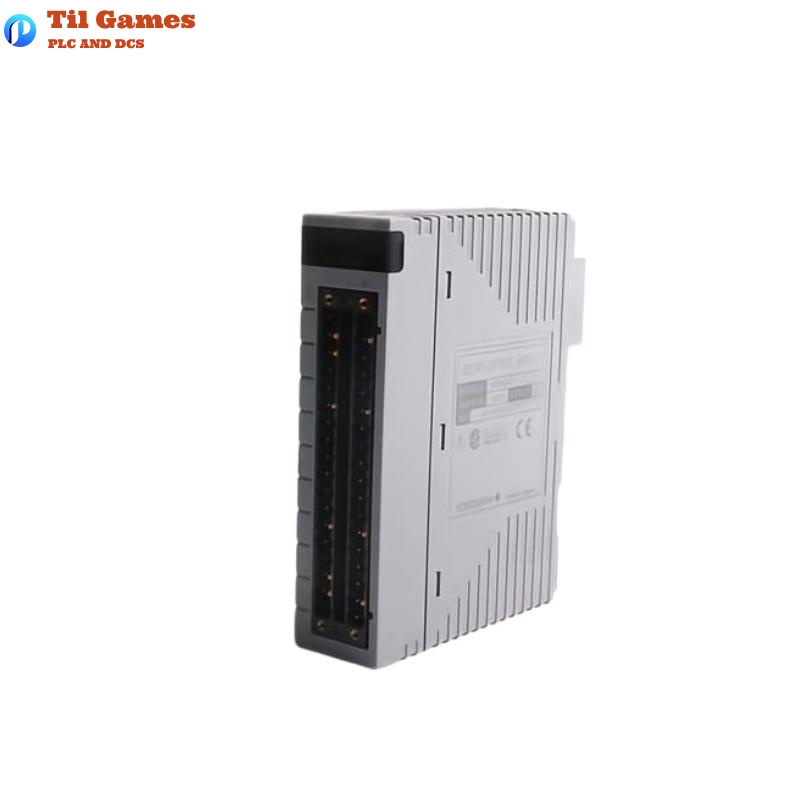

Yokogawa ADR541-P10 Relay Output Module

FAQ – Frequently Asked Questions

Q1: What type of output does the ADR541-P10 module provide?
A1: It provides relay contact output (Form A), suitable for both AC and DC loads.

Q2: How many output channels does the module support?
A2: The ADR541-P10 supports 16 isolated relay output channels.

Q3: What is the maximum switching capacity per channel?
A3: Each relay can switch up to 60 W (DC) or 120 VA (AC) with a maximum current of 2 A at 30 V DC.

Q4: Does the module require an external power supply?
A4: No, the ADR541-P10 does not require an external power supply for relay operation.

Q5: Is there electrical isolation between channels?
A5: Yes, the module provides channel-to-channel and channel-to-ground isolation.

Q6: What is the mechanical life expectancy of the relay contacts?
A6: The mechanical life is approximately 10 million operations.

Q7: Can the ADR541-P10 be used in high humidity environments?
A7: Yes, it can operate in environments with 5 to 95% relative humidity (non-condensing).

Q8: What type of terminal connection does it use?
A8: It uses pressure clamp terminals for field wiring.

ADR541-P10 Relay Output Module Yokogawa
