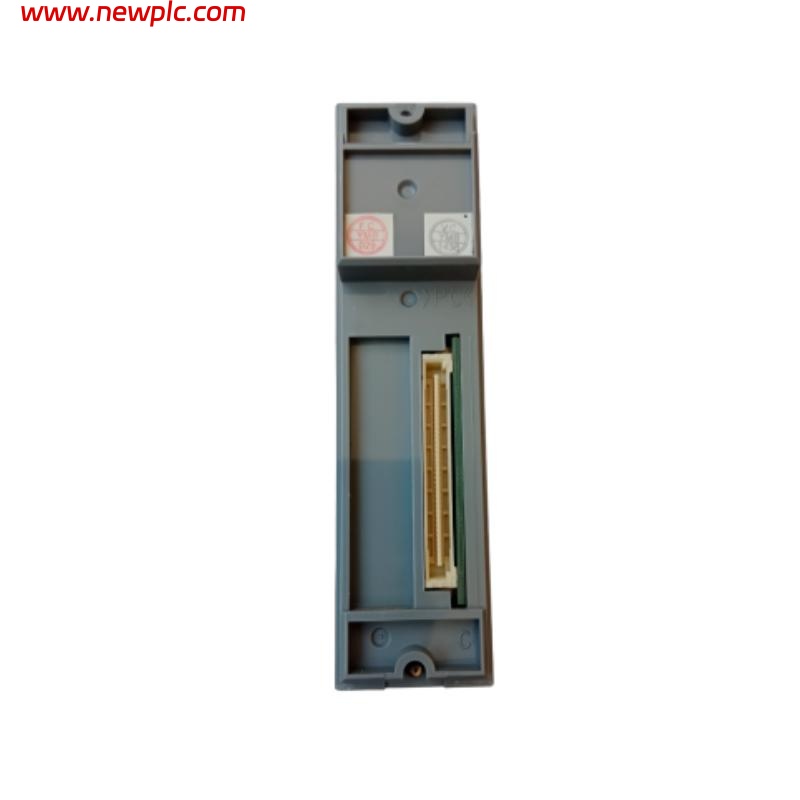

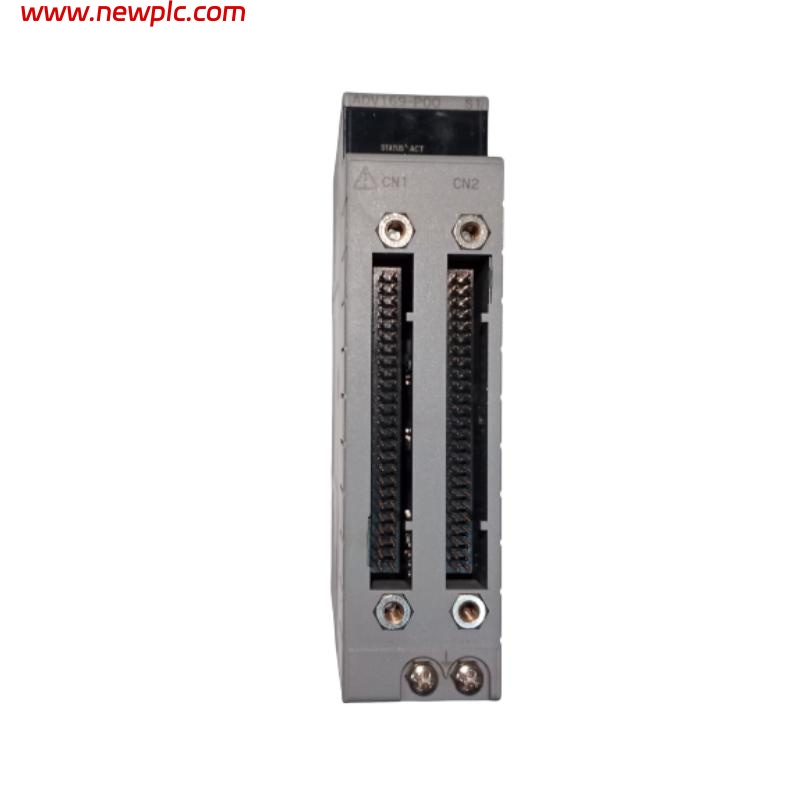

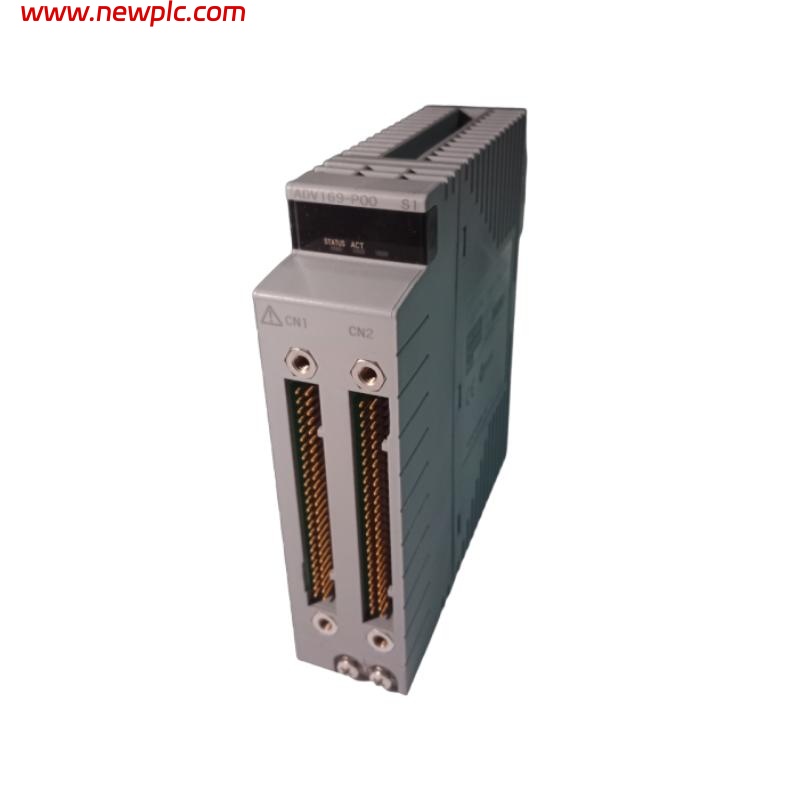

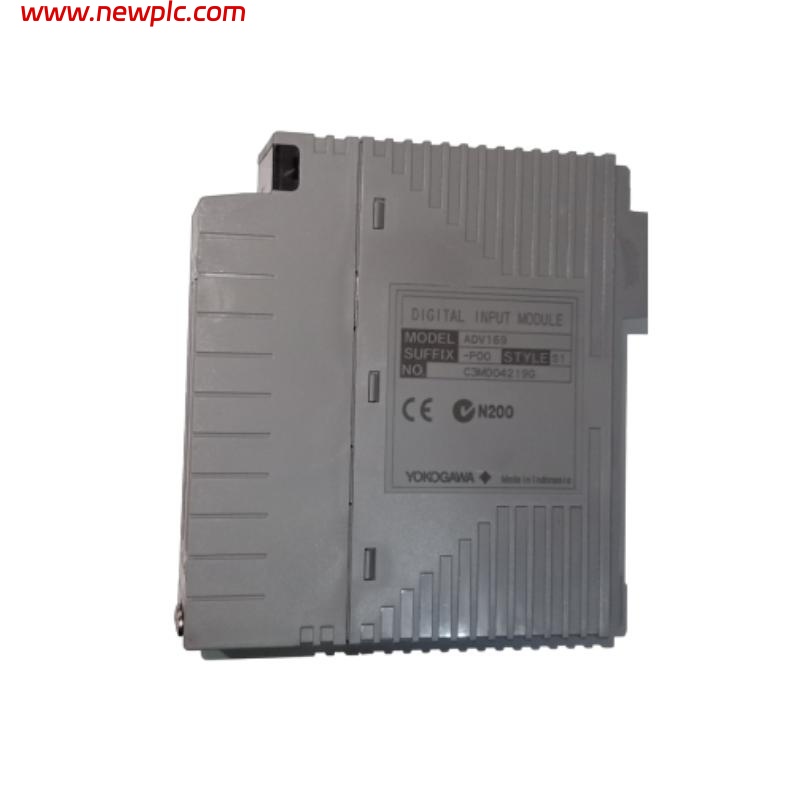

Yokogawa ADV169-P00 S1 Digital Input Module

FAQ

Q1: How many digital input channels does this module support?
A1: It supports 16 independent digital input channels.

Q2: What is the rated input voltage of the module?
A2: The rated input voltage is 24 V DC, with an acceptable range of 0–30 V DC.

Q3: Does the module provide isolation between input and system?
A3: Yes, it uses optical isolation to enhance noise immunity and safety.

Q4: What is the typical response time of the module?
A4: The response time is ≤ 4 ms, suitable for most industrial real-time applications.

Q5: How is the module installed?
A5: The module is mounted on a baseplate to ensure reliable mechanical and electrical connection.

Q6: What are the environmental conditions for operation?
A6: Operating temperature is 0–55 °C, with 5%–90% relative humidity (non-condensing).

Q7: What is the approximate power consumption of the module?
A7: The module consumes 3 W.

Q8: What are the dimensions and weight of the module?
A8: The dimensions are 130 x 127.2 x 32.8 mm, and the weight is 0.3 kg.
