Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AMM42T (Applicable to AMM42-S3) |
| Input Signal | 4 to 20 mA DC (from 2-wire transmitters) |
| Input Resistance | 250 Ω (adjustable to 70 Ω when used with MTL barrier) |
| Transmitter Power Supply | 23.5 to 24.5 V DC (max. 60 mA) |
| Allowable Input Current | 40 mA or less |
| Signal Insulation | No isolation between system and field, or between channels |
| Data Update Period | 1 second |
| Accuracy | ±16 µA |
| Temperature Drift | ±32 µA per 10°C |
| Current Consumption | ≤ 4 A (5.0 V DC) |
| Installation | Installed in I/O Module Nest |

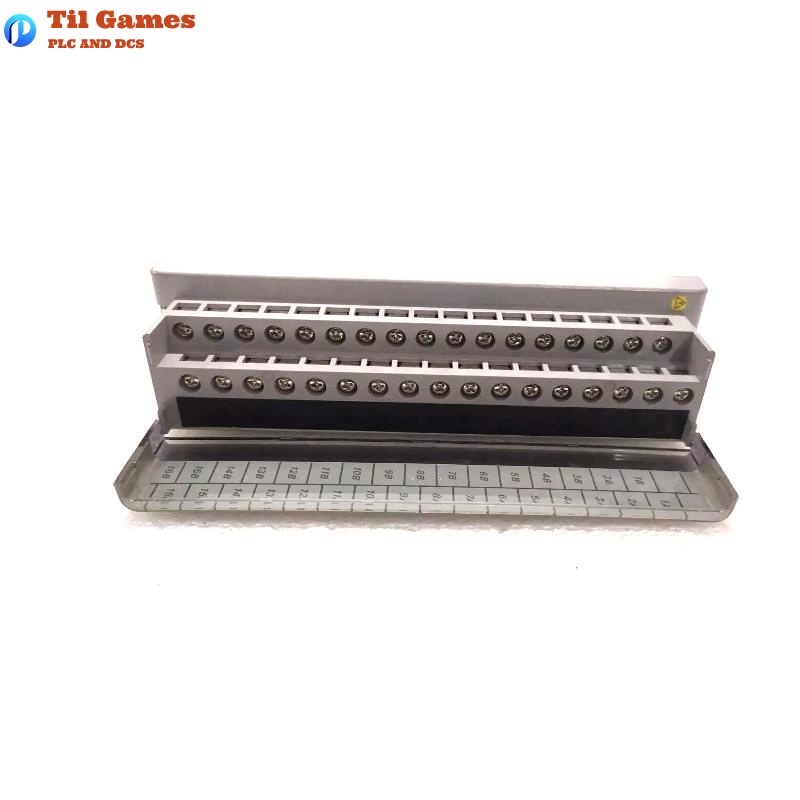

| Wiring Method | M4 screw terminal connection to I/O nest |
| Compatible Barrier | MTL787S (with 70 Ω setting) |
| Dimensions (W × H × D) | 120 × 90 × 60 mm |
| Weight | 0.249 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signal does AMM42-S3 support?
A1: It supports 4 to 20 mA DC signals from 2-wire transmitters.
Q2: Is the input signal isolated in AMM42-S3?
A2: No, there is no isolation between field and system or between channels.
Q3: Can AMM42-S3 supply power to transmitters?
A3: Yes, it provides 23.5 to 24.5 V DC with a maximum of 60 mA output.
Q4: What is the data update rate of AMM42-S3?
A4: The module updates input data every 1 second.
Q5: Is AMM42-S3 compatible with safety barriers?
A5: Yes, it is compatible with the MTL787S barrier when set to 70 Ω input resistance.
Q6: How should AMM42-S3 be mounted and wired?
A6: It should be installed in a standard I/O Module Nest and wired using M4 screws to the terminal.
Q7: What is the accuracy of the AMM42-S3 input?
A7: The typical accuracy is ±16 µA.
Q8: What environmental condition affects accuracy?
A8: A temperature change of 10°C may result in a drift of ±32 µA.
