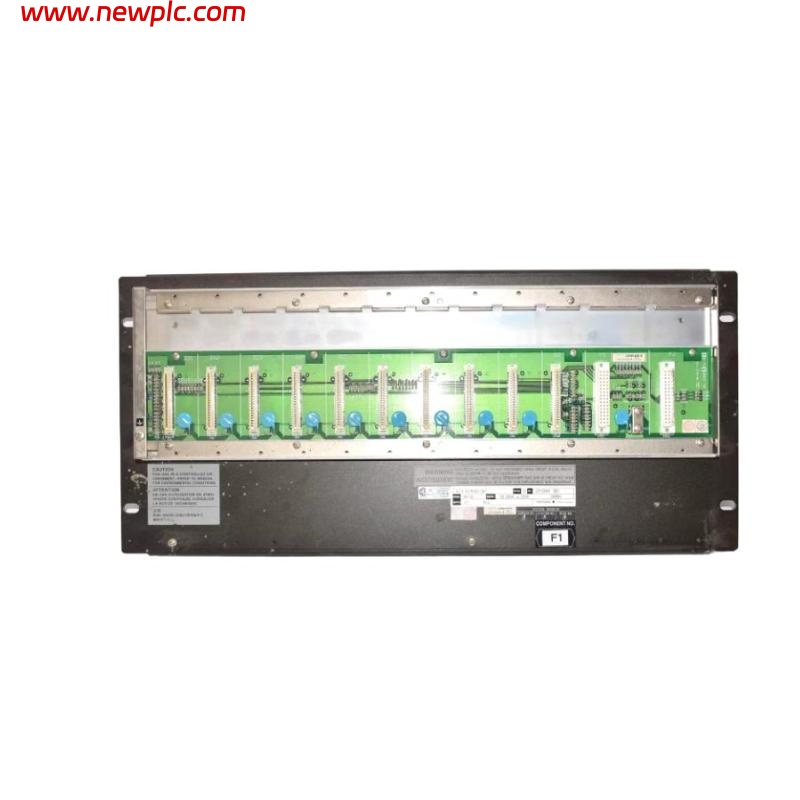

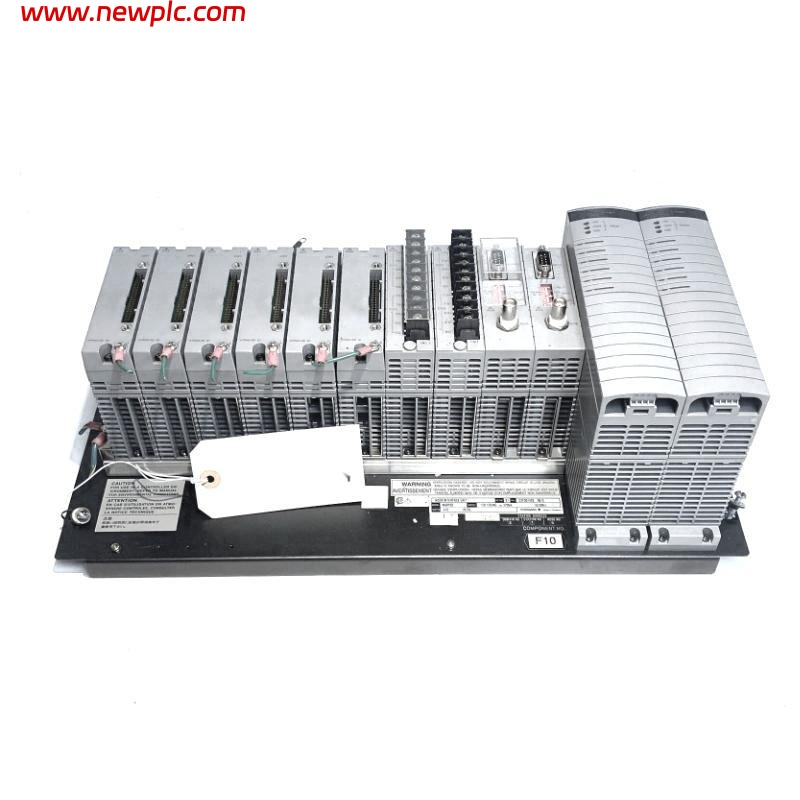

Yokogawa ANR10D-420/NDEL Bus Node Unit

FAQ

• Q1: What is the maximum number of field devices supported by the ANR10D-420/NDEL?
  A1: The number of field devices depends on the configuration of the ESB Bus and system architecture, typically supporting multiple analog and digital modules concurrently.

• Q2: Can the ANR10D-420/NDEL operate with both AC and DC power sources?
  A2: Yes, the unit supports 100–120 V AC, 220–240 V AC, and 24 V DC power options.

• Q3: How is redundancy handled in the ANR10D-420/NDEL?
  A3: Redundancy is achieved through the dual-redundant power supply option (-4) and the robust ESB communication protocol.

• Q4: What type of mounting is required for this node unit?
  A4: It is designed for 19-inch rack mounting and secured with M5 × 4 screws.

• Q5: What are the environmental operating limits of this unit?
  A5: The unit is designed for standard industrial process environments, supporting the temperature, humidity, and vibration requirements typical for DCS field devices.

• Q6: How does the ANR10D-420/NDEL handle analog and digital I/O signals?
  A6: The unit interfaces directly with field devices, converting and transmitting both analog and digital signals to the Field Control Unit via the ESB Bus.

• Q7: Are software upgrades or licenses required for node expansion?
  A7: Yes, the /NDEL option provides the necessary software license to enable node expansion functionality.

• Q8: What is the typical maintenance procedure for this unit?
  A8: Routine maintenance involves verifying power supply redundancy, checking signal integrity, and ensuring proper rack installation; no internal component replacement is required under normal operation.
