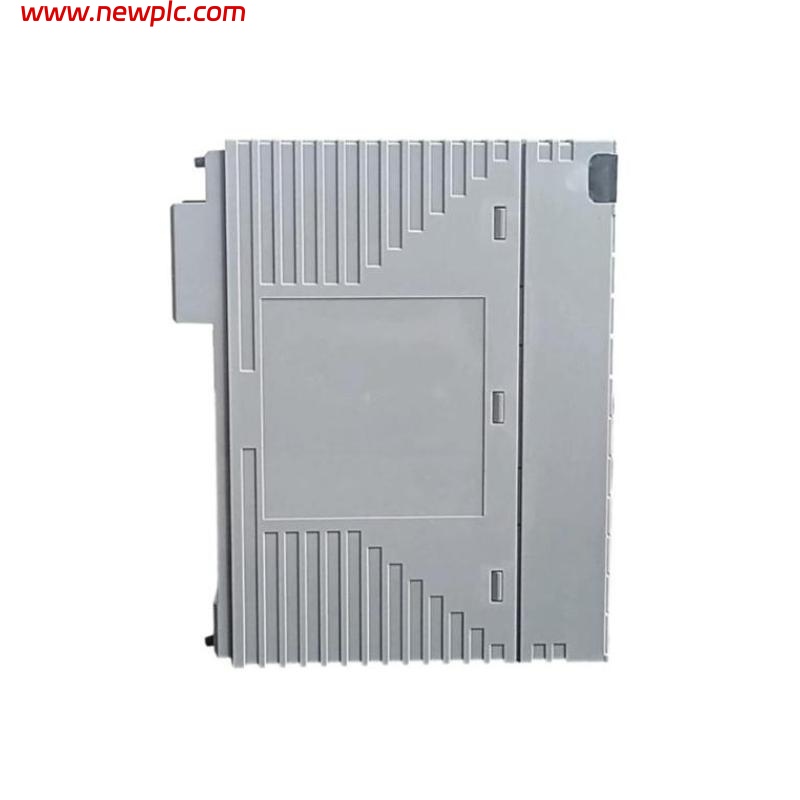

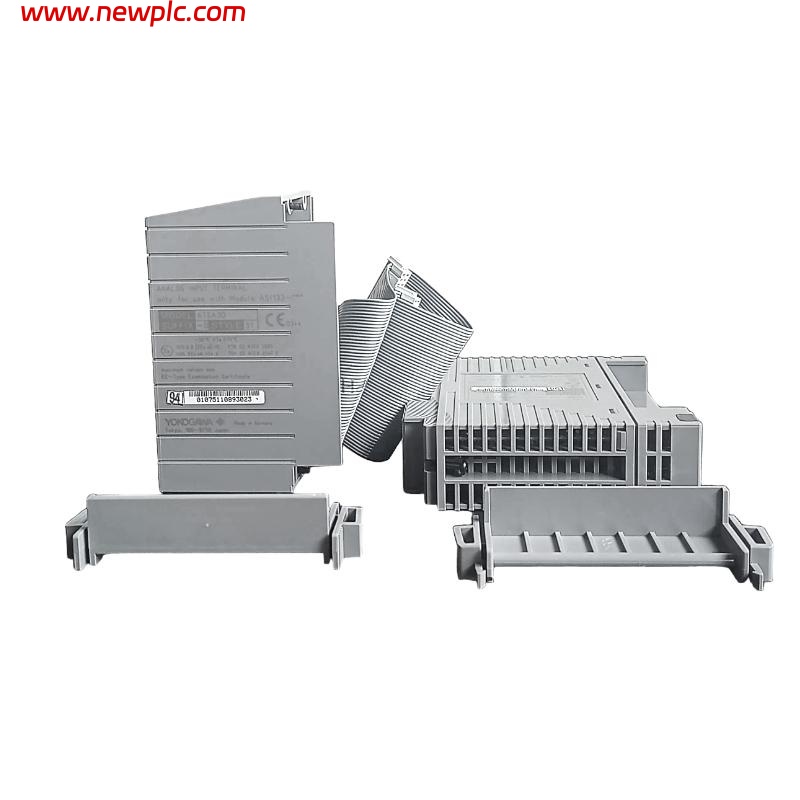

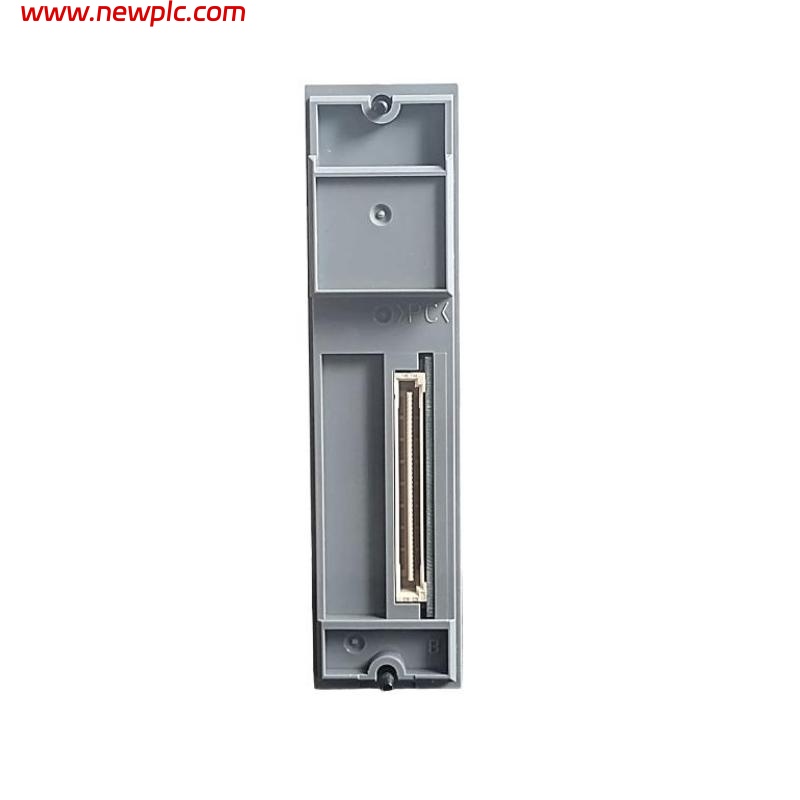

Yokogawa ASI533-H00 Analog Output Module

FAQ

• What is the maximum current output per channel of the ASI533-H00?
  Each channel can output up to 23 mA, while standard operation is 4–20 mA.

• Are the analog output channels isolated?
  Yes, all eight channels are fully isolated to prevent signal interference.

• What is the typical response time for output changes?
  The step response time is 100 ms.

• What is the operating temperature range for this module?
  The module operates reliably from -10°C to 55°C.

• Can the ASI533-H00 handle HART communication signals?
  Yes, HART communication is supported for integration with control systems.

• What is the allowable load resistance for each output channel?
  Up to 750 Ω at 20 mA and 600 Ω at 23 mA.

• Is the module suitable for panel or DIN rail mounting?
  Yes, it supports both DIN rail and panel mounting options.

• What is the accuracy of the analog output signals?
  The output accuracy is ±48 µA.

Analog Output Module ASI533 ASI533-H00 Yokogawa
