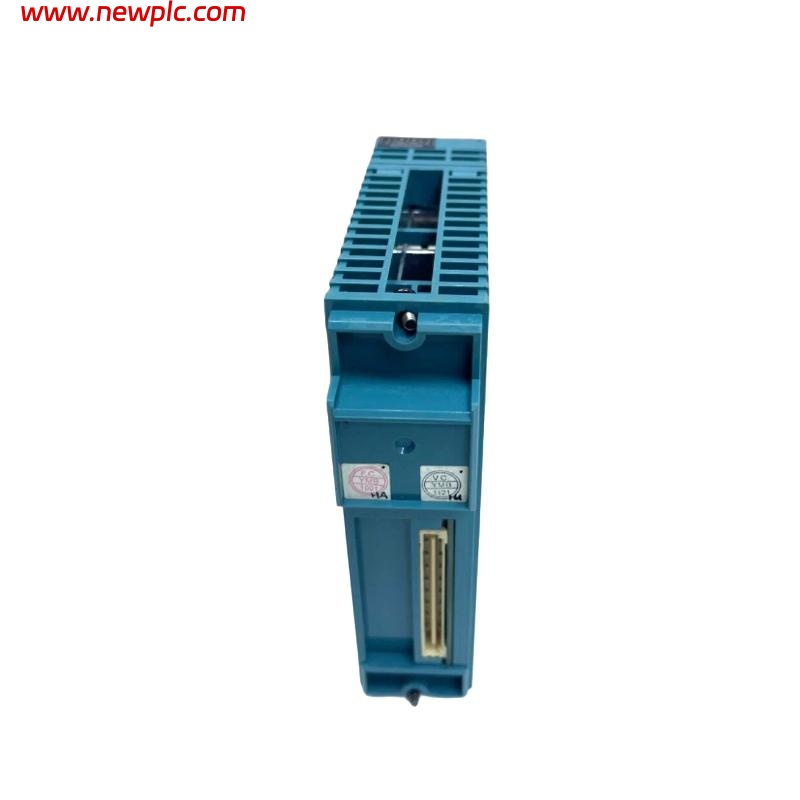

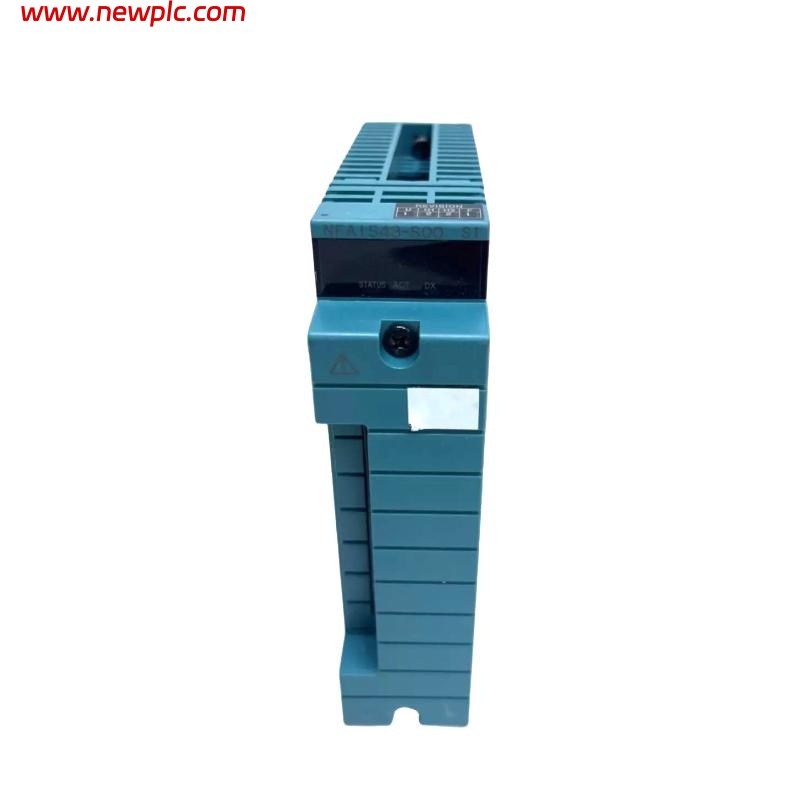

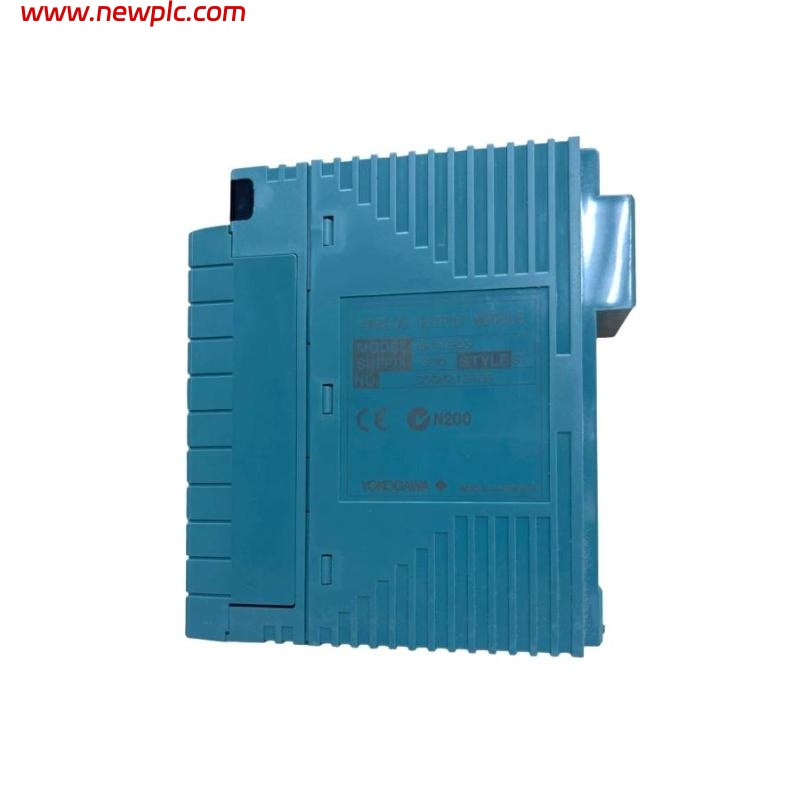

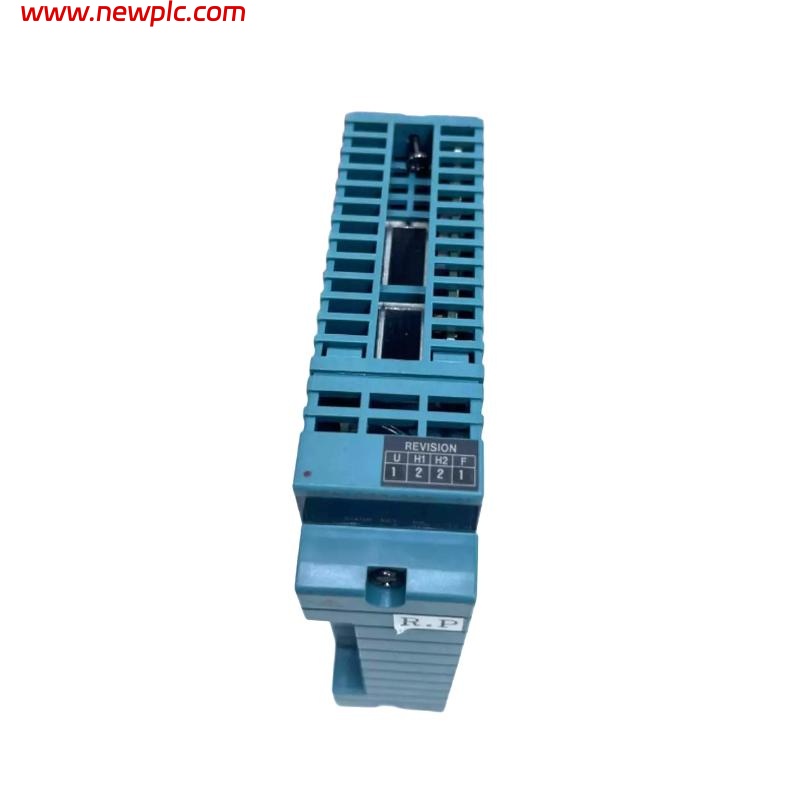

Yokogawa NFAI543-H50 S1 Analog Output Module

FAQ

Q1: What is the main function of NFAI543-H50 S1?
It provides high-precision analog current output for controlling and monitoring process variables.

Q2: How many channels does the module have?
The module has 4 analog output channels.

Q3: What type of output does it provide?
It supports 4–20 mA or 0–20 mA current output.

Q4: What is the load capacity of the module?
It can drive loads up to 500 Ω.

Q5: What is the output accuracy?
Accuracy is ±0.1% FS for precise control.

Q6: What is the response time?
Response time is ≤ 50 ms.

Q7: What is the operating temperature range?
Operating temperature is 0 to 55 ℃, storage temperature is -20 to 70 ℃.

Q8: What are the dimensions and weight of the module?
Dimensions are 130 x 107.5 x 32.8 mm, and weight is 0.4 kg.

Analog Output Module NFAI543-H50 S1 Yokogawa
