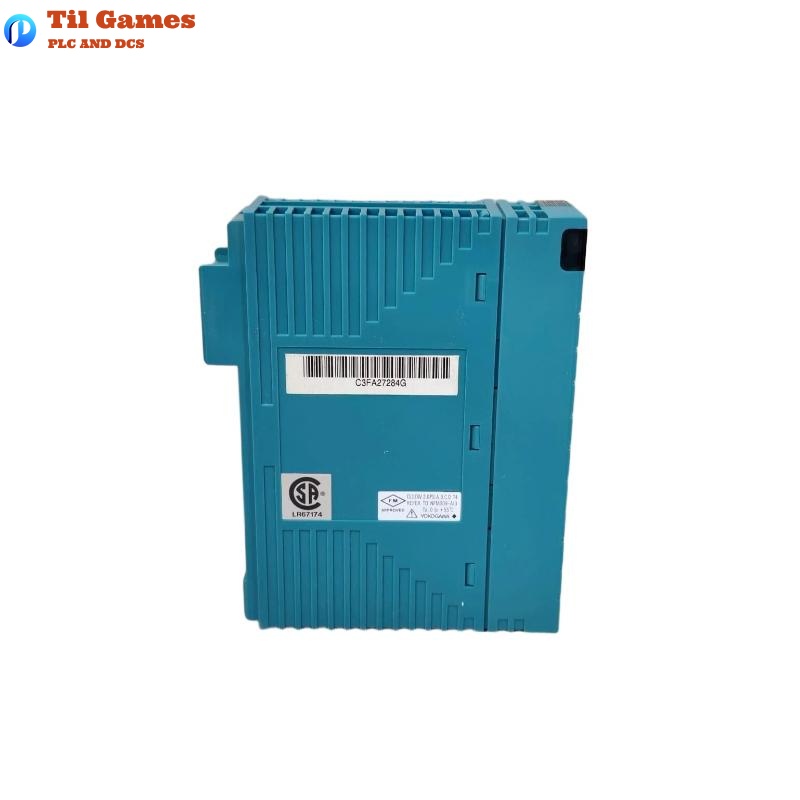

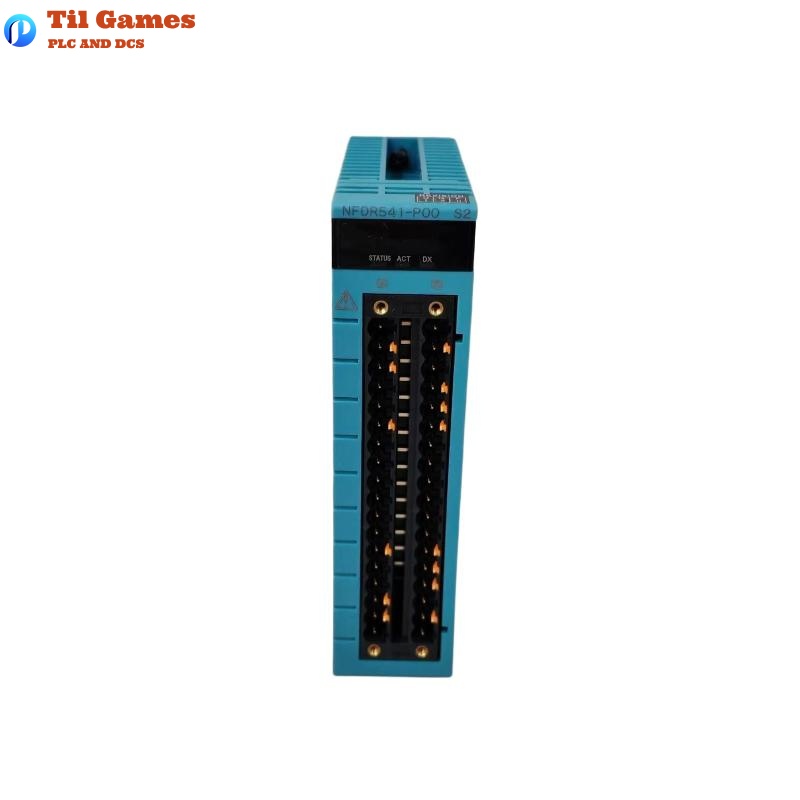

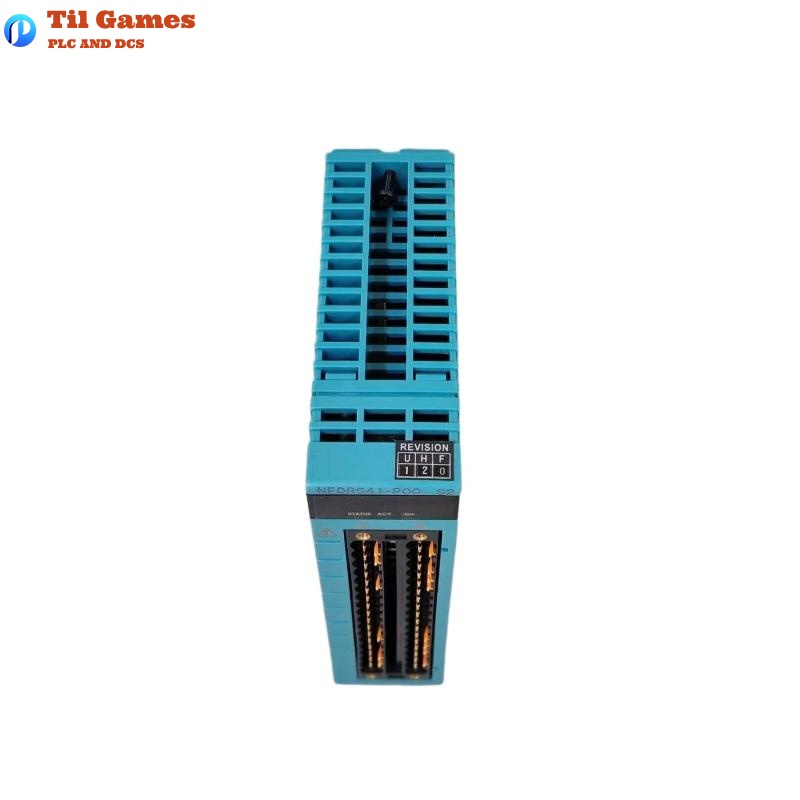

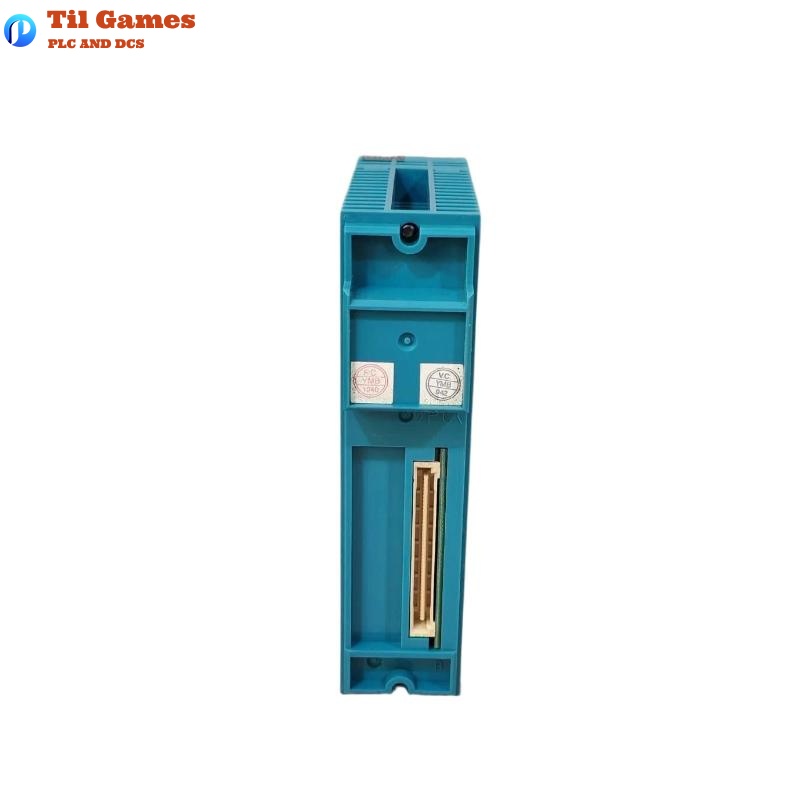

Yokogawa NFDR541-P00 Relay Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the NFDR541-P00 support?
A1: It supports 16 relay output channels.

Q2: What is the maximum load current per channel?
A2: For resistive loads, up to 2.0 A (at 24 V DC or 100~220 V AC); for inductive loads, up to 0.6 A (24 V DC).

Q3: What fallback functions are available?
A3: The module offers HOLD (maintain output), OFF (reset output), and NO (no action) modes.

Q4: Does the module have electrical isolation?
A4: Yes, it provides 2000 V AC isolation between output and system for 1 minute.

Q5: Can the NFDR541-P00 handle AC output?
A5: Yes, it supports 100 to 240 V AC applications.

Q6: Is the NFDR541-P00 RoHS compliant?
A6: No, the P00 model is not RoHS compliant. For RoHS-compliant models, choose NFDR541-T00.

Q7: Can inductive loads be used?
A7: Yes, but max current varies by voltage. Diodes are recommended to suppress back EMF.

Q8: What are the module dimensions and weight?
A8: The size is 130 x 111.5 x 32.8 mm, and the weight is 0.3 kg. It uses pressure clamp terminals.

NFDR541-P00 Relay Output Module Yokogawa
