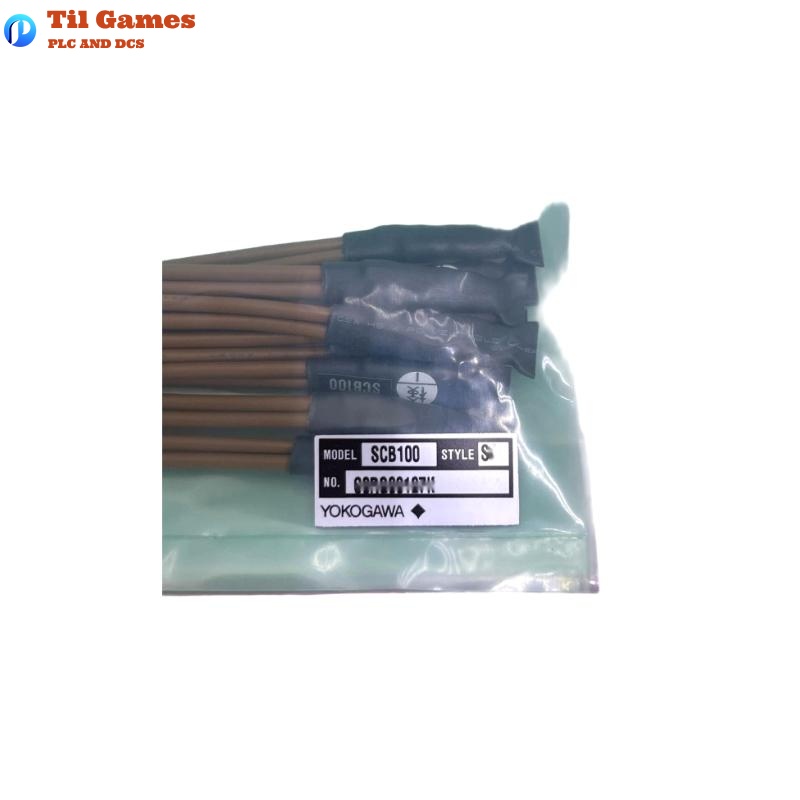

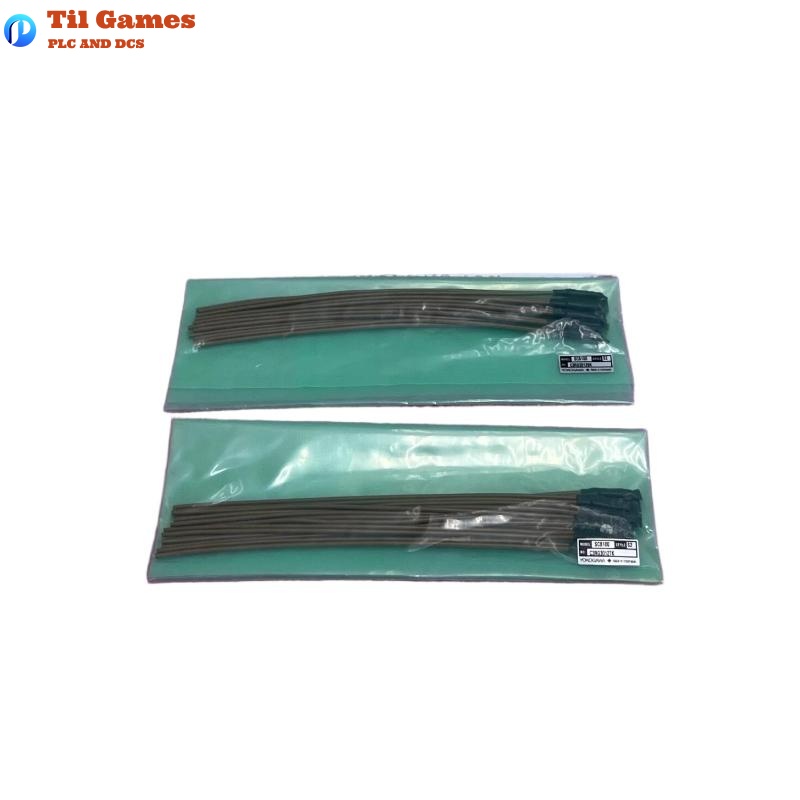

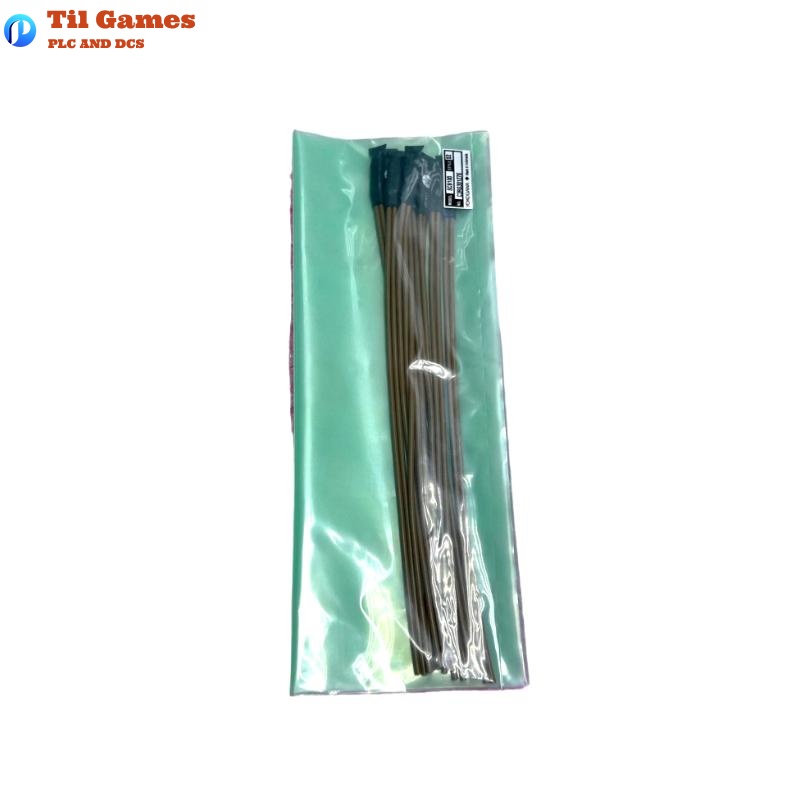

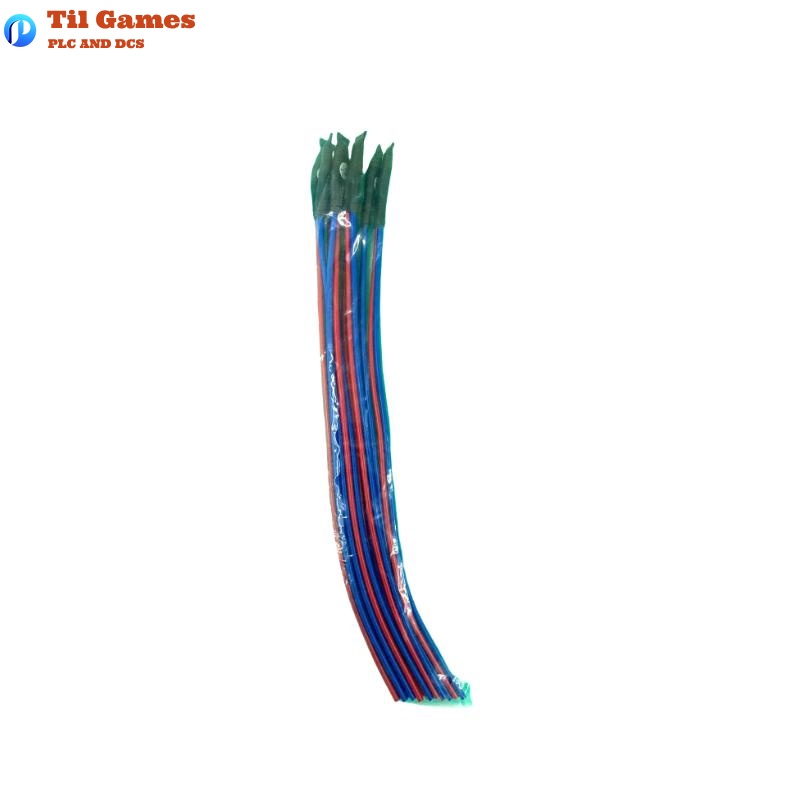

Yokogawa SCB100-S0 Wiring Diagnosis Element

Frequently Asked Questions (FAQ)

Q1: What is the main function of the SCB100?
A1: It detects open circuit faults when the input signal from field devices is OFF under normal conditions.

Q2: How should the SCB100 be connected?
A2: It should be wired in parallel with the contact output of field equipment and the SDV144 input channel.

Q3: What signal state is the SCB100 designed for?
A3: It is designed for applications where the input signal is normally OFF during regular operation.

Q4: Can the SCB100 detect short circuits?
A4: No, it cannot. Use the SCB110 for short circuit detection.

Q5: Can SCB100 and SCB110 be used together?
A5: Yes, use SCB100 in parallel and SCB110 in series to detect both open and short circuit faults.

Q6: How many wires does the SCB100 have?
A6: Each unit includes 8 wires, suitable for up to 8 input channels.

Q7: Can SCB100 be used in hazardous areas?
A7: Not directly. Additional protective design is required for use in explosive environments.

Q8: Does SCB100 have protective housing?
A8: No, it has a bare wire structure and must be installed with care to avoid physical damage.

SCB100 SCB100-S0 Wiring Diagnosis Element Yokogawa
