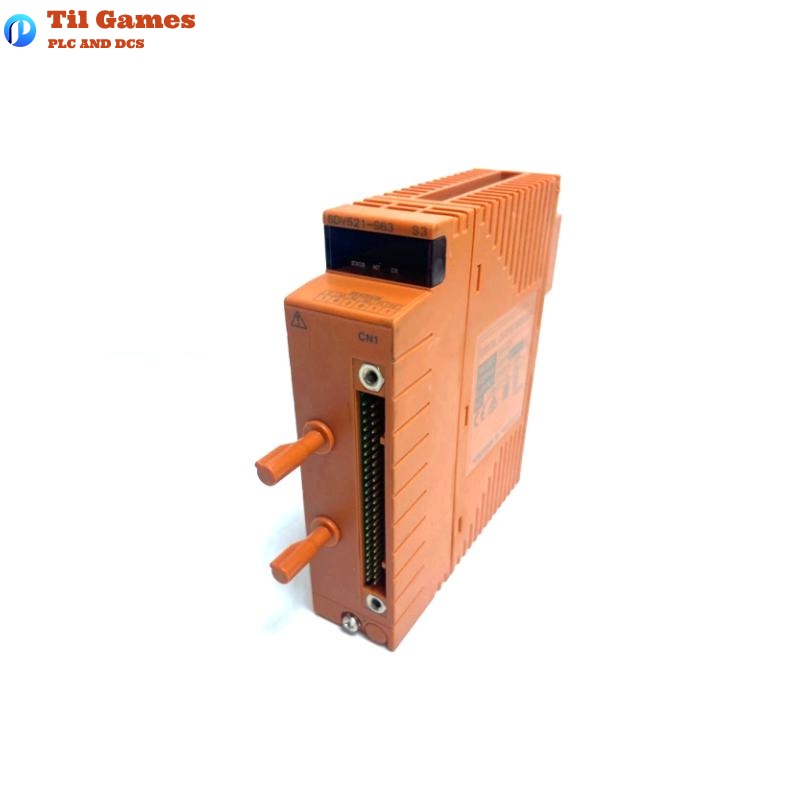

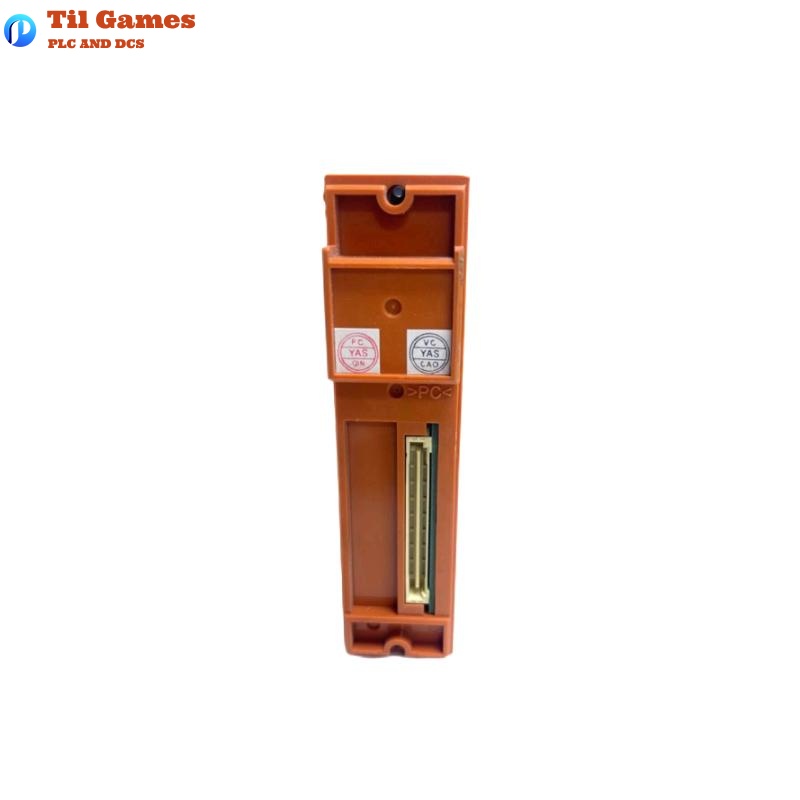

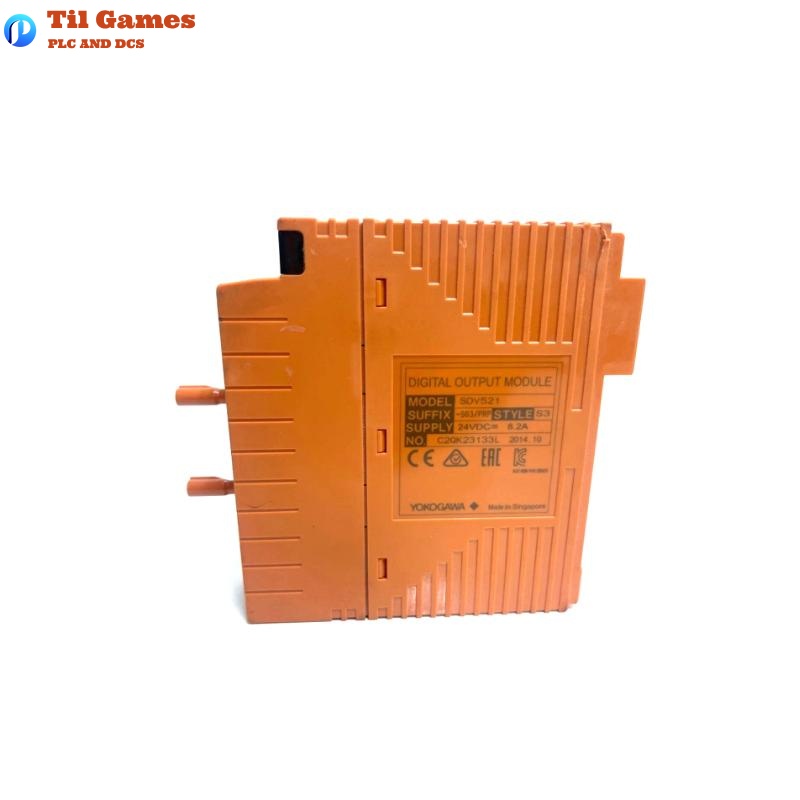

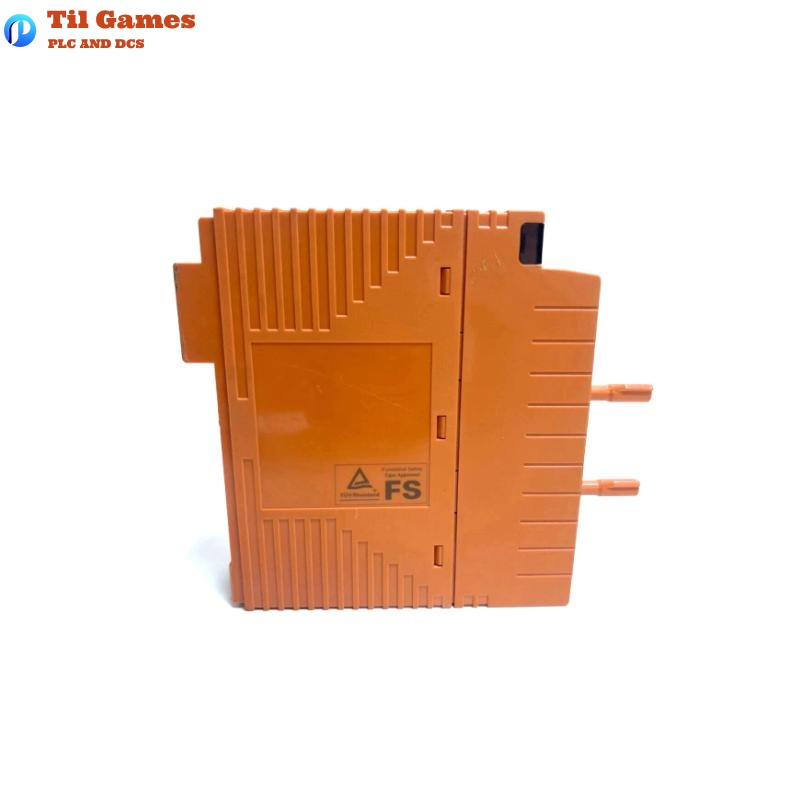

Yokogawa SDV521-S63 Digital Output Module

Frequently Asked Questions (FAQ)

Q1: What is the maximum load current per channel?
A1: Each channel supports up to 2 A, with a total output limit of 8 A.

Q2: Can the module drive filament lamps?
A2: Yes, each output supports up to 1 A for lamp loads and can tolerate inrush currents up to 10 times.

Q3: What is the output voltage?
A3: The module provides 24 V DC output with a voltage drop not exceeding 1 V.

Q4: What is the minimum required load current?
A4: The minimum load current per channel is 100 mA.

Q5: What are the physical dimensions and weight of the module?
A5: It measures 130 x 32.8 x 125.5 mm and weighs approximately 0.36 kg.

Q6: What are the power supply requirements?
A6: The external power supply must be 24 V DC (+20% / -10%) with a minimum current capacity of 8.2 A.

Q7: Is there leakage current when the output is off?
A7: Yes, the maximum leakage current is 1.6 mA.

Q8: Does the module offer channel isolation?
A8: Yes, the SDV521-S63 provides full channel-to-channel and channel-to-system isolation.
